Revolutionizing Machine Vision with COOLENS® Lenses

At Vision Stuttgart 2024, VICO Imaging will showcase its machine vision application with a robotic arm featuring COOLENS® MFA121 and WWT series. Additionally, there will be an automated sorting vision system demonstration featuring our 360° series. This is our first sneak peek of the exposition. Today we will introduce the robotic arm application and 360° view inspection.

Part One – MFA121 & WWT Series in Robotic Arm Application

About the robotic arm application

Industry 4.0 is a new revolution featuring the organic merge of digital technologies and traditional manufacturing. The industrial robotic arm is the major theater of this revolution, for it redefined how manufacturers operate and shaped the future of factory automation.

The robotic arm acts as the bridge between physical production and digital information. These arms are “armed” with revolutionary sensors and software, making sure they collaborate seamlessly with their human co-workers, other compatible systems, or even other robotic arms. Compared to their traditional counterparts, they bring unparalleled precision, efficiency, flexibility, and maximum repetition capability. These properties enable robotic arms to perform complex and delicate operation tasks perfectly, adaptable to various complex manufacturing conditions and requirements.

Robotic arms are widely used in many industries, including but not limited to automobile manufacturing, electronic manufacturing, food processing, etc. With the advancement of technology and the expansion of application scenarios, robotic arms have gradually expanded to medical, agricultural, aerospace, and other fields.

In a word, robotic arms play a vital role in industrial automation, because they not only improve production efficiency and product quality, and reduce labor costs, but also improve manufacturing conditions, promote industrial upgrading, and enhance corporate competitiveness.

The role of FA lens in robotic arm application

In the industrial automation process of assisting robotic arms, it is crucial to choose a good FA lens to obtain the best performance and precise control.

COOLENS’s MFA and WWT series surpass other brands with excellent resolution, contrast, and relative illumination. As a unique FA lens, the WWT series has a fixed aperture, fixed focal length, and fixed working distance. This not only provides excellent image quality but also gives it outstanding anti-vibration performance. Overall, these two series are highly suitable for sorting with robotic arms.

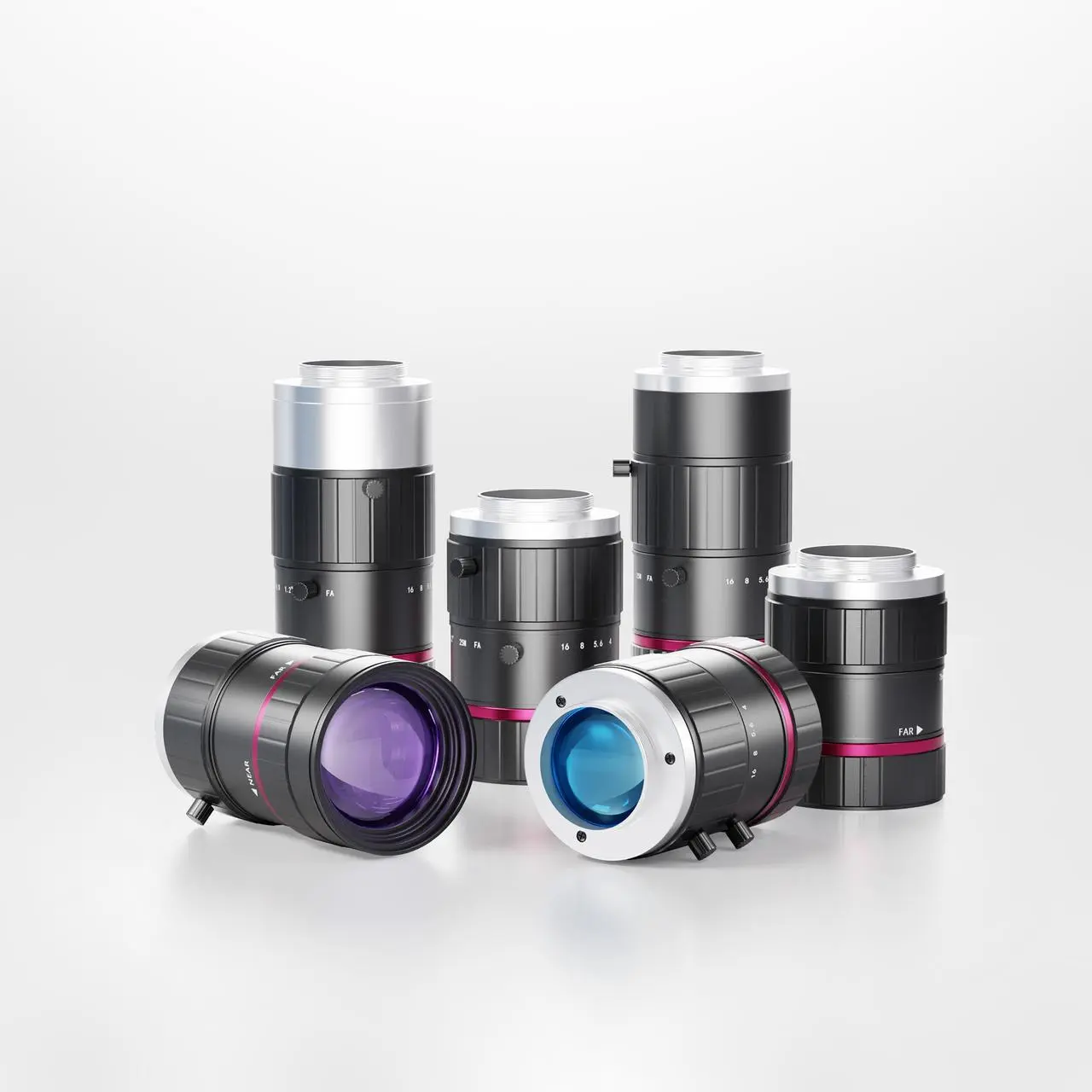

COOLENS® MFA121 series

The following is the main information of the MFA121 series.

















The MFA121 series provides ultra-high resolution and uniformity, supporting cameras up to 25MP. Available in various long focal lengths (18mm-75mm), these lenses are versatile and perfect for use with robotic arms in various machinery sorting tasks.

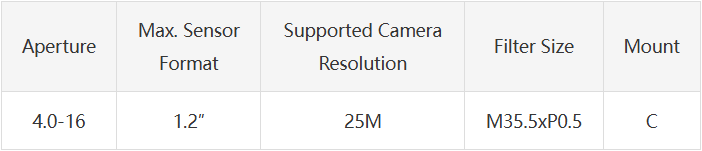

Common Specifications
Common Specifications

Overview of the MFA121 series:

  • Exceptional features: high resolution, superior contrast, and up to 90% relative illumination.
  • Suitable applications: sorting tasks with robotic arms in factory automation.
  • Variable aperture, excellent uniformity.
  • Versatility in focal lengths: 18mm to 75mm focal length, catering to various sorting and machinery tasks.

COOLENS® WWT series

WWT series stands out with its unique feature of fixed aperture, fixed focal length, and fixed WD, setting them apart from traditional FA lenses. This design ensures consistency, making them reliable in challenging environments. Additionally, they excel in image quality within specified parameters and are easy to install and use, providing efficiency in industrial applications.

Overview of the WWT series:

  • Unique features: fixed aperture, fixed focal length, fixed working distance (WD)
  • Compatible with sensor sizes of 1/1.8″, 2/3″, 1.2″
  • Consistent performance in challenging environments
  • Ease of installation and use, enhancing operational efficiency

Part Two – COOLENS® 360° View Series

COOLENS® lenses for 360° outer wall inspection

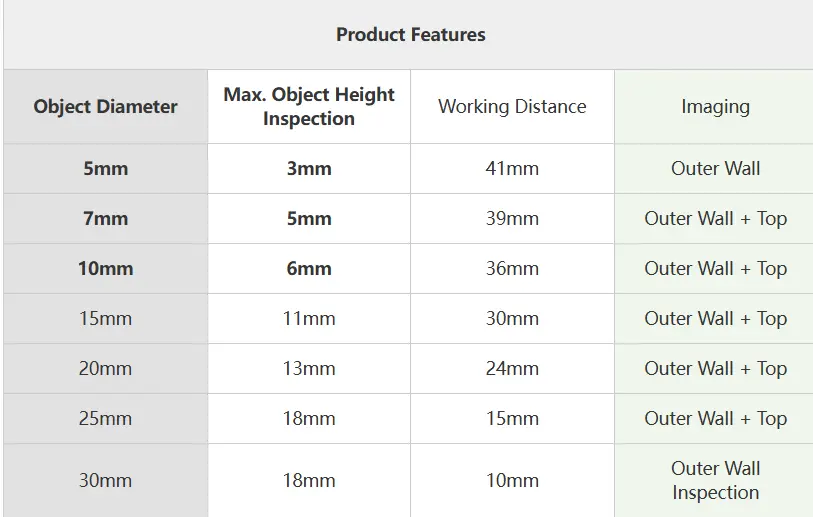

Here is the overview of our innovative catadioptric lens:

  • Supports 2/3″ sensor cameras
  • 360° top and side view imaging with a single lens
  • Inspection diameters from 5mm-30mm and heights from 3mm-18mm

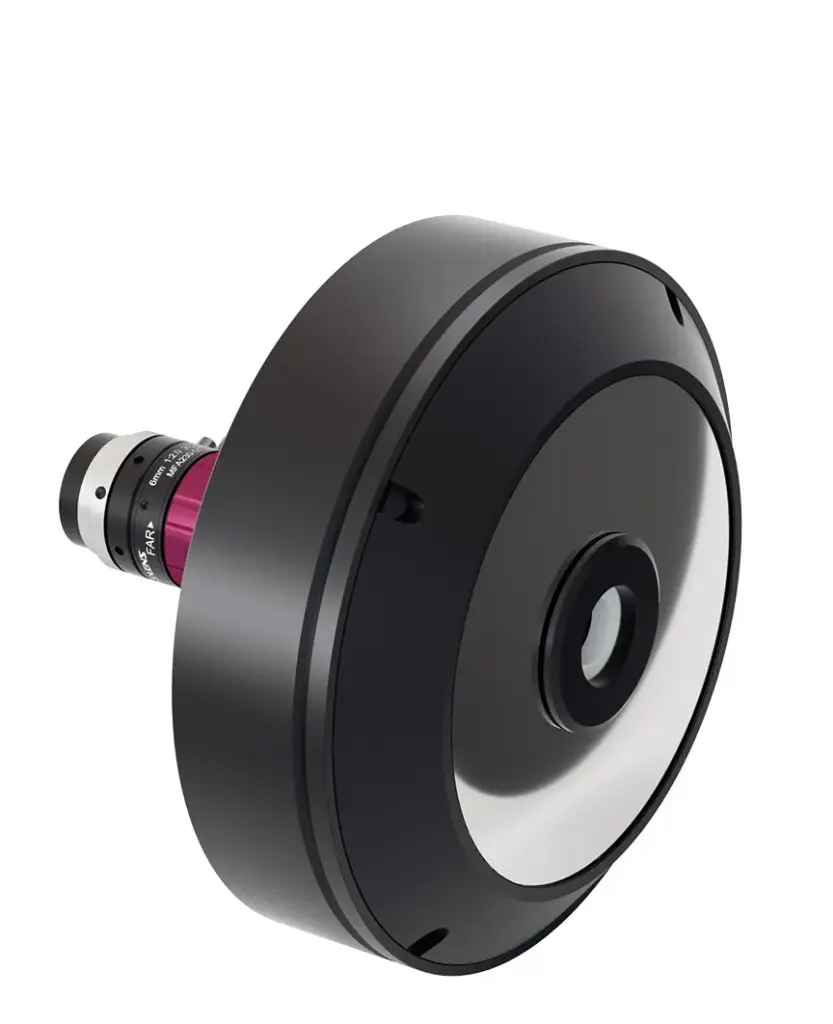

360° Outer Inspection Lens
360° Outer Inspection Lens

This is our innovative catadioptric lens, designed for 360° simultaneous imaging of small objects from both side and top views. Using mirror reflection, this compact lens captures high-resolution images of all surfaces, seamlessly integrated into any optical imaging system. It’s the perfect solution for inspecting visual defects in product appearance, ensuring exceptional results with one shot.

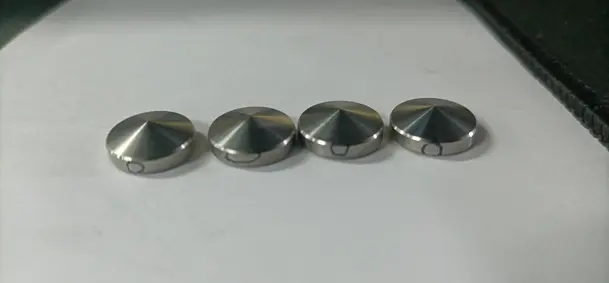

End plug
End plug

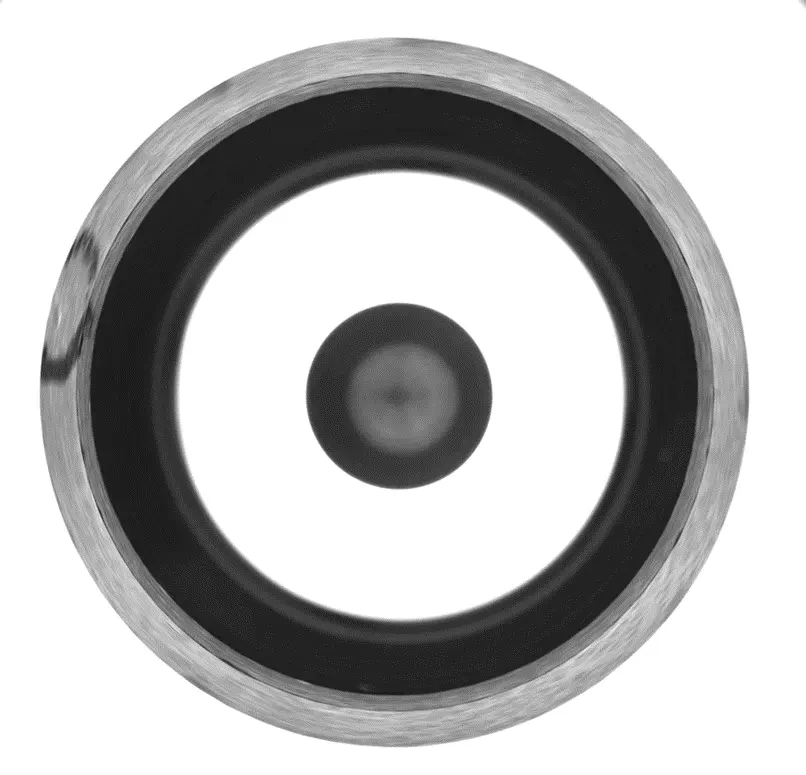

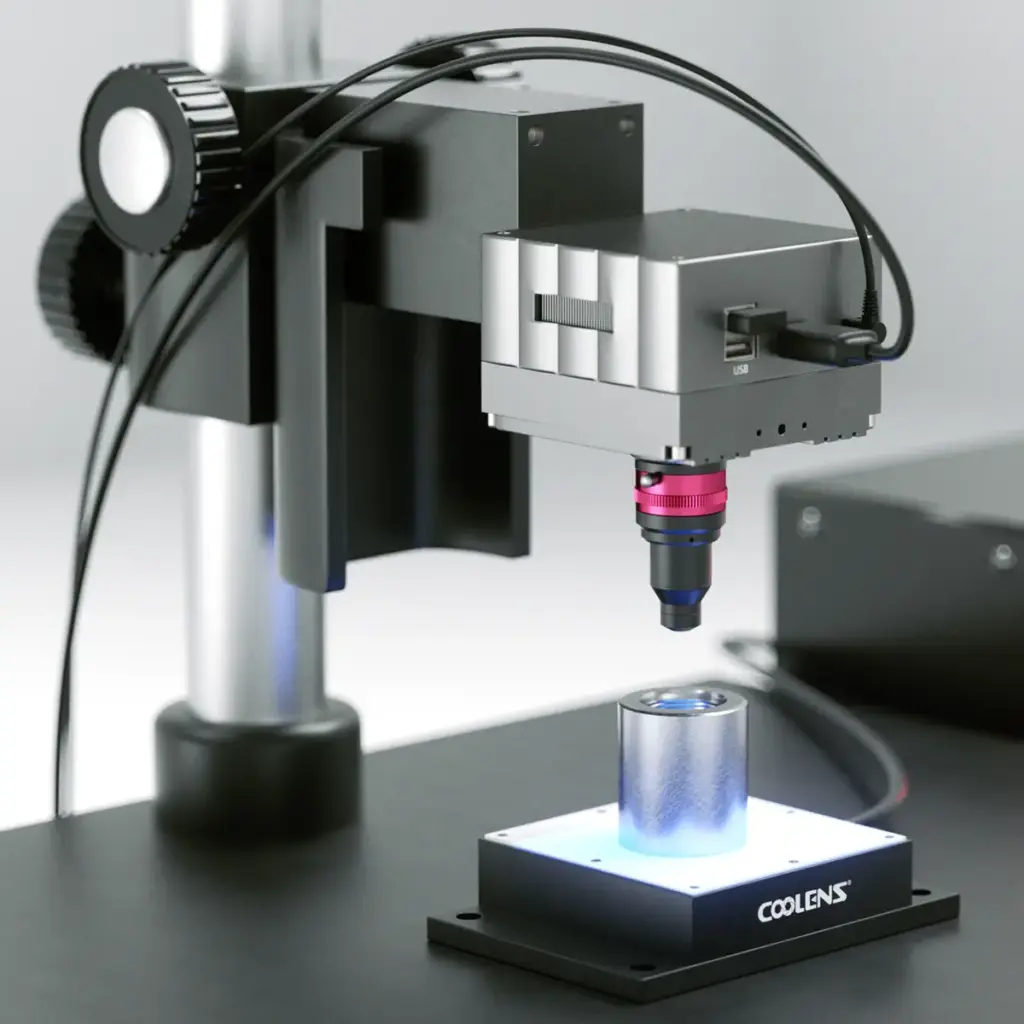

Illuminated with a blue ring light
Illuminated with a blue ring light

COOLENS® lenses for 360° inner wall inspection

Our lens is designed to simultaneously image both the inner walls and the bottom of objects, with different shapes such as threaded holes, cylinders, holes, and bottles. COOLENS® hole inspection lenses for 360° inside view can be widely used in food, medicine, automotive, and other industries, perfect for medical bottles, bottle caps, screw caps, and mechanical parts.

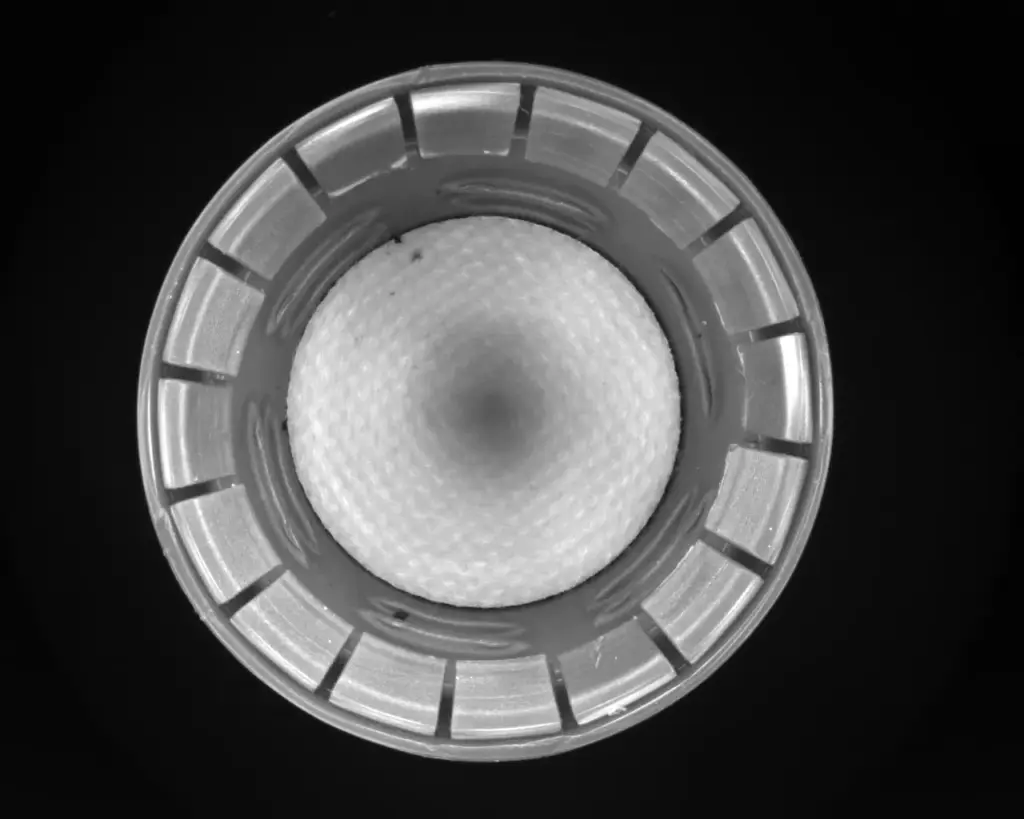

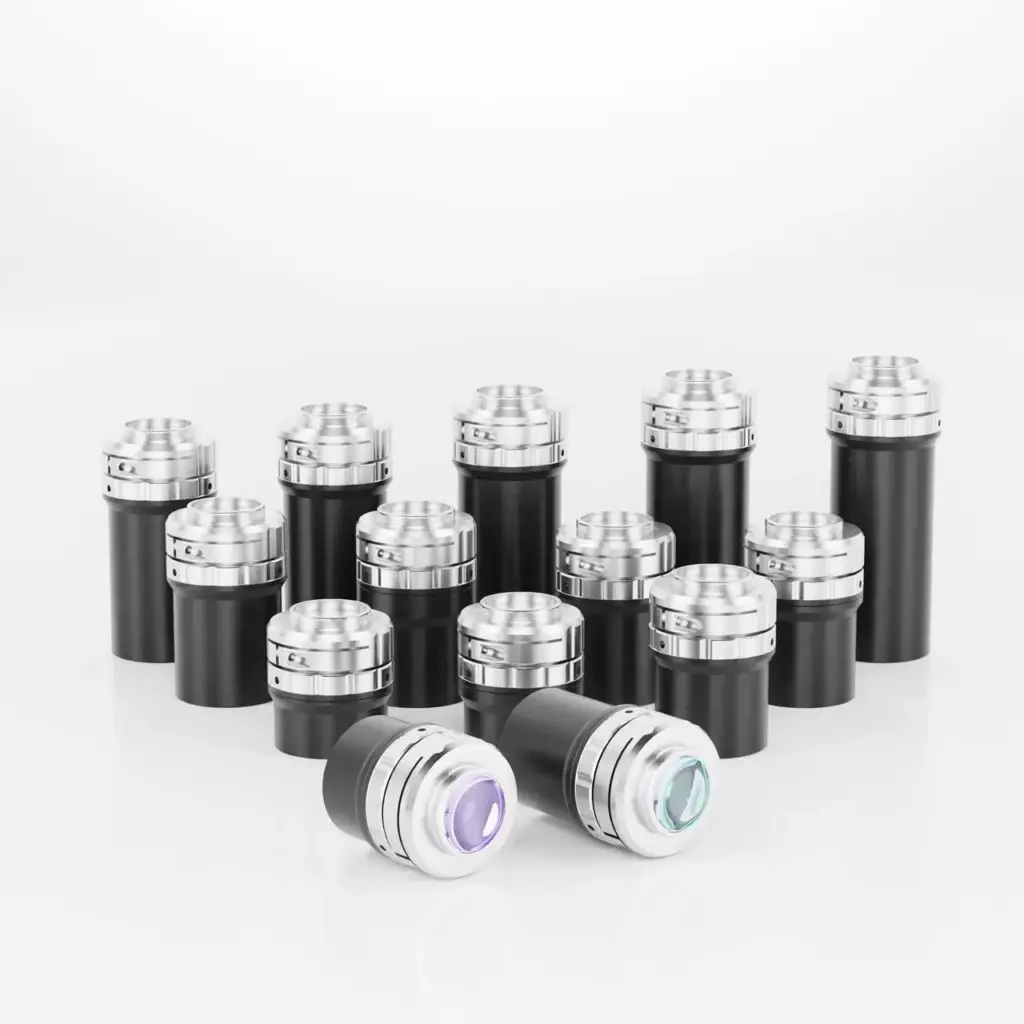

COOLENS® 360° Inner Wall Inspection Lenses
COOLENS® 360° Inner Wall Inspection Lenses

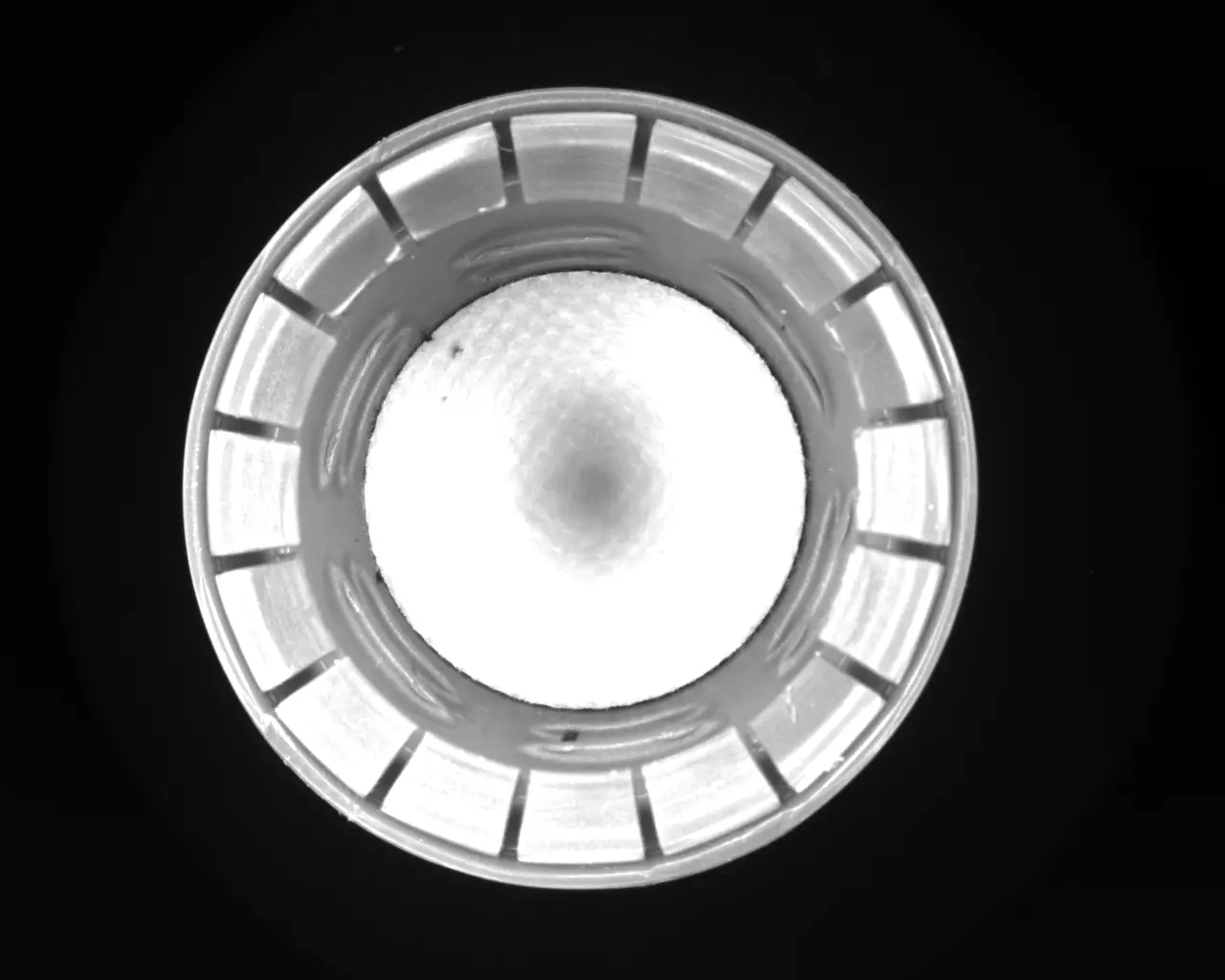

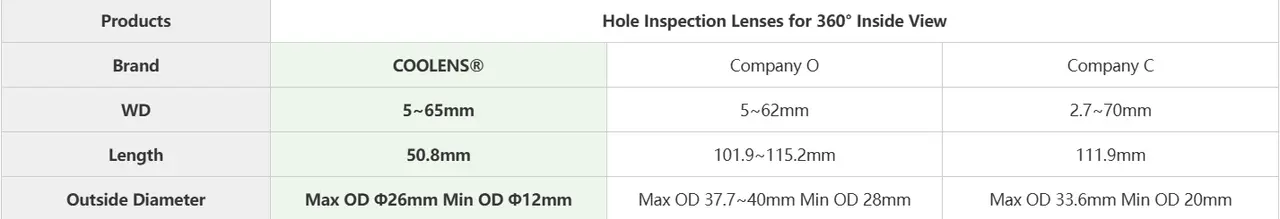

One Famous Brand
One Famous Brand

Compared with lenses of other brands, our lenses image the bottom and inner wall with higher resolution and a larger DOF.

Conclusion

As we wrap up our sneak peek into what VICO Imaging has in store for Vision Stuttgart 2024, it’s evident that we are not just participating in the event; we are set to be one of its highlights. Our innovative products are a beacon of progress in the machine vision field, signaling a bright and advanced future. So, please come to visit VICO Imaging’s booth (8A52) and witness the future of machine vision technology firsthand. We would appreciate it if you schedule a more in-depth discussion and reach out to us (sales@vicoimaging.com).
