360° Outer Inspection Lenses | COOLENS®

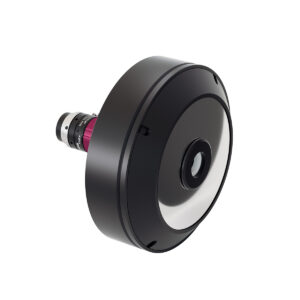

Model NO.    :

PRO230-C270-230-S16
  • 360° top and side view imaging with a single lens.
  • Supports 2/3″ Sensor Cameras.
  • Inspection Diameters from 5~30mm and Heights from 3~18mm.

Wavelength range (nm) 450~650 Diameter(mm) Height(mm) WD(mm)
5 3 41
Working Distance (mm) 41-10 7 5 39
Compatiable with FA lens 16mm 10 6 36
Best Aperture (F/#) 6.5 15 11 30
Max Sensor Size (Φmm) 7.07(2/3″) 20 13 24
Inspect object diameter (mm) 5~30 25 18 15
Mount C 30 18 10

Dimensions



Product Features
Object Diameter Max. Object Height Inspection Working Distance Imaging
5mm 3mm 41mm Outer Wall
7mm 5mm 39mm Outer Wall + Top
10mm 6mm 36mm Outer Wall + Top
15mm 11mm 30mm Outer Wall + Top
20mm 13mm 24mm Outer Wall + Top
25mm 18mm 15mm Outer Wall + Top
30mm 18mm 10mm Outer Wall Inspection
