FOV90 MDR10 Relay Lens | RL1090B15 LONTRY®

Model NO.    :

RLD1090B15

• It is mainly used for focusing 2-4 modules of the same mobile phone at the same time to significantly improve production efficiency
• High resolution
• High revivification

Model NO. FOV angle MDR Aperture Weight Range of simulated distance Distortion Outline dimensions
RLD1090B15 90° 10mm 4mm 0.83kg 400-INFmm <1% Φ116x61.78mm
Structural Dimension Drawing

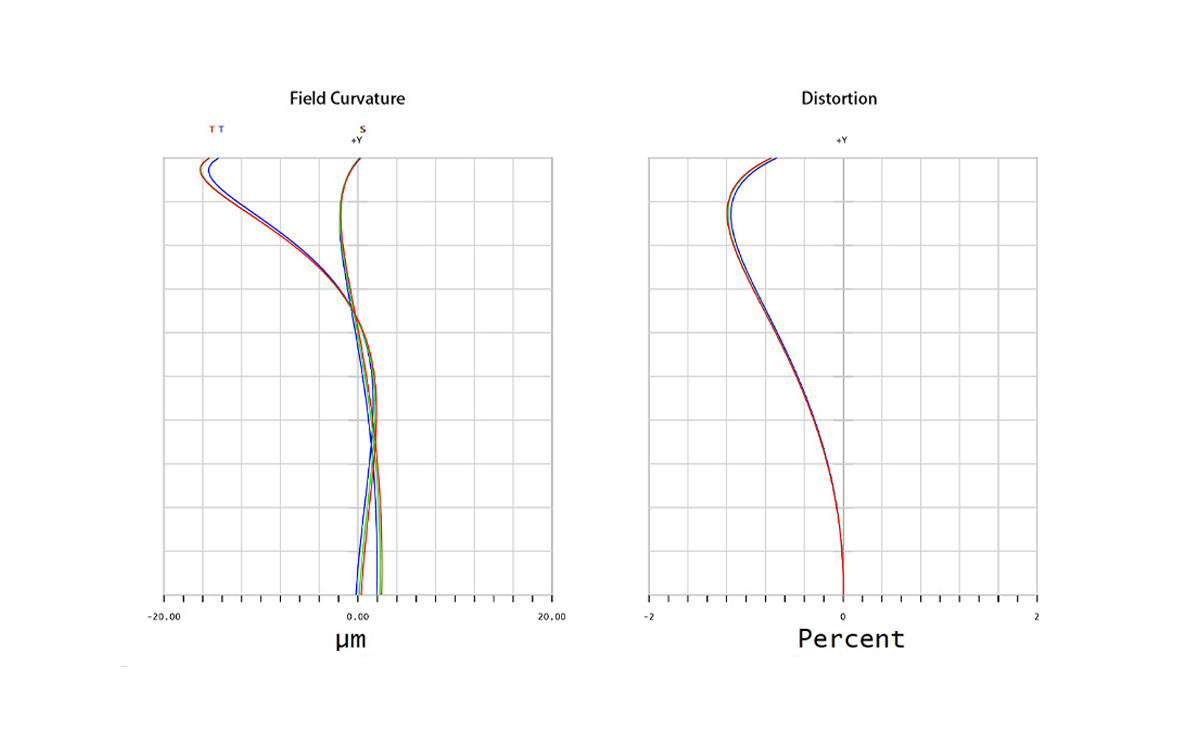

Optical Properties



Structure and Size
WDV (mm) Distance from the camera module to the simulated imaging position WDC (mm) Distance from the relay lens object end to the test card Test card dimensions (LXW)
16:9 4:3
Length (mm) Width (mm) Length (mm) Width (mm)
400 166.98 355.78 200.12 326.56 244.92
1000 256.74 505.86 284.55 464.32 348.24
5,000 344.04 651.94 366.72 598.40 448.80
Infinite distance 374.28 702.58 395.20 644.88 483.66
