35mm 1.2″ Fixed Focal Length Lenses | MFA121 COOLENS®
Model NO. :
MFA121-U35
•Up to 1.2″, C-Mount Lenses
•Up to 25 MegaPixels, 2.74μm Pixel Size Sensors
•Variable Aperture, Excellent Uniformity
•Focal Length 35mm
Model NO. | MFA121-U35 | Focal Length | f=35mm | ||||
Max Diameter(RATIO) | F=4.0~16 | Supported Camera Resolution | 25M | ||||
Angle | H | 1'' | 18.81° | 1.1" | 21.33° | 1.2" | 22° |
V | 14.9° | 16.01° | 19.09° | ||||
D | 23.83° | 26.37° | 28.81° | ||||
Distortion(TV) | <0.1% | Focus Distance(min) | 0.2M | ||||
Flange Back | 17.526mm in air | Back Focus | 19.6mm in air | ||||

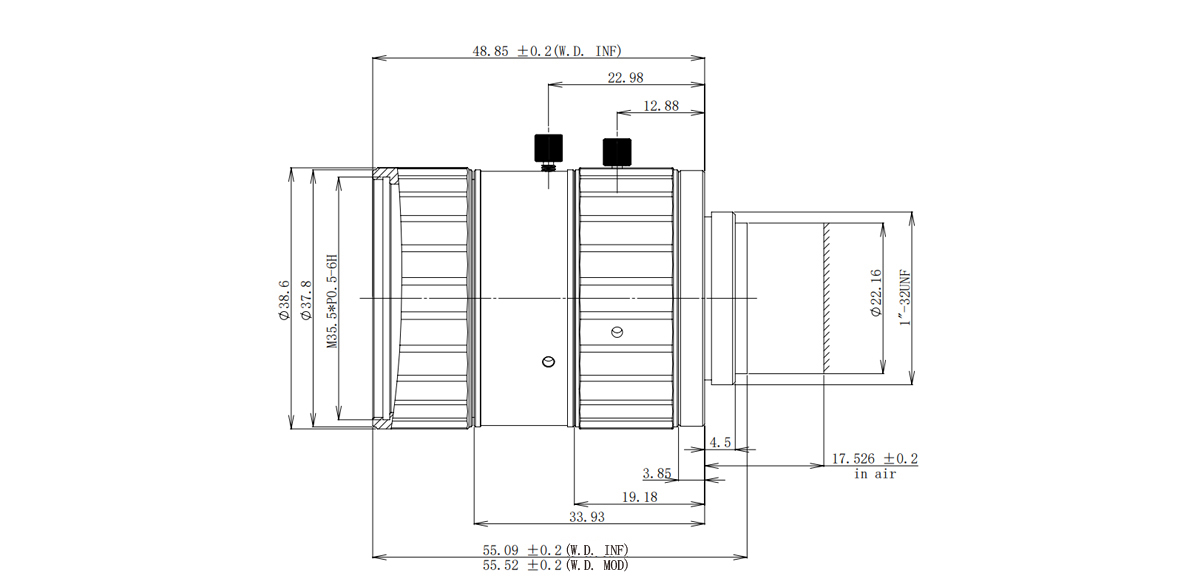

Filter Screw Size | M35.5x0.5 | Dimension | Φ38.6x48.85mm | ||||
Mount | C-Mount | Temperature Range | -10~+50°C | ||||
Flange Back | -20~+60°C |
