50mm 1.2″ Fixed Focal Length Lenses | MFA121 COOLENS®

Model NO.    :

MFA121-U50

•Up to 1.2″, C-Mount Lenses
•Up to 25 MegaPixels, 2.74μm Pixel Size Sensors
•Variable Aperture, Excellent Uniformity
•Focal Length 50mm

Model NO. MFA121-U50 Focal Length f=50mm
Max Diameter(RATIO) F=4.0~16 Supported Camera Resolution 25M
Angle H 1'' 13.0° 1.1" 14.7° 1.2" 14.7°
V 10.3° 11.1° 13.2°
D 16.5° 18.3° 19.7°
Distortion(TV) <0.05% Focus Distance(min) 0.5M
Flange Back 17.526mm in air Back Focus 19.6mm in air
Filter Screw Size M35.5x0.5 Dimension Φ38.6x56.77mm
Mount C-Mount Temperature Range -10~+50°C
Flange Back -20~+60°C

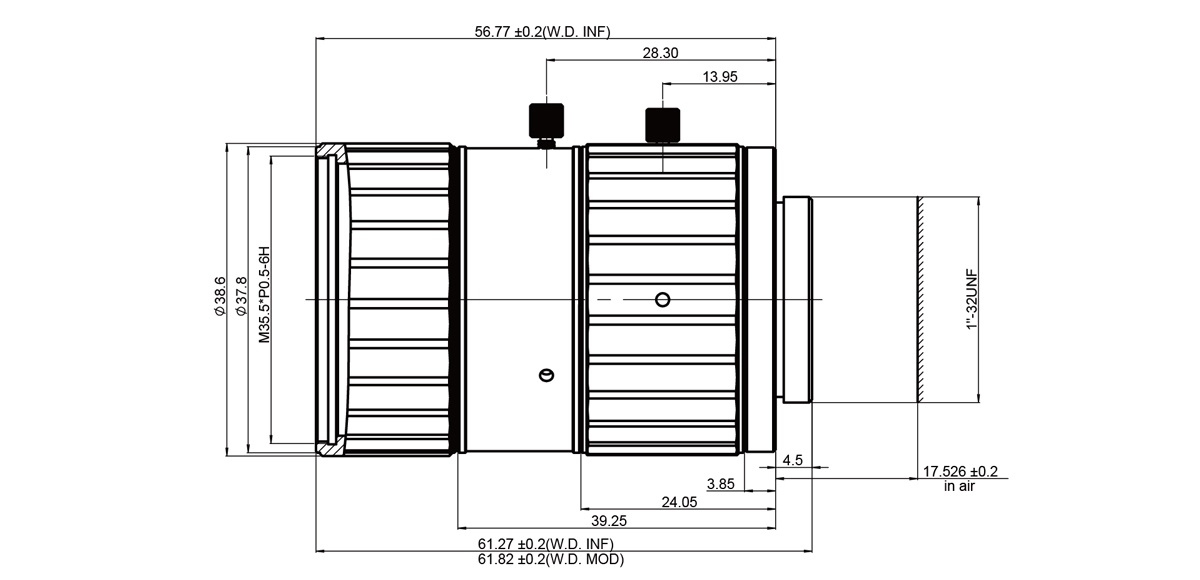

Dimensions
