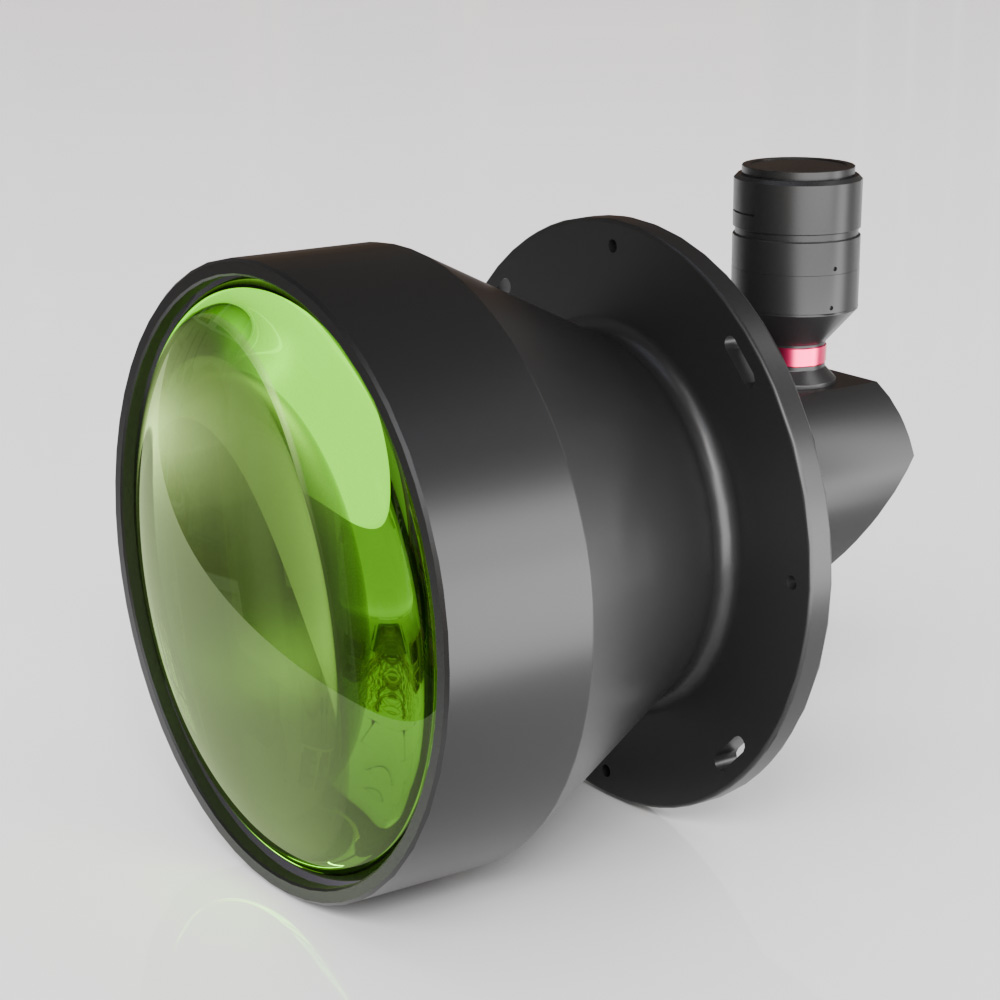

23.6(4/3″)mm 0.091X 90° Matrix Bi-Telecentric Lenses | DTCM430H-258-T90-M58-AL COOLENS®
Model NO. :
DTCM430H-258-T90-M58-AL
Image Circle: 23.6(4/3″)mm
Magnification: 0.091X
FOV: 258mm
WD: 338±5mm
NA: 0.00989
Mount: M58
Type: 90° Matrix Bi-Telecentric Lenses
Model No. | DTCM430H-258-T90-M58-AL | Object Field of View(Φmm) | 258 | ||||
Image Circle Diameter (Φmm) | 23.6(4/3") | Best Aperture(f/#) | 4.6 | ||||
Magnification(x) | 0.091 | MTF30 (lp/mm) | >166 | ||||
Working Distance(mm) | 338±5 | Depth of Field(mm) | ±76.5@F16 | ||||
NA | 0.00989 | Distortion Typical(% max) | <0.1 | ||||
Type | 90° Matrix Bi-Telecentric Lenses | Telecentricity Typical (°max) | <0.1 | ||||
Length of I/O(mm) | 831±5 | ||||||

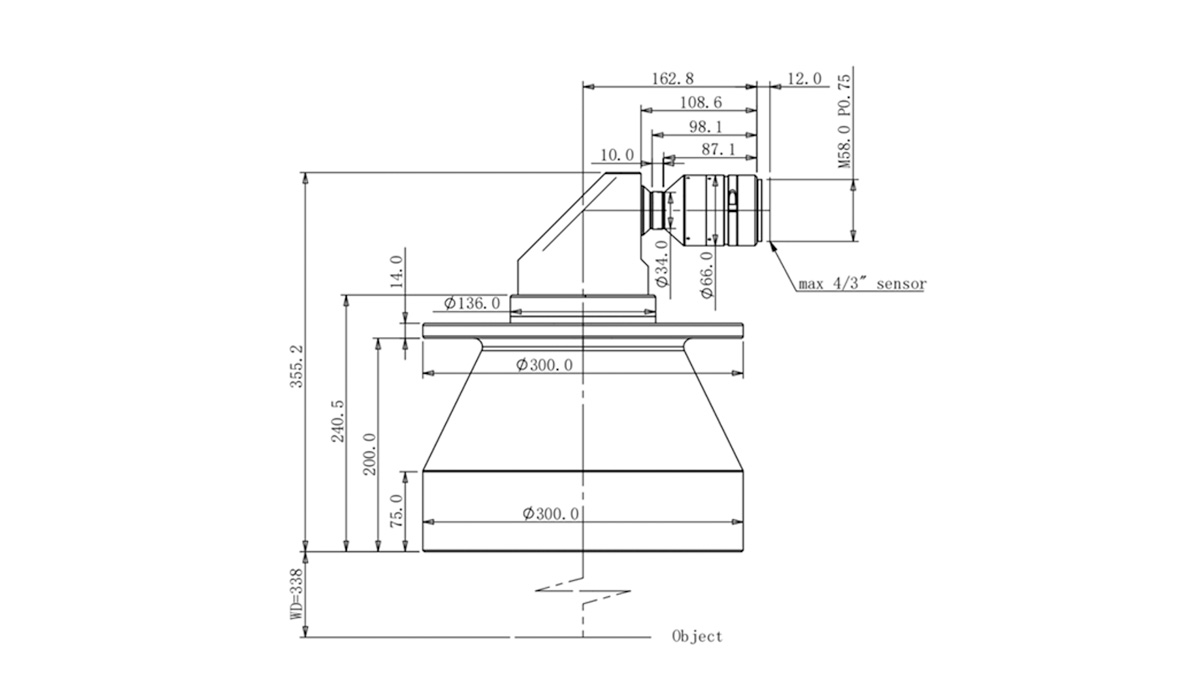

Mechanical Specifications | |||||||
Mount | M58 | ||||||
Length (mm) | 355.2 |
