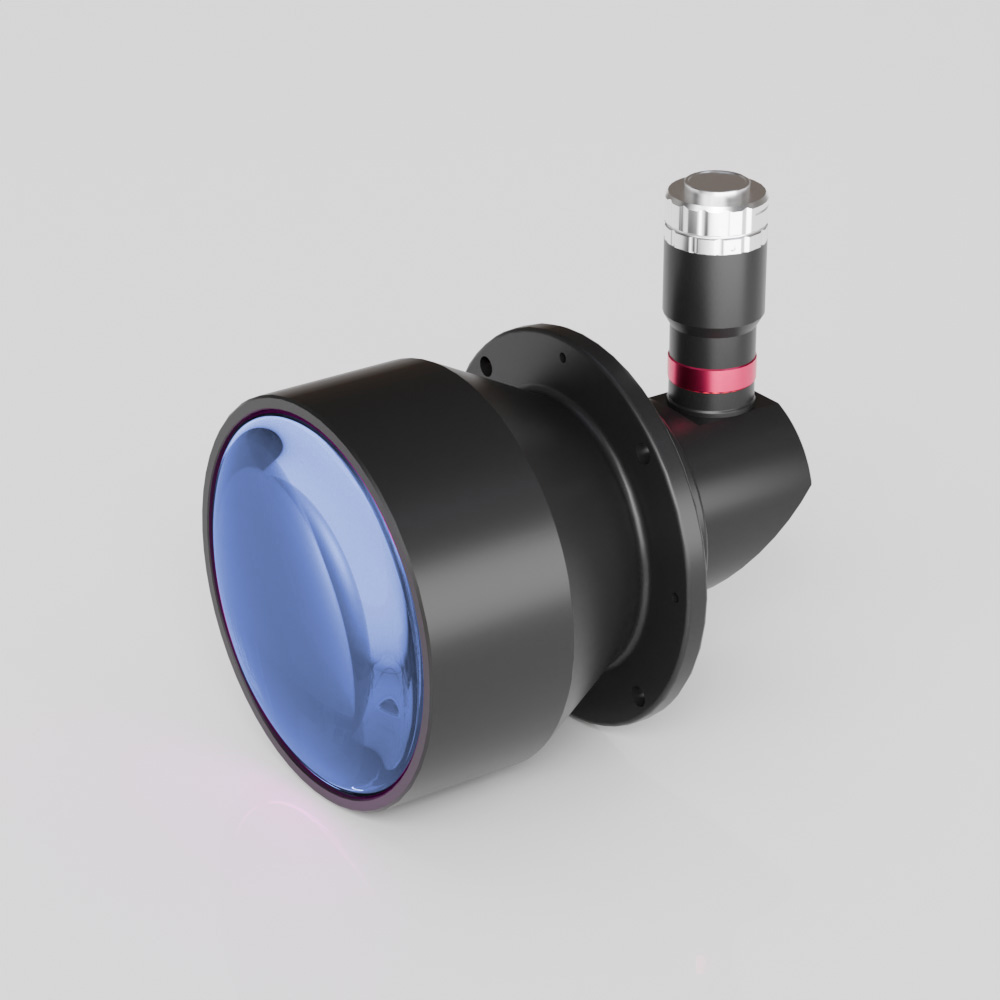

18.4(1.1″)mm 0.153X 90° Matrix Bi-Telecentric Lenses | DTCM111-120H-T90-AL COOLENS®

Model NO.    :

DTCM111-120H-T90-AL

Image Circle: 18.4(1.1″)mm
Magnification: 0.153X
FOV: 120mm
WD: 273±5mm
NA: 0.0124
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM111-120H-T90-AL Object Field of View(Φmm) 120
Image Circle Diameter (Φmm) 18.4(1.1") Best Aperture(f/#) 6.2
Magnification(x) 0.153 MTF30 (lp/mm) >150
Working Distance(mm) 273±5 Depth of Field(mm) ±18.7@F11
NA 0.0124 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 602±5
Mechanical Specifications
Mount C
Length (mm) 208.5

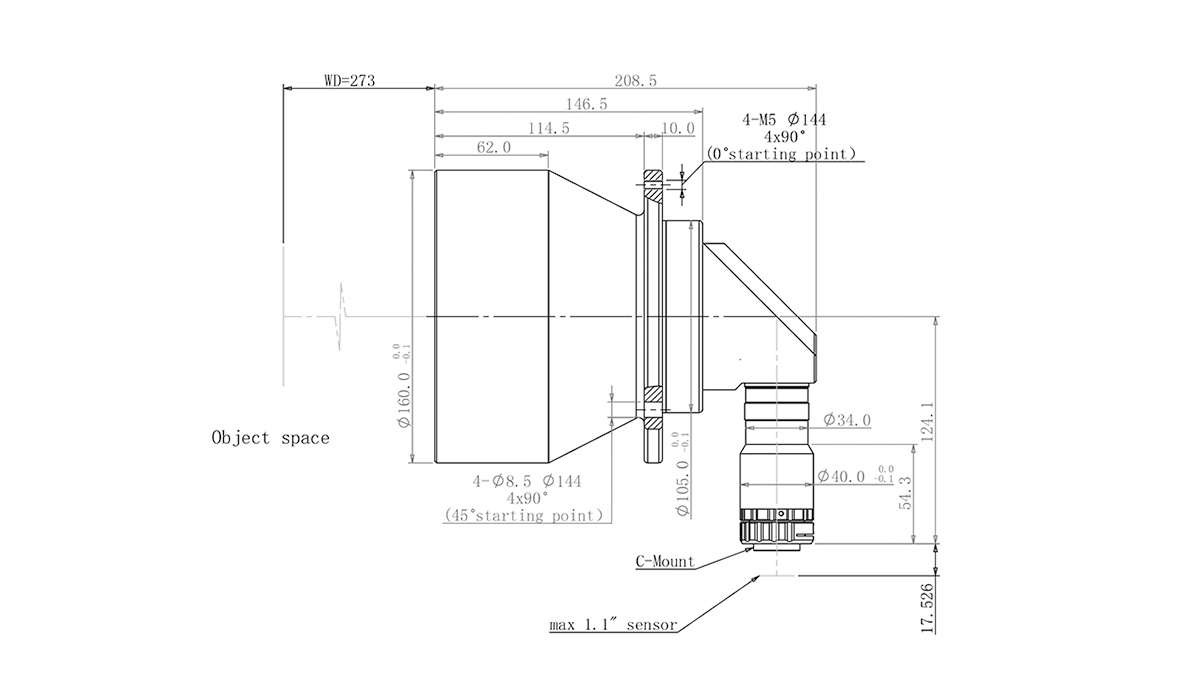

Dimensions
