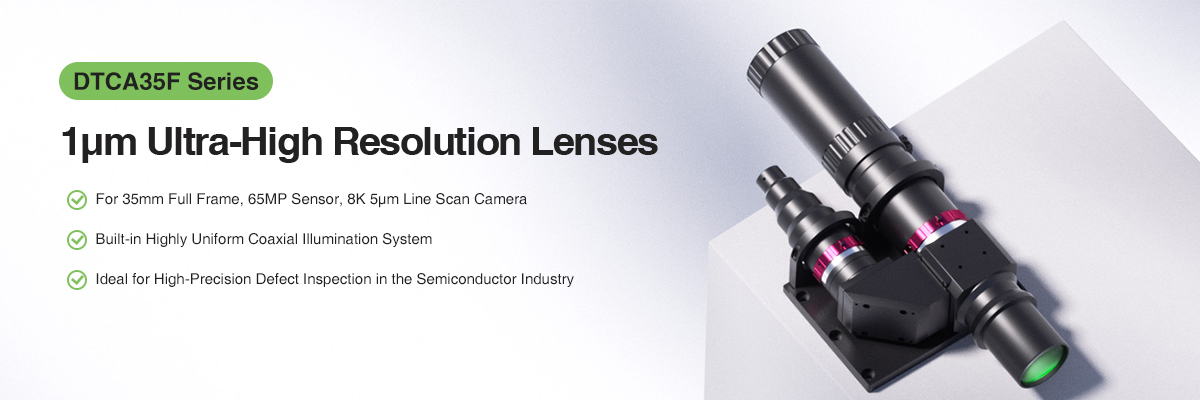

4.0X, 35mm Full Frame M58-Mount Telecentric Lenses with Coaxial Illumination Port, Iris Adjustable, BFL Adjustable | DTCA35F COOLENS®
Model NO. :
•For 35mm Full Frame, 65MP Sensor, 8K 5μm Line Scan Camera
•Built-in Highly Uniform Coaxial Illumination System
•Ideal for High-Precision Defect Inspection in the Semiconductor Industry
•Magnification(x) 4.0
| Model NO. | DTCA35F-11C-G-M58-ALV3 | Magnification(x) | 4.00 | ||||
| Object Field of View (Φmm) | 11 | Working Distance (mm) | 60 | ||||
| Max Sensor Size (Φmm) | 44 | Best Aperture (F/#) | 32 | ||||
| Telecentricity typical (max) (deg) | <0.02 | Distortion typical(max) (%) | <0.02 | ||||
| MTF30 (lp/mm) | 90-32 | Depth of Field (mm) | 0.06-0.16 | ||||
| Length of I/O (mm) | 437±1 | Mount | M58 | ||||
| Length(mm) | 365.4 | Weight(kg) | 3.3 | ||||
| Coaxial Illumination Port Option | Yes | Iris Adjustable | Yes | ||||
| Back Focal Length Adjustable | YES | ||||||
| Field of View (mm × mm) | GMAX3265(29.9x22.4) | 7.5x5.6 | |||||
| CMV50000(36.43x27.62) | 9.1x6.9 | ||||||
Dimensions
Comparison of Parameters
Higher NA, Bigger FOV, Longer WD
| Key Specifications | |||||||||
| Product | COOLENS® | Microscopic Objective | COOLENS® | Microscopic Objective | COOLENS® | ||||
| DTCA-35F | 95mm Series | DTCA-35F | 95mm Series | DTCA-35F | |||||
| Magnification | 7.5 | 7.5 | 5 | 5 | 4 | 3 | 2 | 1 | |
| NA | 0.21 | 0.21 | 0.19 | 0.14 | 0.18 | 0.17 | 0.125 | 0.083 | |
| FOV(φmm) | 5.87 | 3.2 | 8.8 | 4.8 | 11 | 14.67 | 22 | 44 | |
| WD(mm) | 60 | 35 | 60 | 34 | 60 | 60 | 100 | 102 | |
Tips:
Kindly note that the best resolution and maximum depth of field specified in the parameters are not achieved under the same aperture size conditions. As the aperture size becomes smaller (larger aperture values), the hyperfocal distance becomes shorter, and the DoF becomes larger.
Our lenses' best resolution generally corresponds to 50% of the maximum depth of field we specify. The values in the parameters represent separate theoretical optimal values, and the best depth of field value is based on software export reference.
During the purchase, if you have specific requirements for depth of field and best resolution, please let us know, and our laboratory can offer the optimal solution.
By the way, considering the lens aperture is fixed and can not be adjusted after shipping out, it is necessary to confirm the required aperture size before placing the order.
