0.3X, 2/3″ C-Mount Bi-Telecentric Lenses Iris Adjustable with Coaxial Illumination Port | DTCA230 COOLENS®

Model NO.    :

DTCA230-37C

•Bi-Telecentric Lenses, with Coaxial Illumination Port Optional, Iris Adjustable
•Up to 5 MegaPixels, 3.45μm Pixel Size Sensors
•Up to 2/3″, C-Mount Bi-Telecentric Lenses
•Magnification(x) 0.3

Model NO. DTCA230-37C Magnification(x) 0.3
Object Field of View (Φmm) 37.0  Working Distance (mm) 110
Max Sensor Size (Φmm) 11.0(2/3") Best Aperture (F/#) 3.75-Close
Telecentricity typical (max) (deg) <0.1 Distortion typical(max) (%) <0.1
MTF30 (lp/mm) >220 Depth of Field (mm) ±1.7@F3.75
Length of I/O (mm) 273 Mount C
Length(mm) 145.5  Weight(kg) 0.4
Coaxial Illumination Port Option  YES Iris Adjustable  YES
Back Focal Length Adjustable NO
Field of View (mm × mm) 1/1.8" EV76C570 (7.2x5.4) 24.0x18.0
1/1.7" IMX226 (7.5x5.6) 25.0x18.7
2/3" IMX250/264 (8.45x7.1) 28.2x23.7

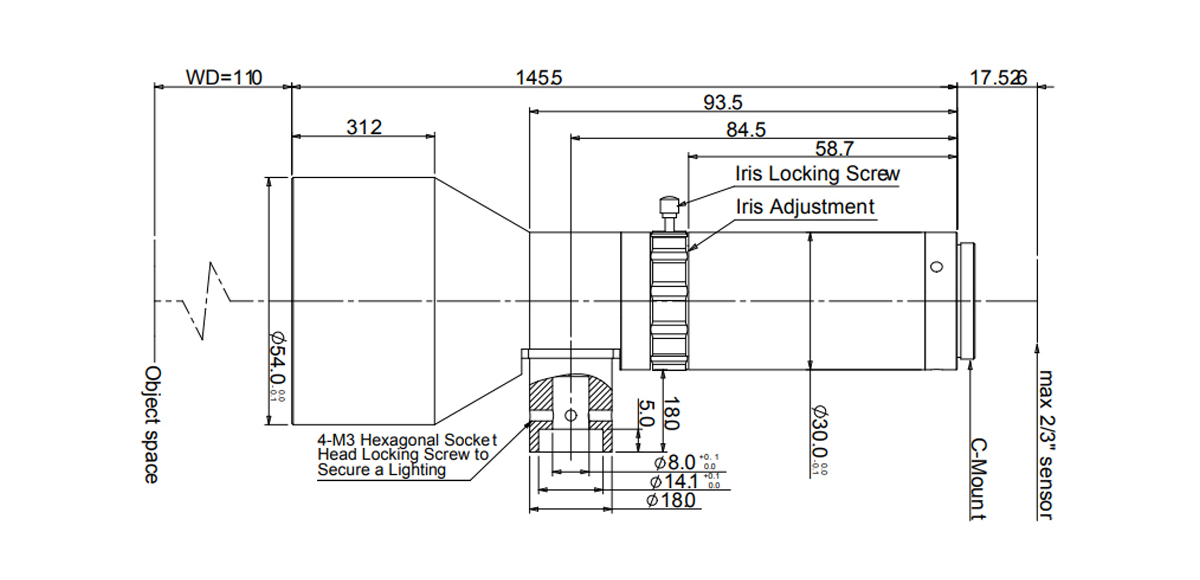

Dimensions

Tips:

Kindly note that the best resolution and maximum depth of field specified in the parameters are not achieved under the same aperture size conditions. As the aperture size becomes smaller (larger aperture values), the hyperfocal distance becomes shorter, and the DoF becomes larger.

Light Transmission

Our lenses' best resolution generally corresponds to 50% of the maximum depth of field we specify. The values in the parameters represent separate theoretical optimal values, and the best depth of field value is based on software export reference.

During the purchase, if you have specific requirements for depth of field and best resolution, please let us know, and our laboratory can offer the optimal solution.

By the way, considering the lens aperture is fixed and can not be adjusted after shipping out, it is necessary to confirm the required aperture size before placing the order.
