0.46X, 1.75″M42-Mount Telecentric Lenses Iris Adjustable, BFL Adjustable | DTCA175 COOLENS®

Model NO.    :

DTCA175-61.4-G-M42-AL

•Telecentric Lenses, with Coaxial Illumination Port Optional, Iris Adjustable, Back Flange Length Adjustable
•Up to 31 MegaPixels, 3.45μm Pixel Size Sensors
•Up to 1.75″, M42-Mount, M58-Mount Telecentric Lenses
•Magnification(x) 0.46

Model NO. DTCA175-61.4-G-M42-AL Magnification(x) 0.46
Object Field of View (Φmm) 61.4  Working Distance (mm) 250
Max Sensor Size (Φmm) 28.2(1.75") Best Aperture (F/#) 8.0
Telecentricity typical (max) (deg) 0.21 Distortion typical(max) (%) 0.03
MTF30 (lp/mm) 110 Depth of Field (mm) 0.006
Length of I/O (mm) 447 Mount M42
Length(mm) 184.9 Weight(kg) 1.2
Coaxial Illumination Port Option NO Iris Adjustable  YES
Back Focal Length Adjustable YES
Field of View (mm × mm) 22.53x16.90 with CMV12000 48.98x36.74
18.43x18.43 with PYTHON16k 40.07x40.07
28.8mm with LineScan-2k/4k/8k 62.61

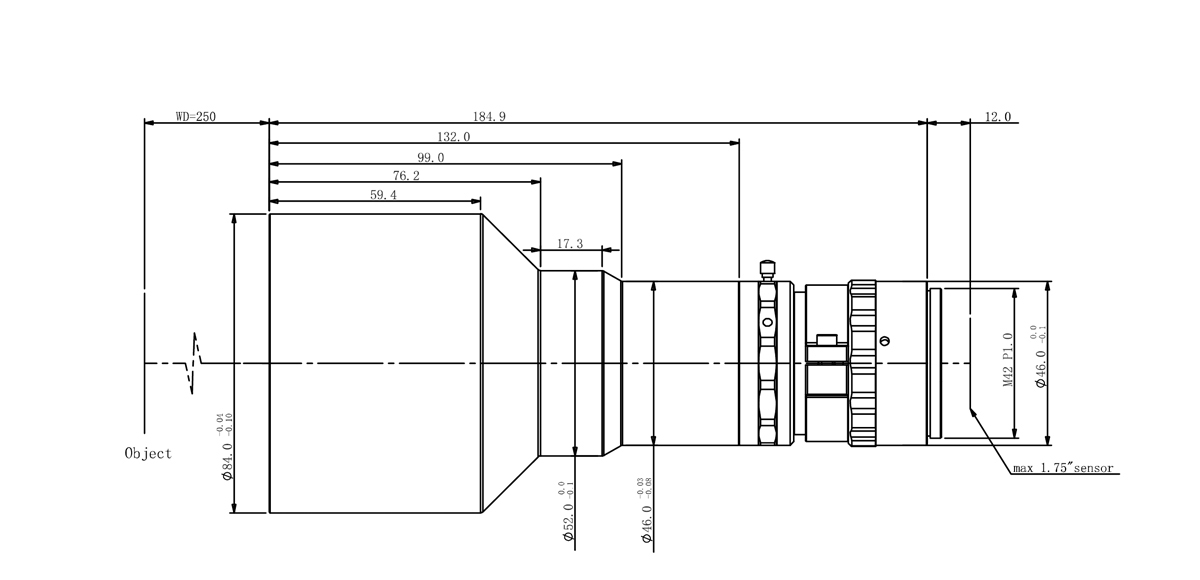

Dimensions

Tips:

Kindly note that the best resolution and maximum depth of field specified in the parameters are not achieved under the same aperture size conditions. As the aperture size becomes smaller (larger aperture values), the hyperfocal distance becomes shorter, and the DoF becomes larger.

Light Transmission

Our lenses' best resolution generally corresponds to 50% of the maximum depth of field we specify. The values in the parameters represent separate theoretical optimal values, and the best depth of field value is based on software export reference.

During the purchase, if you have specific requirements for depth of field and best resolution, please let us know, and our laboratory can offer the optimal solution.

By the way, considering the lens aperture is fixed and can not be adjusted after shipping out, it is necessary to confirm the required aperture size before placing the order.
