Beam170-Telecentric Illuminators | COOLIGHT®

Model NO.    :

DTCL-170-xW-y

•Optically Collimated Light for Increased Edge Contrast
•Superior Collimation Ideal for use with Telecentric Lenses
•Beam Diameter 170mm
•Ideal for Use with High Resolution Cameras

Model NO. DTCL-170-xW-y Color Red-630nm
Beam Dia. (mm) 170 Green-520nm
Working Distance(mm) 110-210 Blue-460nm
Diameter (mm) 212 White-/
Power 1W/3W Voltage 12V~24V
Length (mm) 392.8 Compatible Lens DTCMxxx-170
Electricity 350mA/750mA

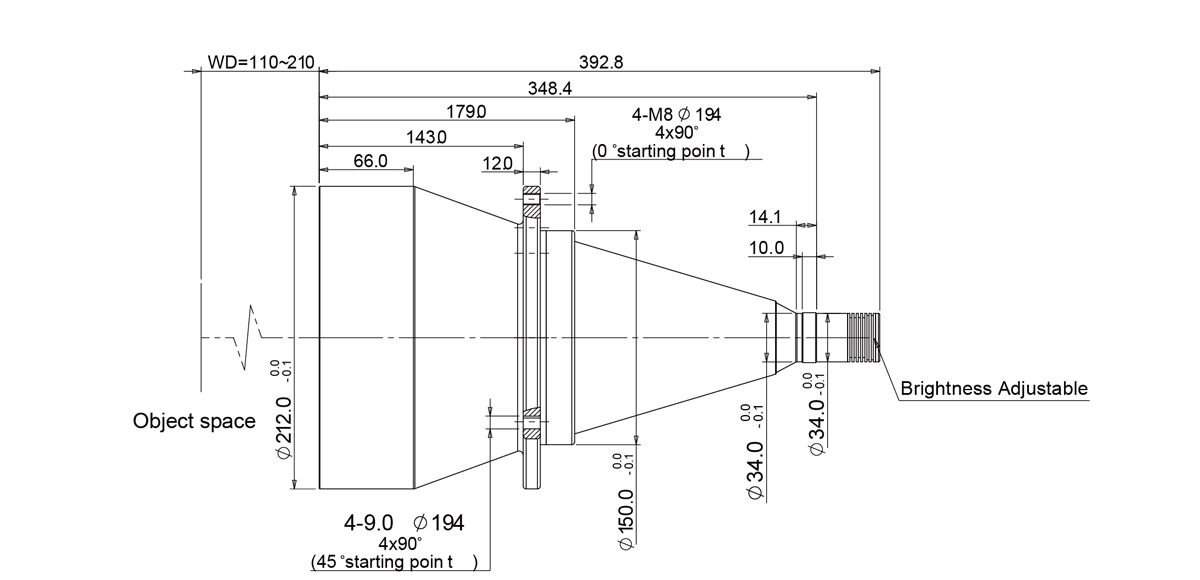

Dimensions
