Beam120-Telecentric Illuminators | COOLIGHT®

Model NO.    :

DTCL-120H-xW-y

•Optically Collimated Light for Increased Edge Contrast
•Superior Collimation Ideal for use with Telecentric Lenses
•Beam Diameter 120mm
•Ideal for Use with High Resolution Cameras

Model NO. DTCL-120H-xW-y Color Red-630nm
Beam Dia. (mm) 120 Green-520nm
Working Distance(mm) 93-186 Blue-460nm
Diameter (mm) 160 White-/
Power 1W/3W Voltage 12V~24V
Length (mm) 288.2 Compatible Lens DTCMxxx-120H
Electricity 350mA/750mA

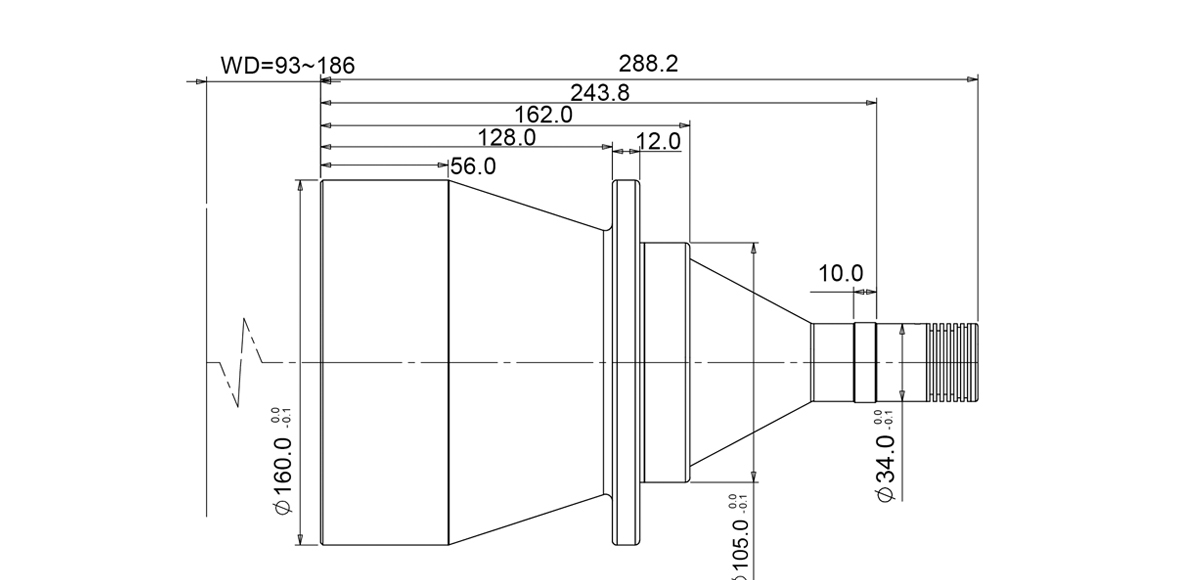

Dimensions
