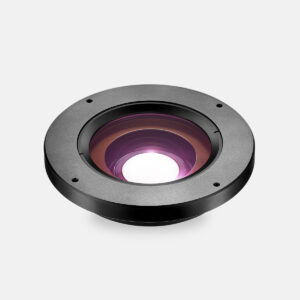

FOV130 MDR18 Relay Lens | RL25130-750 LONTRY®

Model NO.    :

RL25130-750

• High revivification
• Low distortion
• Cost-effective
• Suitable for focusing and terminal test within 130°
• Applicable to on-board, security and other wide-angle products

Model NO. FOV angle MDR Aperture Weight Range of simulated distance Distortion Outline dimensions
RL25130-750 130° 18mm 3mm 1.08kg 300-INFmm <20% Φ150x39.8mm
Structural Dimension Drawing

Optical Properties

Structure and Size
WDV (mm) Distance from the camera module to the simulated imaging position WDC (mm) Distance from the relay lens object end to the test card Test card dimensions (LXW)
16:9 4:3
Length (mm) Width (mm) Length (mm) Width (mm)
400 171.5 595.0 334.7 546.1 409.6
1000 248.0 806.5 453.7 740.3 555.2
5,000 316.0 994.7 559.5 913.0 684.7
Infinite distance 338.3 1056.2 594.1 969.5 727.1
