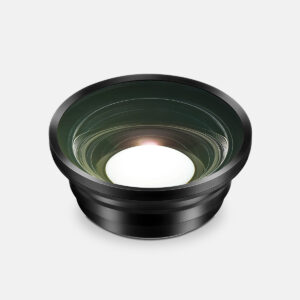

FOV88 MDR20 Relay Lens | RL2288-399 LONTRY®

Model NO.    :

RL2288-399

• Suitable for product testing within 90°
• Small lens, small distortion and cost-effective
• Suitable for focusing and terminal testing
• Suitable for array testing

Model NO. FOV angle MDR Aperture Weight Range of simulated distance Distortion Outline dimensions
RL2288-399 88° 20mm 3mm 0.25kg 300-INFmm <1% Φ80x30.37mm
Structural Dimension Drawing

Optical Properties

Structure and Size
WDV (mm) Distance from the camera module to the simulated imaging position WDC (mm) Distance from the relay lens object end to the test card Test card dimensions (LXW)
16:9 4:3
Length (mm) Width (mm) Length (mm) Width (mm)
400 153.61 316.04 177.77 290.08 217.56
1000 226.66 436.08 245.29 400.27 300.20
5,000 293.63 546.13 307.20 501.28 375.96
Infinite distance 315.95 582.82 327.84 534.96 401.22
