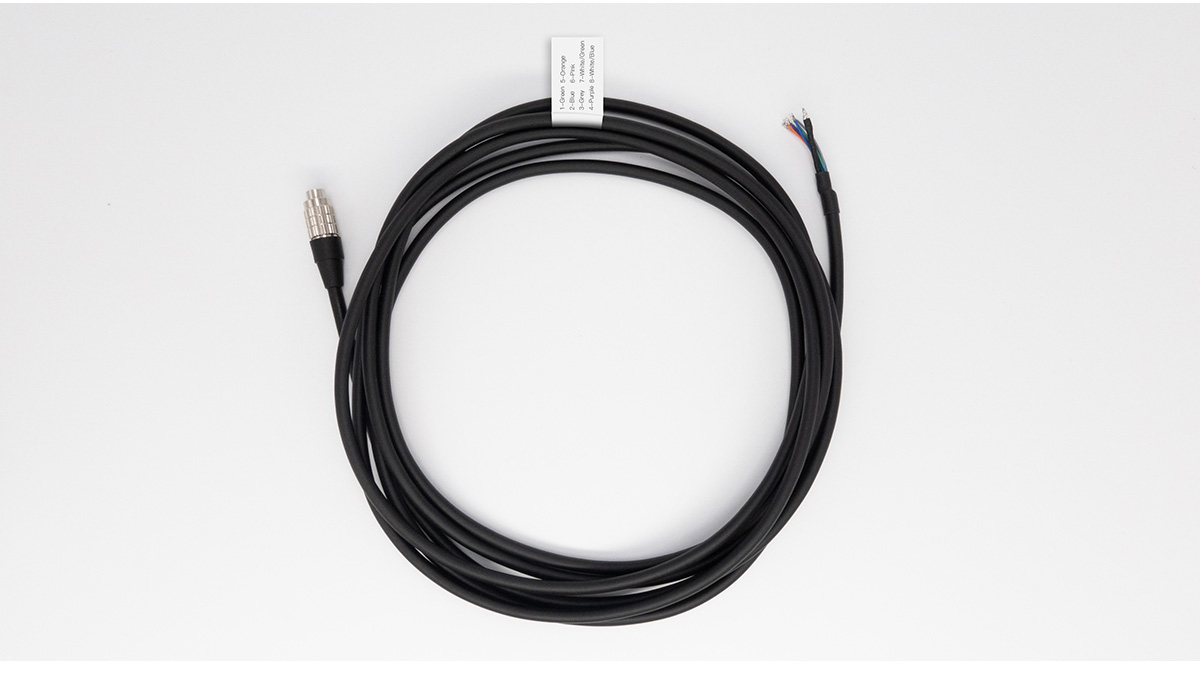

Hirose 8 Pin Female to Open I/O Power High Flex Cable | For Machine Vision

Hirose 8 Pin Female to Open I/O Power High Flex Cable | For Machine Vision - Image 3

Hirose 8 Pin Female to Open I/O Power High Flex Cable | For Machine Vision

Model NO. :

OLA-ANA-4-X-XM

Connector A: HR25-7TP-8S, (Female, 8Pin), Connector B: Open End
Cable Type: High Flex
Shielded: Double shielded braid + foil design for maximum protection from EMI/RFI.
Flame Retardant Grade: VW-1

Request a Quote

These cables can be used in demanding applications.They are ensure network throughput in harsh industrial environments.

• This is an extension cable for industrial camera power supply I/O trigger and data transmit.
• Hirose 8 pin female connector to open end, make DIY connections according to your needs.
• Features: abrasion-resistant, flame-resistant, torsion- resistant, heat-resistant.
• High flexible, drag chain.
• Basler racer GigE and runner cameras, Sony industrial CCD camera, Allied Vision cameras and more industrial Machine Vision cameras with Hirose 8 pin Male Connector.

Application: Power drag chains environments
Delivery Time: 4-10 working days
Payment Terms: Online or T/T

Connector Specification

Bill Of Materials				Wiring Diagram	Location of Pins
Item	Description	QTY	Specification		PIC	Pin	Clour

①	Wire	1	6Px26AWG RoHS LF BLACK			1	Green

						2	Blue

②	Connector	1	HR25-7TP-8S			3	Grey

③	Shrinkable Tube	1	ø6.0			4	Purple

④	Shrinkable Tube	1	ø2.0			5	Orange

						6	Pink

⑤	Label	1	Wiring Diagram			7	White/Green

						8	White/Blue

Drawing	Pair Twist Insulator Colour
	Pair Twist	Insulator Colour
	1	Green

	2	Blue

	3	Grey

	4	Purple

	5	Orange

	6	Pink

	7	White/Green

	8	White/Blue

	* White / Blue: White line is injected on the blue insulator and occupys 20-25% of the dimension. The same for others.

Model NO.	OLA-ANA-1-X-3M CABLE
Style	8CX28AWG RoHS LF BLACK		Flame Retardant Grade	8X28AWG
Approbation	NOUL			VW-1

Conductor	Size	28AWG/8C	Shielded	Foil	0.05*20mm
	Cond. Material	Bare Copper BC		Braid	16/7/0.1TC
	Construction	41/0.08 BC		30/0.08 BC	ACovered
	Diameter	0.4mm	Jacketed	Material	PVC
	Tolern	±0.003mm		Diameter	ø5.0±0.3mm
Insulation	Material	PVC		Colour	Black (Similar to RAL 9005)
	Diameter	0.8±0.05mm	Wokring Tempearture	Fixed Installation	-20°C ~ 80°C
	Colour	Green, Blue,		Moved Installation	-10°C ~ 50°C
		Grey, Purple,	Minimal Bending Radius	Fixed Installation	4 X Cable-ø
		Orange, Pink,		Moved Installation	8 X Cable-ø
		White/Green, White/Blue	Electrical Properties	Fixed Installation	≤87.6 Ω/km 20°C
Assembly Standed	8CX28AWG			Test Voltage	500V/1min
