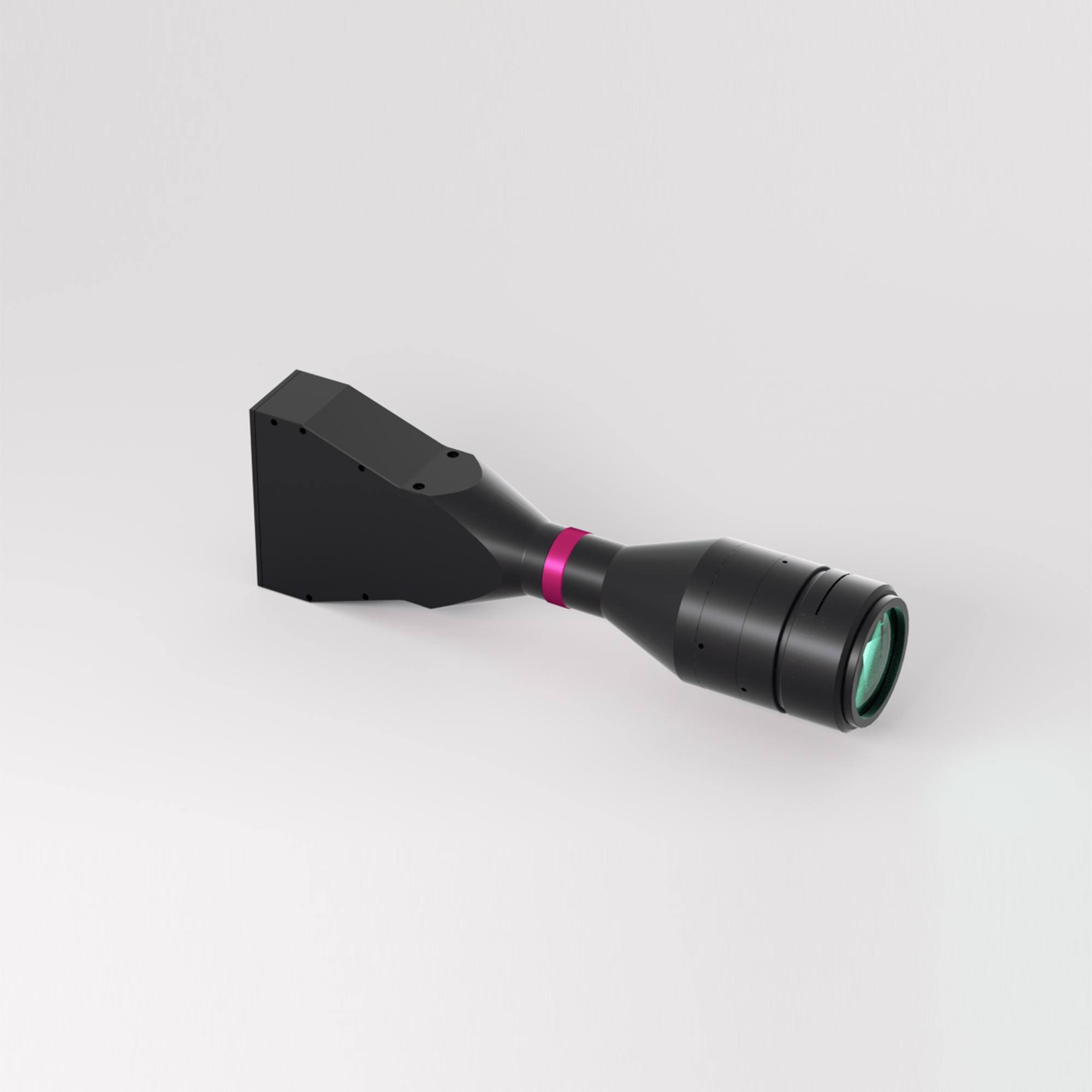

39mm 0.542X Flat Telecentric Lenses For Line Scan | LTCM71M-72-M58-AL COOLENS®

Model NO.    :

LTCM71M-72-M58-AL

Image Circle: 39mm
Magnification: 0.542X
FOV: 72mm
WD: 176±3mm
Mount: M58
Type: Flat Telecentric Lenses For Line Scan

Model No. LTCM71M-72-M58-AL Magnification(x) 0.542
Object Field of View (Φmm) 72 Working Distance (mm) 176±3
Image Circle Diameter (Φmm) 39mm Best Aperture (F/#) 11.5
Telecentricity typical (max) (deg) <0.1 Distortion typical (max) (%) <0.1
MTF30 (lp/mm) >75 Depth of Field (mm) ±2.7@F20
Length of I/O (mm) 485±3
Mechanical Specifications
Mount M58
Length (mm) 297.6

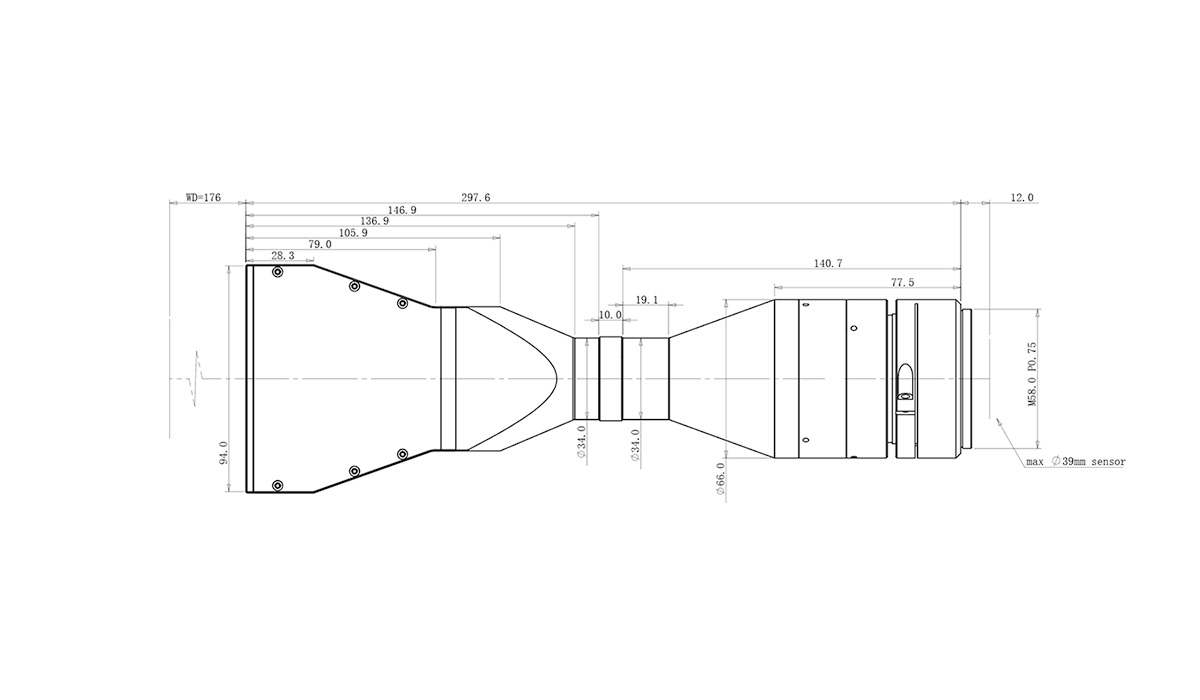

Dimensions
