29(1.75″)mm 0.153X Flat Telecentric Lenses For Line Scan | LTCM175-190H-M58-AL COOLENS®

Model NO.    :

LTCM175-190H-M58-AL

Image Circle: 29(1.75″)mm
Magnification: 0.153X
FOV: 190mm
WD: 176±3mm
Mount: M58
Type: Flat Telecentric Lenses For Line Scan

Model No. LTCM175-190H-M58-AL Magnification(x) 0.153
Object Field of View (Φmm) 190 Working Distance (mm) 330±3
Image Circle Diameter (Φmm) 29(1.75") Best Aperture (F/#) 6.8
Telecentricity typical (max) (deg) <0.1 Distortion typical (max) (%) <0.1
MTF30 (lp/mm) >135 Depth of Field (mm) ±27.3@F16
Length of I/O (mm) 828±5
Mechanical Specifications
Mount M58
Length (mm) 486.3

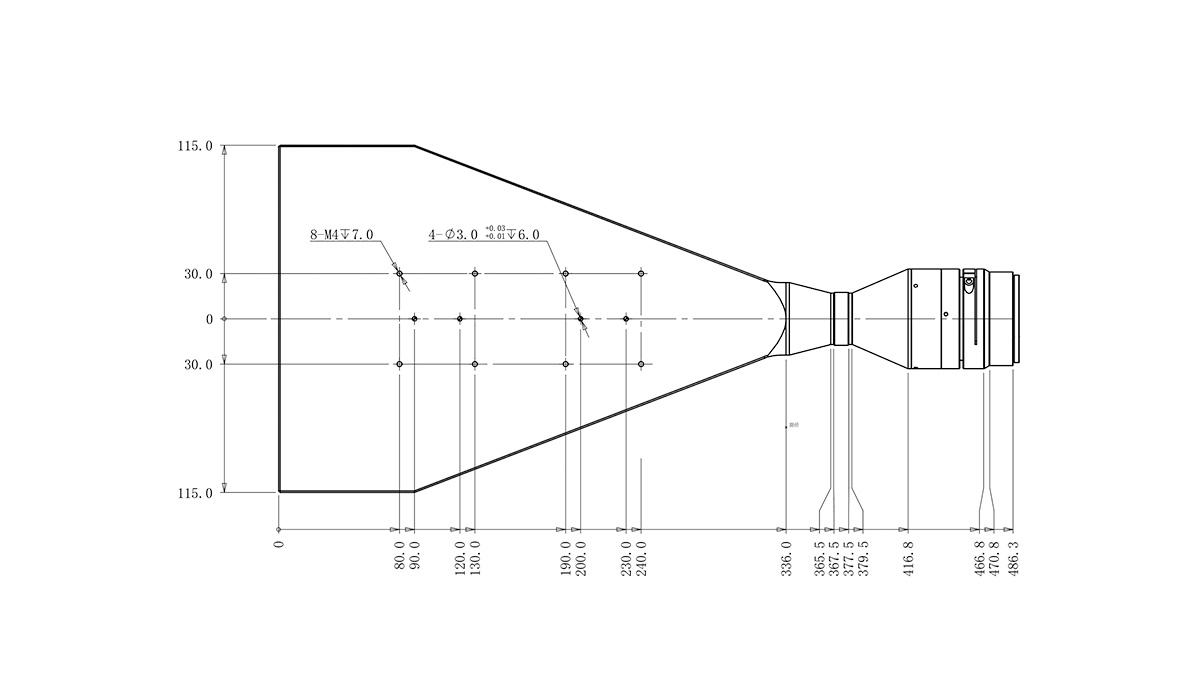

Dimensions
