23.6(4/3″)mm 0.328X Flat Telecentric Lenses For Line Scan | LTCM430H-72-M58-AL COOLENS®

Model NO.    :

LTCM430H-72-M58-AL

Image Circle: 29(1.75″)mm
Magnification: 0.328X
FOV: 72mm
WD: 176±3mm
Mount: M58
Type: Flat Telecentric Lenses For Line Scan

Model No. LTCM430H-72-M58-AL Magnification(x) 0.328
Object Field of View (Φmm) 72 Working Distance (mm) 178±3
Image Circle Diameter (Φmm) 23.6(4/3") Best Aperture (F/#) 6.9
Telecentricity typical (max) (deg) <0.1 Distortion typical (max) (%) <0.1
MTF30 (lp/mm) >132 Depth of Field (mm) ±6.0@F16
Length of I/O (mm) 435±3
Mechanical Specifications
Mount M58
Length (mm) 245

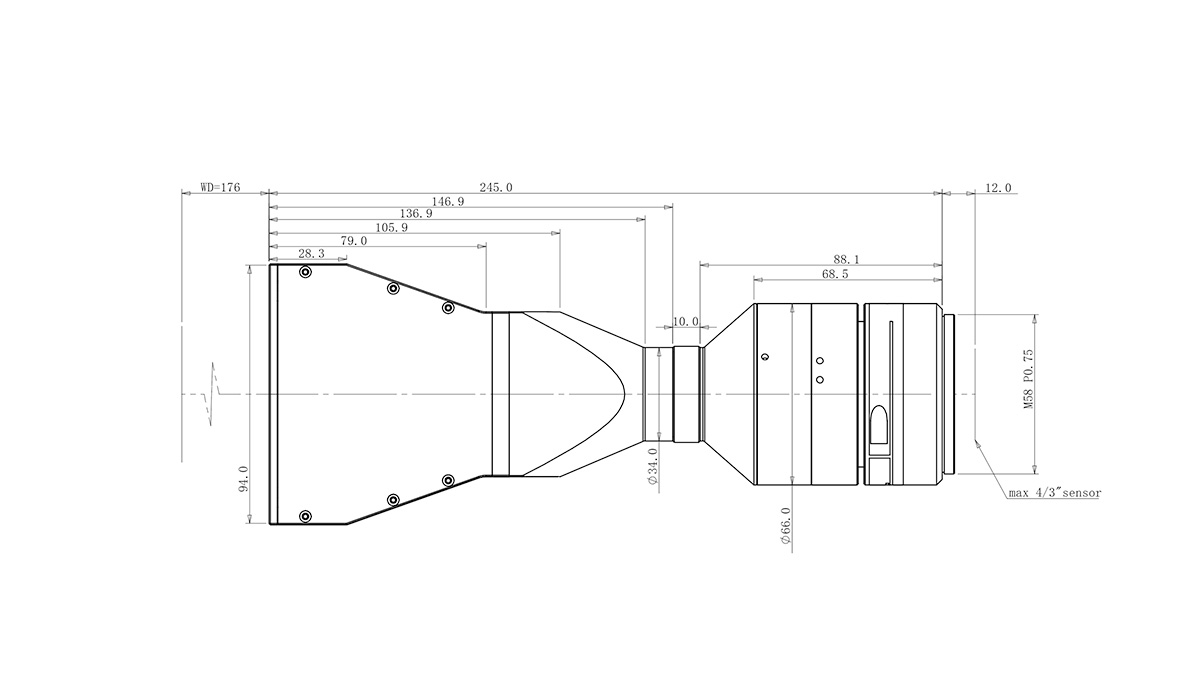

Dimensions
