50mm 2/3″ Fixed Focal Length Lenses | MFA230 COOLENS®

Model NO.    :

MFA230-S50

•Up to 2/3″, C-Mount Lenses
•Up to 10 MegaPixels, 3.45μm Pixel Size Sensors
•Variable Aperture, Compact
•Focal Length 50mm

Model No. MFA230-S50 Mount C-Mount
Focal Length 50mm Back Focal Length 10.5 mm in Air
F NO. F2.0 - F16 Filter Size /
Max. Image Format 2/3" (φ11.4mm) Distortion <0.5%
Angle of View D 2/3" 10.8° Object Dimension at M.o.D 2/3" 42.44mm x 35.57mm
H 8.7° 1/1.7" 37.28mm x 28.14mm
V 6.5°
M.o.D 0.3m Operating Temperature 47.28mm x 39.63mm
Weight 94.5g Structure 8 Groups
Flange Back Length 17.526mm in Air Operation of Focus Range MOD-INF
Spectral Transmission AT 436nm-656nmT≥85% Operation of Iris Range F2.8 - F16

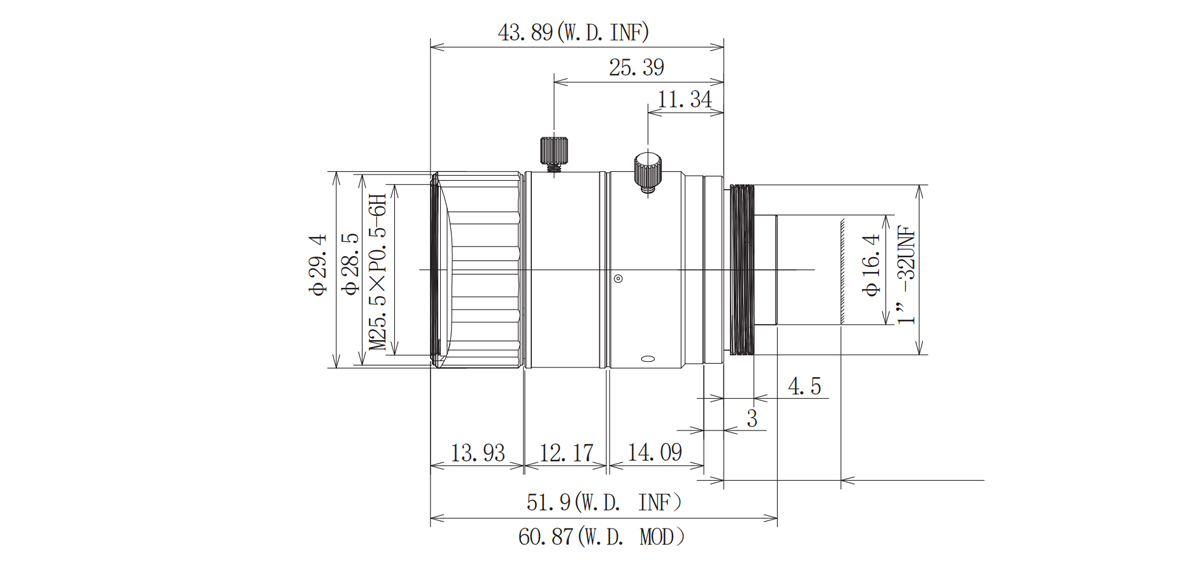

Dimensions
