35mm 2/3″ Fixed Focal Length Lenses | MFA230 COOLENS®

Model NO.    :

MFA230-S35

•Up to 2/3″, C-Mount Lenses
•Up to 10 MegaPixels, 3.45μm Pixel Size Sensors
•Variable Aperture, Compact
•Focal Length 35mm

Model No. MFA230-S35 Mount C-Mount
Focal Length 35mm Back Focal Length 14.93mm in Air
F NO. F2.0 - F16 Filter Size M25.5 x P0.5
Max. Image Format 2/3" (φ11.4mm) Distortion <0.1%
Angle of View D 2/3" 16.5° 1/1.8" 13.5° 1/2" 12.1°
H 12.8° 11.7° 9.6°
V 10.7° 7.4° 7.2°
M.o.D 0.2m Object Dimension at M.o.D 2/3" 47.28mm x 39.63mm
Weight 62.8g 1/1.7" 41.53mm x 31.36mm
Flange Back Length 17.526mm in Air
Structure 5 Groups, 8 Elements Operating Temperature -10°C — 50°C
Operation of Iris Range F2.0 - F16 Operation of Focus Range MOD-INF
Angle 76.8° Angle 327.4°
Spectral Transmission AT 436nm-656nmT≥85%

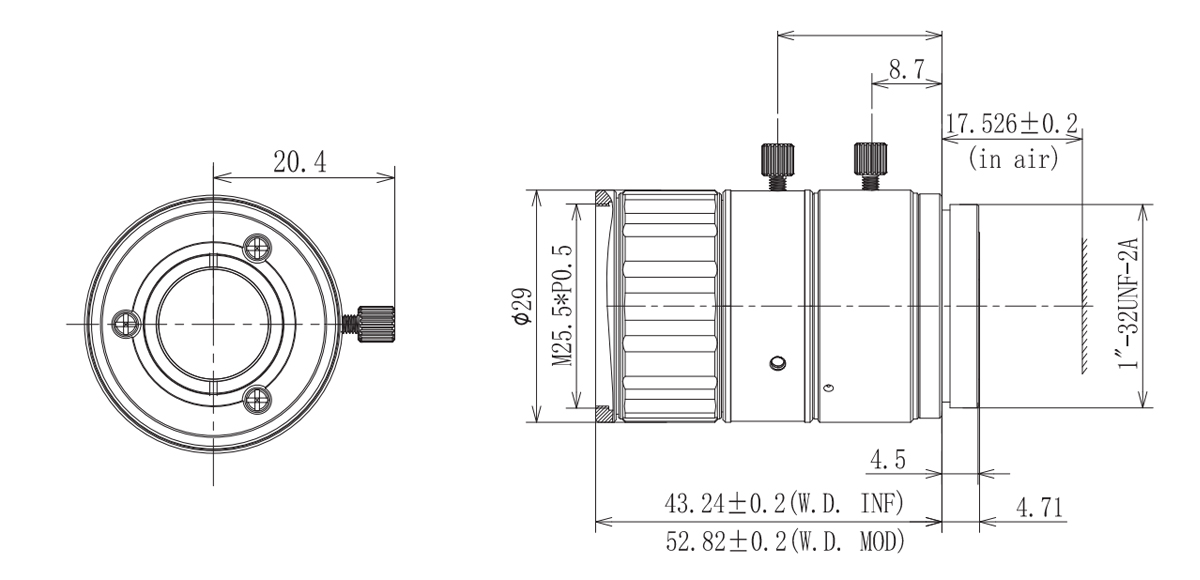

Dimensions
