25mm 2/3″ Fixed Focal Length Lenses | MFA230 COOLENS®

Model NO.    :

MFA230-S25

•Up to 2/3″, C-Mount Lenses
•Up to 10 MegaPixels, 3.45μm Pixel Size Sensors
•Variable Aperture, Compact
•Focal Length 25mm

Model No. MFA230-S25 Mount C-Mount
Focal Length 25mm Back Focal Length 10.5 mm in Air
F NO. F2.0 - F16 Filter Size M25.5 x P0.5
Max. Image Format 2/3" (φ11.4mm) Distortion <0.1%
Angle of View D 2/3" 23.9° 1/1.8" 19.4° 1/2" 17.4°
H 18.3° 15.8° 14.0°
V 15.4° 10.7° 10.5°
M.o.D 0.2m Object Dimension at M.o.D 2/3" 69.64mm x 58.38mm
Weight 50.3g 1/1.7" 61.18mm x 46.19mm
Flange Back Length 17.526mm in Air
Structure 5 Groups, 8 Elements Operating Temperature -10°C — 50°C
Operation of Iris Range F2.0 - F16 Operation of Focus Range MOD-INF
Angle 68.02° Angle 224.45°
Spectral Transmission AT 436nm-656nmT≥85%

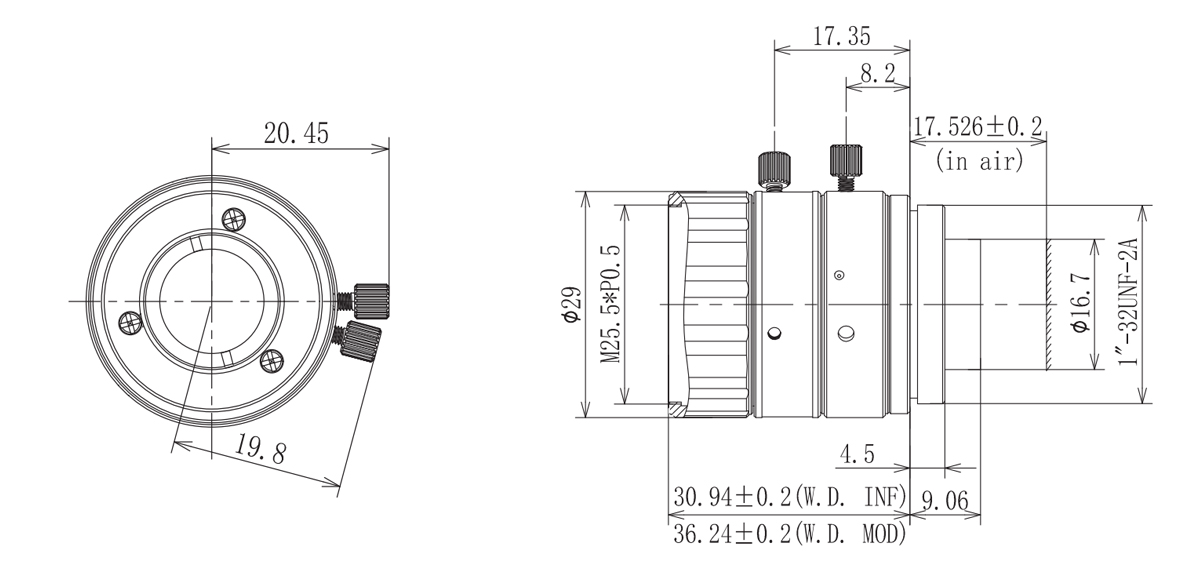

Dimensions
