16mm 2/3″ Fixed Focal Length Lenses | MFA230 COOLENS®

Model NO.    :

MFA230-S16

•Up to 2/3″, C-Mount Lenses
•Up to 10 MegaPixels, 3.45μm Pixel Size Sensors
•Variable Aperture, Compact
•Focal Length 16mm

Model No. MFA230-S16 Mount C-Mount
Focal Length 16mm Back Focal Length 9.3mm in Air
F NO. F2.0 - F16 Filter Size M27 x P0.5
Max. Image Format 2/3" (φ11.4mm) Distortion <0.5%
Angle of View D 2/3" 37.4° 1/1.8" 30.8° 1/2" 27.6°
H 29.3° 26.8° 22.4°
V 24.7° 17.3° 16.8°
M.o.D 0.1m Object Dimension at M.o.D 2/3" 62.62mm x 52.49mm
Weight 61.2g 1/1.7" 55.01mm x 41.53mm
Flange Back Length 17.526mm in Air
Structure 7 Groups, 9 Elements Operating Temperature -10°C — 50°C
Operation of Iris Range F2.0 - F16 Operation of Focus Range MOD-INF
Angle 68.08° Angle 328.1°
Spectral Transmission AT 436nm-656nmT≥85%

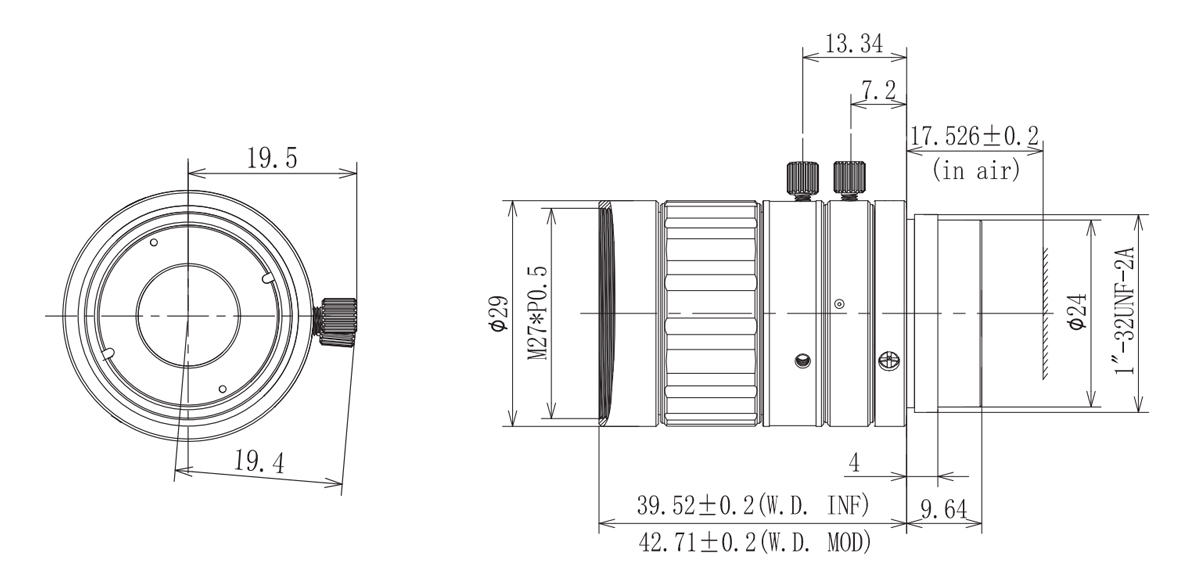

Dimensions
