8mm 2/3″ Fixed Focal Length Lenses | MFA230 COOLENS®

Model NO.    :

MFA230-S08

•Up to 2/3″, C-Mount Lenses
•Up to 10 MegaPixels, 3.45μm Pixel Size Sensors
•Variable Aperture, Compact
•Focal Length 8mm

Model No. MFA230-S08 Mount C-Mount
Focal Length 8mm Back Focal Length 10.5 mm in Air
F NO. F2.6 - F16 Filter Size /
Max. Image Format 2/3" (φ11.4mm) Distortion <0.5%
Angle of View D 2/3" 67.2° 1/1.8" 56.5° 1/2" 51.4°
H 53.5° 47.7° 42.0°
V 46.0° 34.1° 32.1°
M.o.D 0.11m Object Dimension at M.o.D 2/3" 115.54mm x 96.85 mm
Weight 61.7g 1/1.7" 101.49mm x 76.62 mm
Flange Back Length 17.526mm in Air
Structure 11 Groups, 12 Elements Operating Temperature -10°C — 50°C
Operation of Iris Range F2.6 - F16 Operation of Focus Range MOD-INF
Angle 47.28° Angle 170.74°
Spectral Transmission AT 436nm-656nmT≥85%

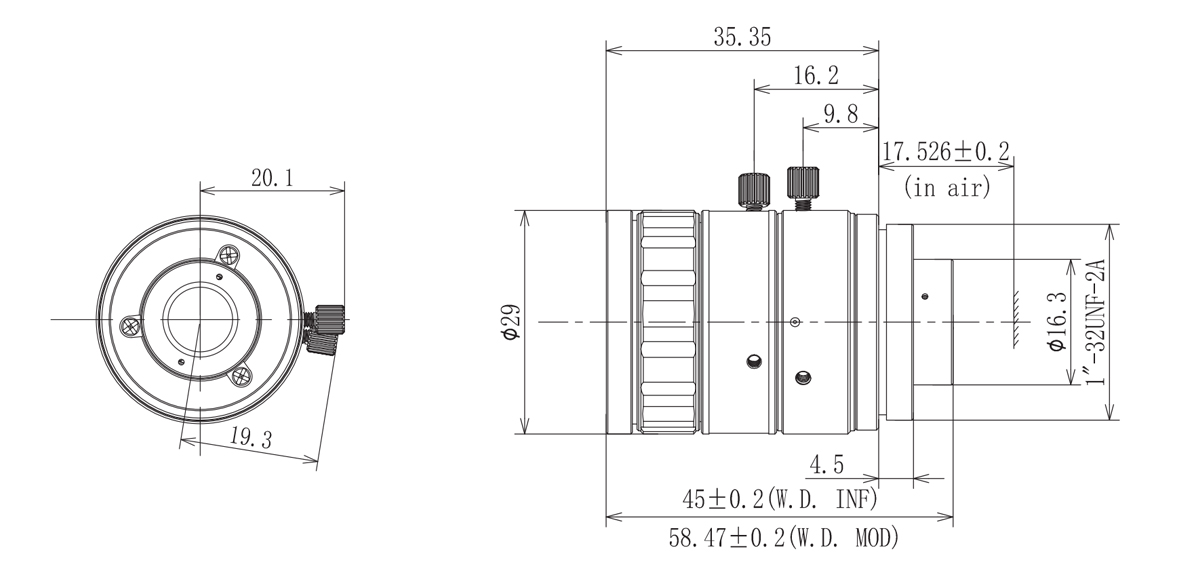

Dimensions
