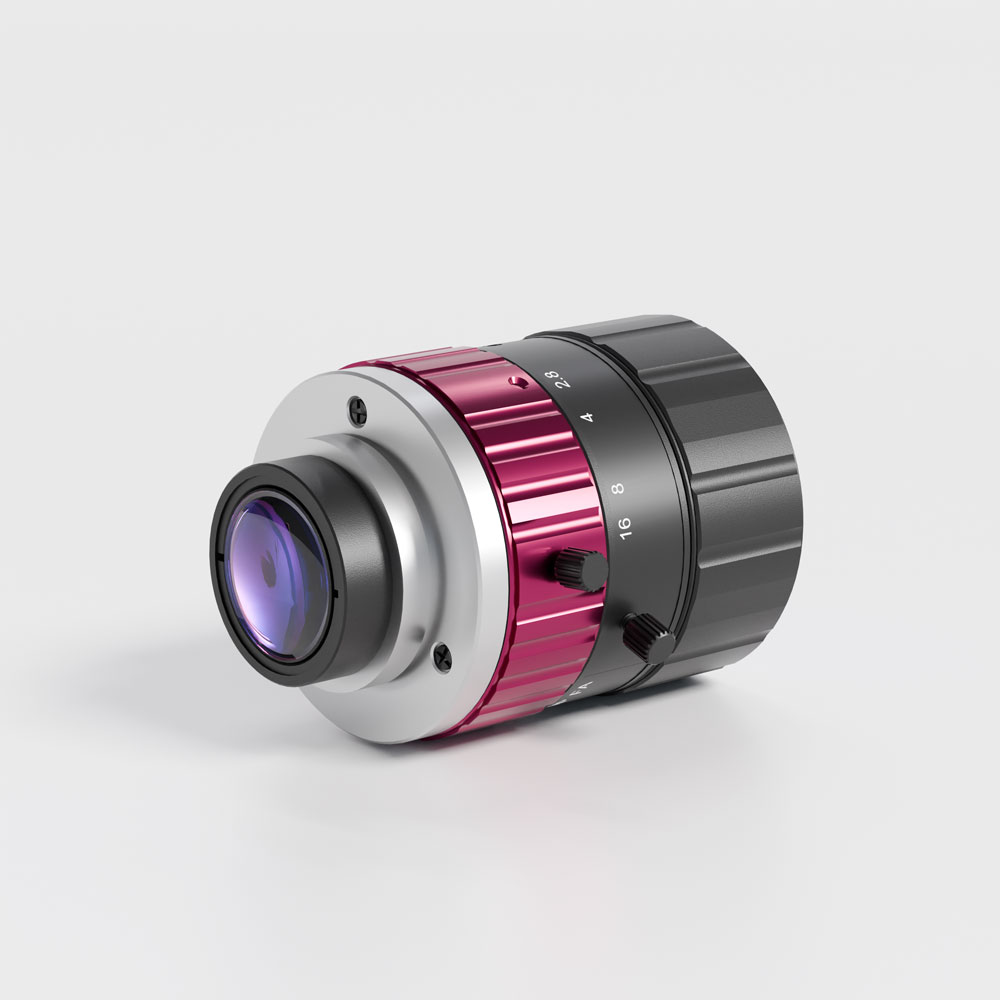

25mm 1.1″ Fixed Focal Length Lenses | MFA111 COOLENS®

Model NO.    :

MFA111-H25
  • Fixed Focal Length Lens for Machine Vision Applications
  • High Resolution, High Contrast, and Low Distortion
  • Compact C-mount FA lens
  • Support up to 1.1″ sensor format cameras
  • Focal Length 12mm to 50mm available
Focal Length Max Diameter(RATIO) Picture Size Distortion(TV) Focus distance(min) Max sensor size Filter screw size Mount
f=25mm F=2.8~16 1.1” -0.29% 0.15m ø19.3mm M30.5xP0.5 C-Mount

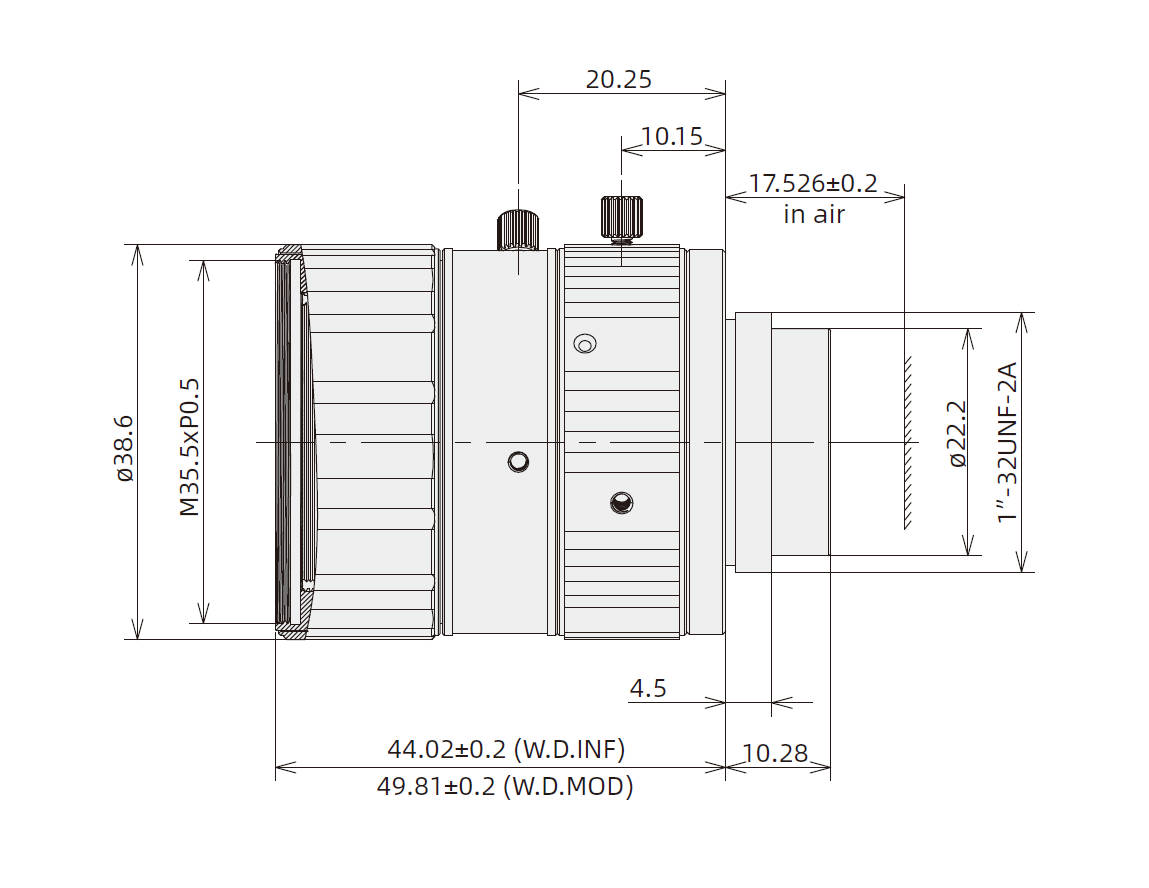

Dimensions
