12mm 1″ Fixed Focal Length Lenses | MFA110 COOLENS®

Model NO.    :

MFA110-H12

•Up to 1″, C-Mount Lenses
•Up to 20 MegaPixels, 2.4μm Pixel Size Sensors
•Variable Aperture, High Performance, Low Distortion
•Focal Length 12mm

Model No. MFA110-H12 Mount C-Mount
Focal Length 12mm Back Focal Length 11.5mm in Air
F NO. F2.8 - F16 Filter Size /
Max. Image Format 1" (φ17.6mm) Distortion <0.1%
Angle of View D 1.1'' 70.5° 1" 65.7° 2/3" 48.3°
H 37.8° 53.5° 37.8°
V 32.1° 43.3° 32.1°
M.o.D 0.1m Object Dimension at M.o.D 1.1" 145.95mm x 105.37mm
Weight 169.0g 1" 127.71mm x 99.90mm
Flange Back Length 17.526mm in Air 2/3" 85.49mm x 71.25mm
Structure 10 Groups, 12 Elements Operating Temperature -10°C — 50°C
Operation of Iris Range F2.8 - F16 Operation of Focus Range F2.8 - F16
Angle Angle 55.5° Angle 150.55°
Spectral Transmission AT 436nm-656nmT≥85%

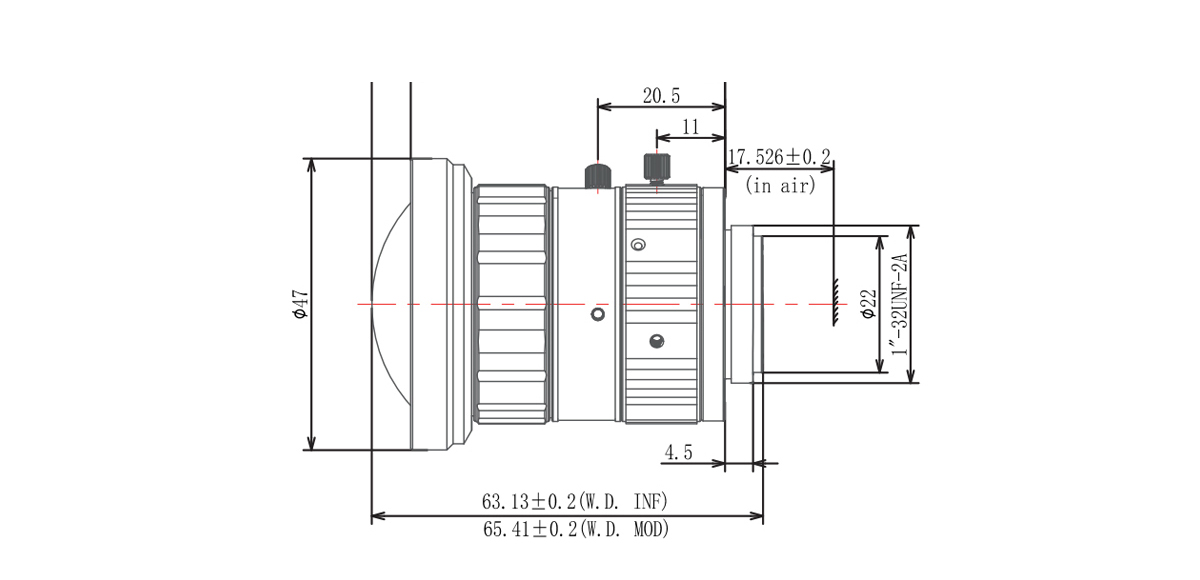

Dimensions
