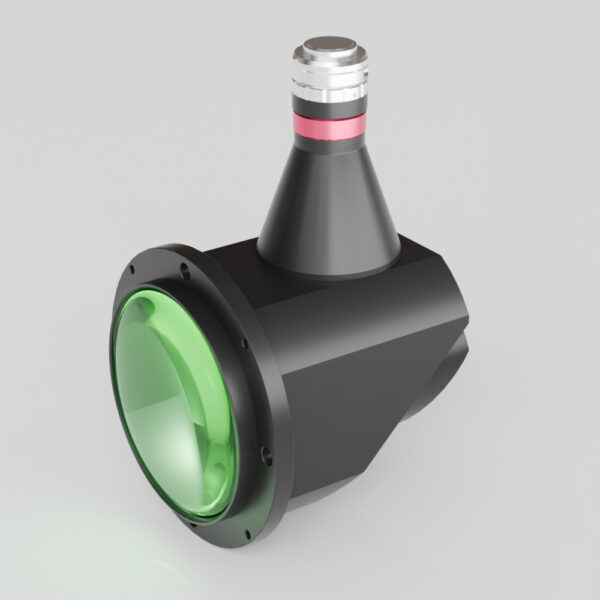

9.0(1/1.8″)mm 0.09X 90° Matrix Bi-Telecentric Lenses | DTCM118-100H-T90-AL COOLENS®

Model NO.    :

DTCM118-100H-T90-AL

Image Circle: 9.0(1/1.8″)mm
Magnification: 0.09X
FOV: 100mm
WD: 238±4mm
NA: 0.00978
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM118-100H-T90-AL Object Field of View(Φmm) 100
Image Circle Diameter (Φmm) 9.0(1/1.8") Best Aperture(f/#) 4.6
Magnification(x) 0.09 MTF30 (lp/mm) >200
Working Distance(mm) 238±4 Depth of Field(mm) ±54.3@F11
NA 0.00978 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 506±4
Mechanical Specifications
Mount C
Length (mm) 233.9

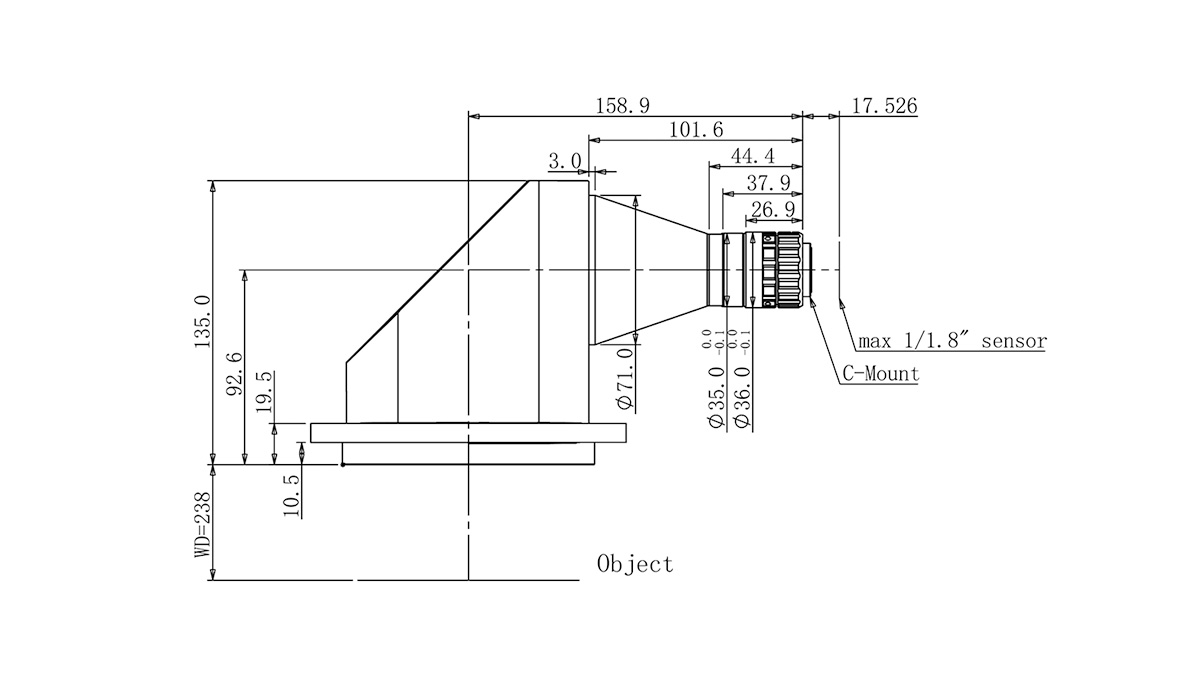

Dimensions
