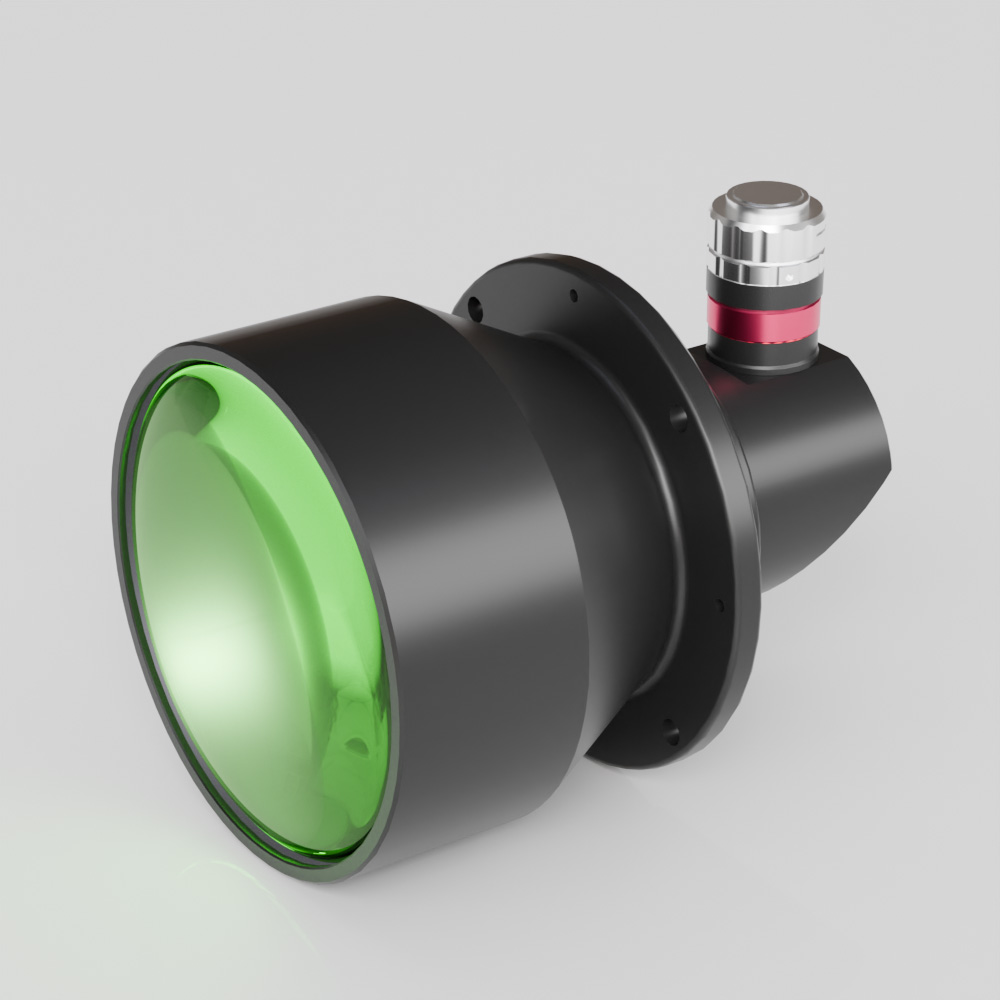

9.0(1/1.8″)mm 0.075X 90° Matrix Bi-Telecentric Lenses | DTCM118-120H-T90-AL COOLENS®

Model NO.    :

DTCM118-120H-T90-AL

Image Circle: 9.0(1/1.8″)mm
Magnification: 0.075X
FOV: 120mm
WD: 273±5mm
NA: 0.00815
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM118-120H-T90-AL Object Field of View(Φmm) 120
Image Circle Diameter (Φmm) 9.0(1/1.8") Best Aperture(f/#) 4.6
Magnification(x) 0.075 MTF30 (lp/mm) >200
Working Distance(mm) 273±5 Depth of Field(mm) ±78.2@F11
NA 0.00815 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 562±5
Mechanical Specifications
Mount C
Length (mm) 208.5

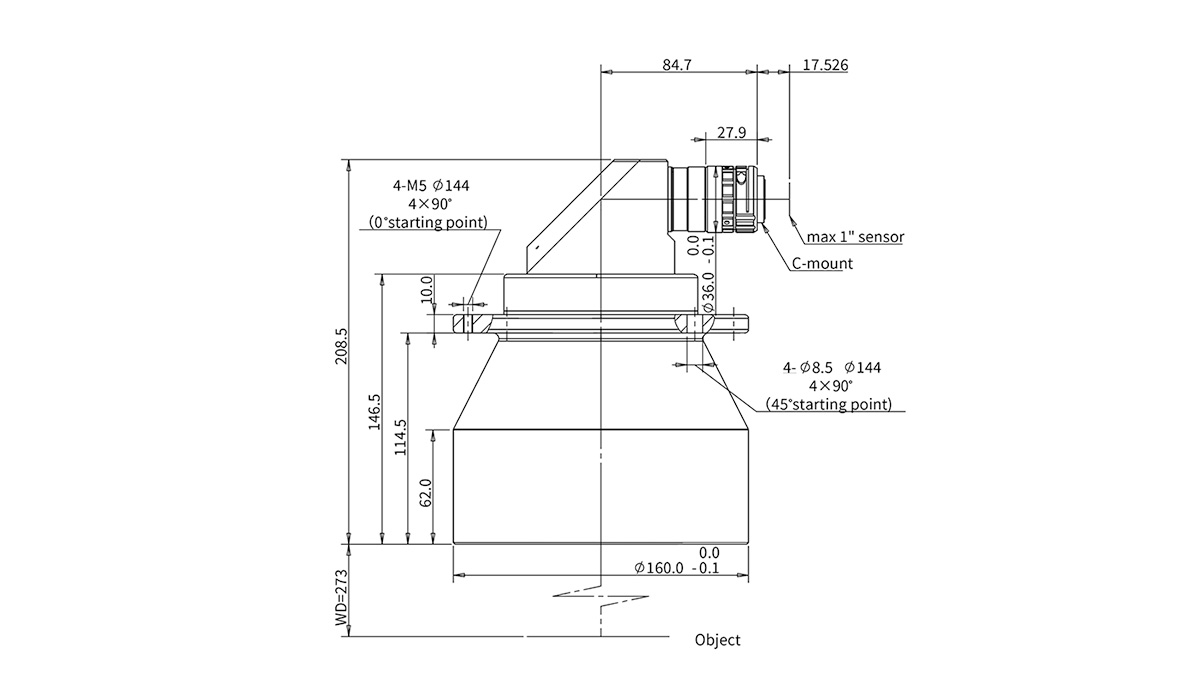

Dimensions
