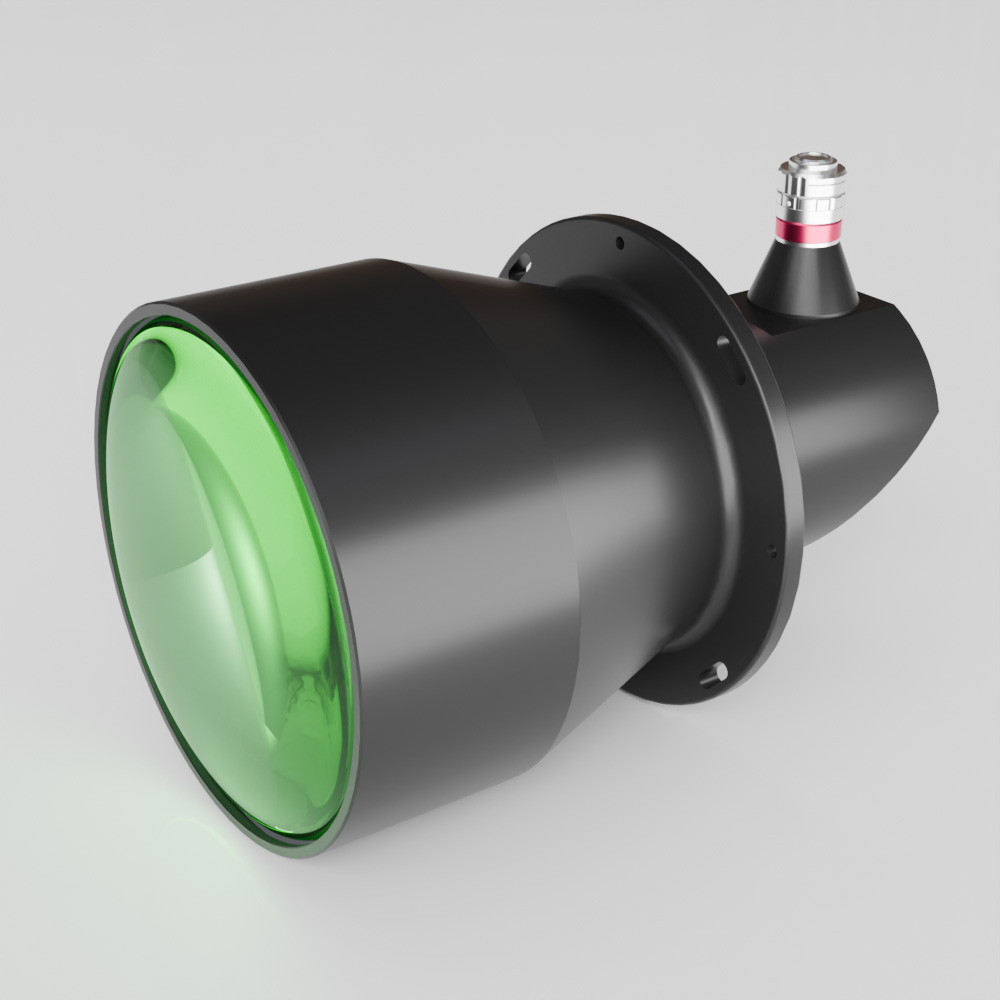

9.0(1/1.8″)mm 0.042X 90° Matrix Bi-Telecentric Lenses | DTCM118-216-T90-AL COOLENS®

Model NO.    :

DTCM118-216-T90-AL

Image Circle: 9.0(1/1.8″)mm
Magnification: 0.042X
FOV: 216mm
WD: 372±5mm
NA: 0.00453
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM118-216-T90-AL Object Field of View(Φmm) 216
Image Circle Diameter (Φmm) 9.0(1/1.8") Best Aperture(f/#) 4.6
Magnification(x) 0.042 MTF30 (lp/mm) >200
Working Distance(mm) 372±5 Depth of Field(mm) ±249@F11
NA 0.00453 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 889±5
Mechanical Specifications
Mount C
Length (mm) 396.8

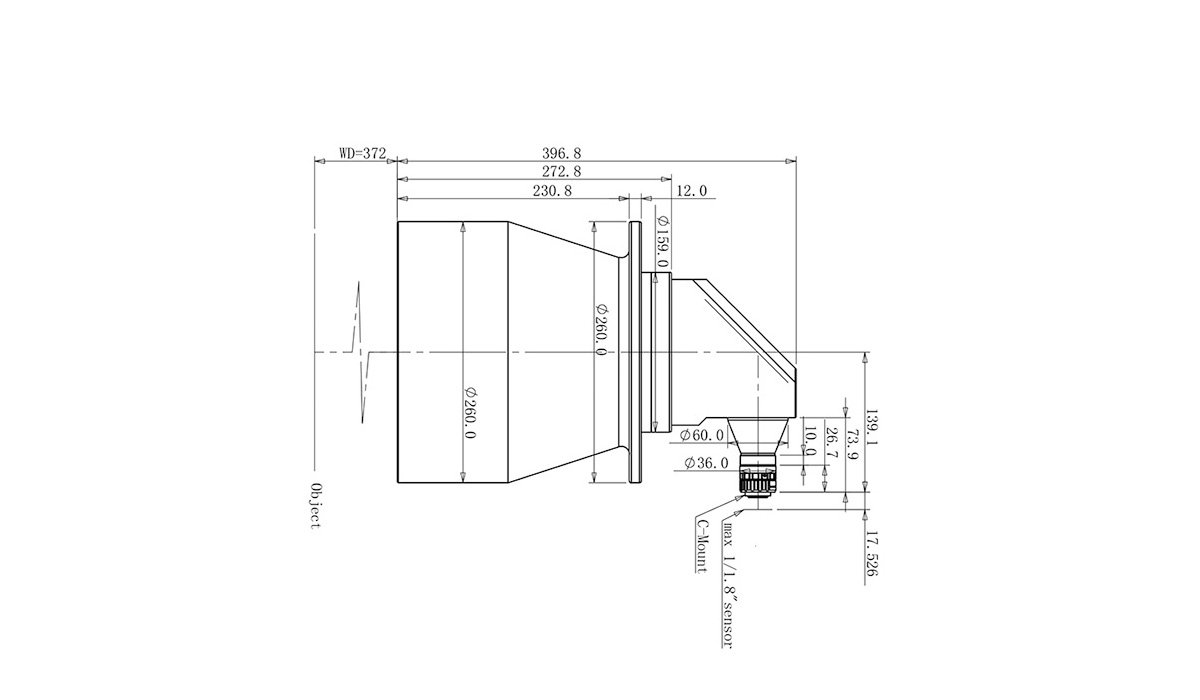

Dimensions
