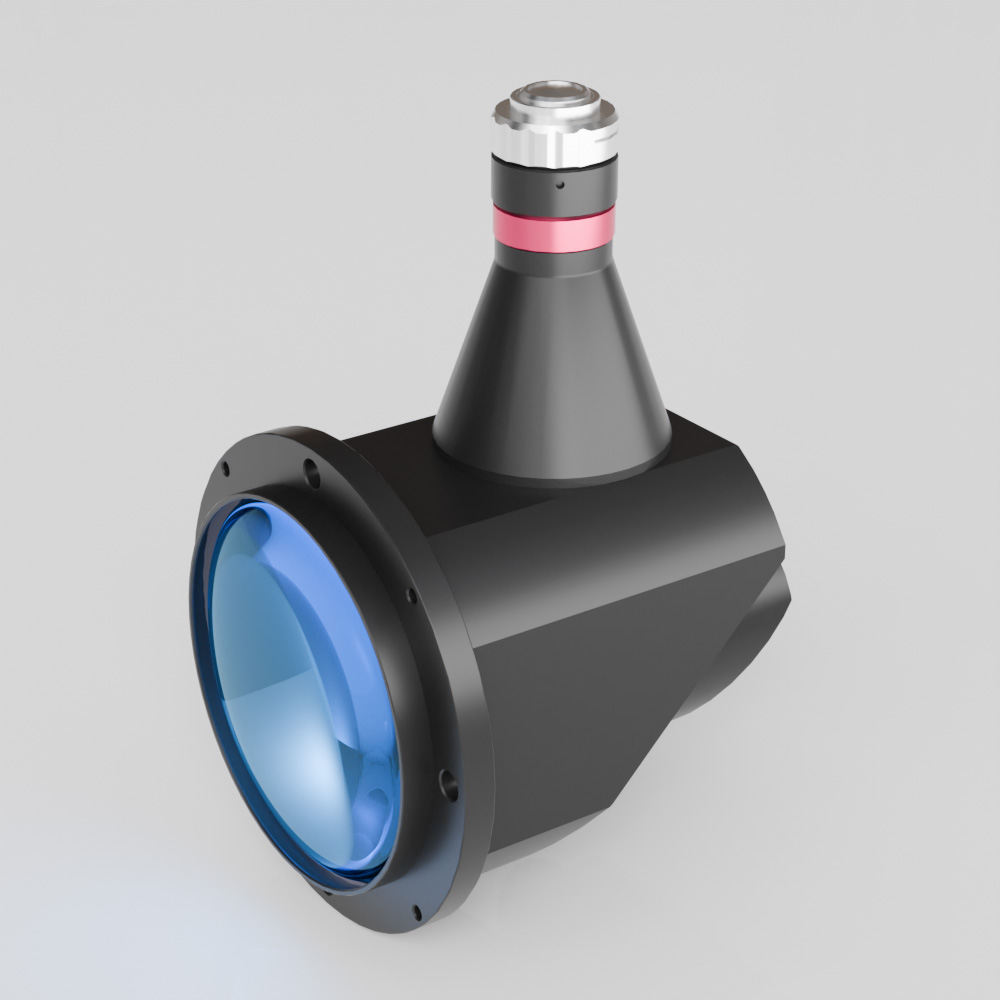

8.0(1/2″)mm 0.08X 90° Matrix Bi-Telecentric Lenses | DTCM120-100H-T90-AL COOLENS®

Model NO.    :

DTCM120-100H-T90-AL

Image Circle: 8.0(1/2″)mm
Magnification: 0.08X
FOV: 100mm
WD: 238±4mm
NA: 0.00952
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM120-100H-T90-AL Object Field of View(Φmm) 100
Image Circle Diameter (Φmm) 8.0(1/2") Best Aperture(f/#) 4.2
Magnification(x) 0.08 MTF30 (lp/mm) >210
Working Distance(mm) 238±4 Depth of Field(mm) ±68.7@F11
NA 0.00952 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 505±4
Mechanical Specifications
Mount C
Length (mm) 232.7

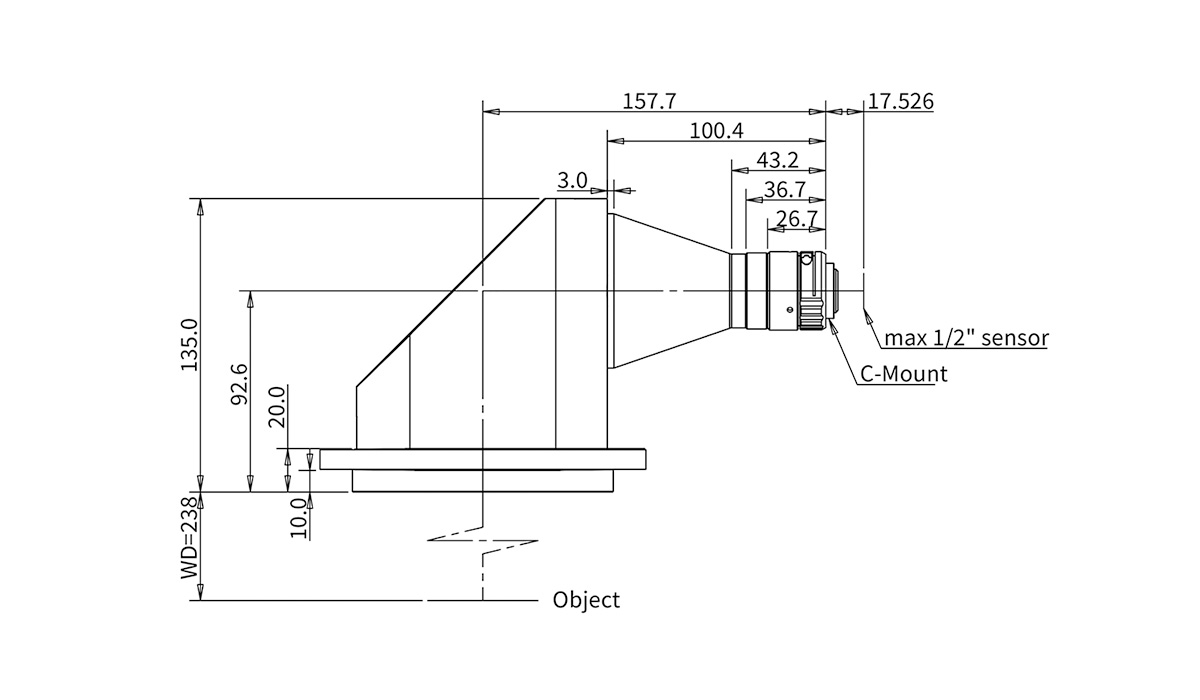

Dimensions
