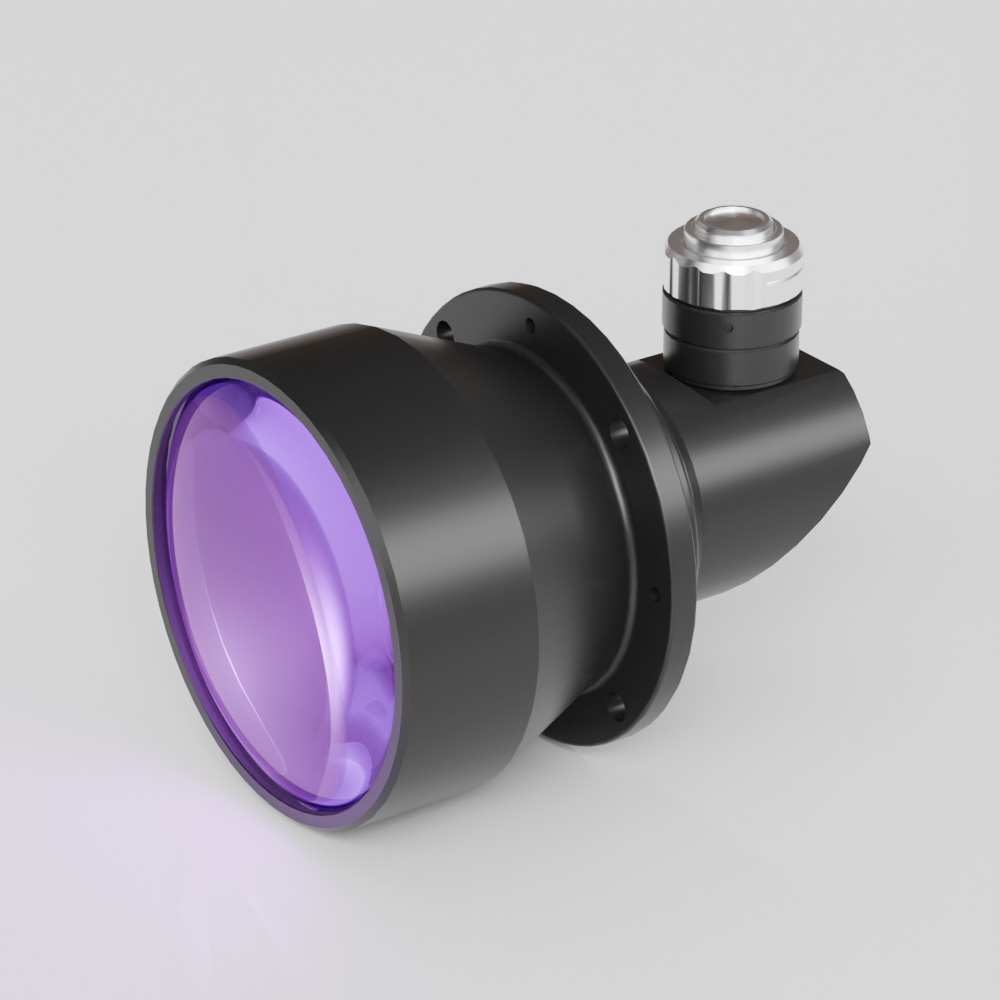

7.2(1/2.5″)mm 0.08X 90° Matrix Bi-Telecentric Lenses | DTCM125-90-T90-AL COOLENS®

Model NO.    :

DTCM125-90-T90-AL

Image Circle: 7.2(1/2.5″)mm
Magnification: 0.08X
FOV: 90mm
WD: 208±3mm
NA: 0.08
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM125-90-T90-AL Object Field of View(Φmm) 90
Image Circle Diameter (Φmm) 7.2(1/2.5") Best Aperture(f/#) 4.2
Magnification(x) 0.08 MTF30 (lp/mm) >200
Working Distance(mm) 208±3 Depth of Field(mm) ±68.7@F11
NA 0.08 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 428±3
Mechanical Specifications
Mount C
Length (mm) 163.3

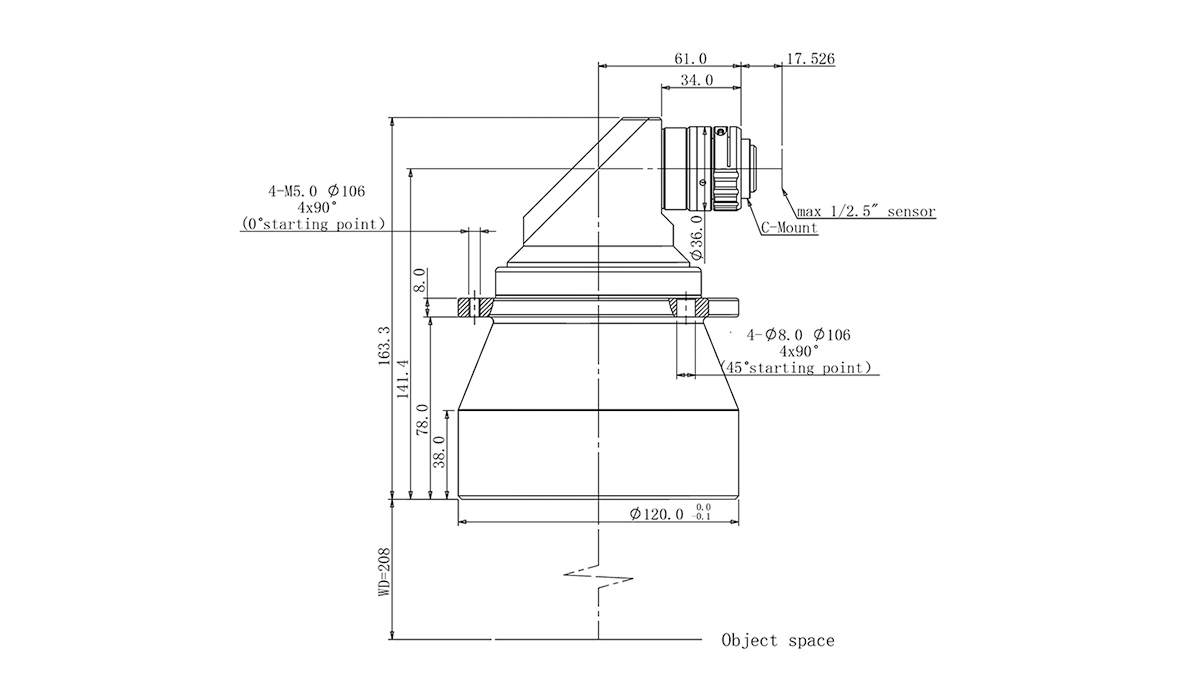

Dimensions
