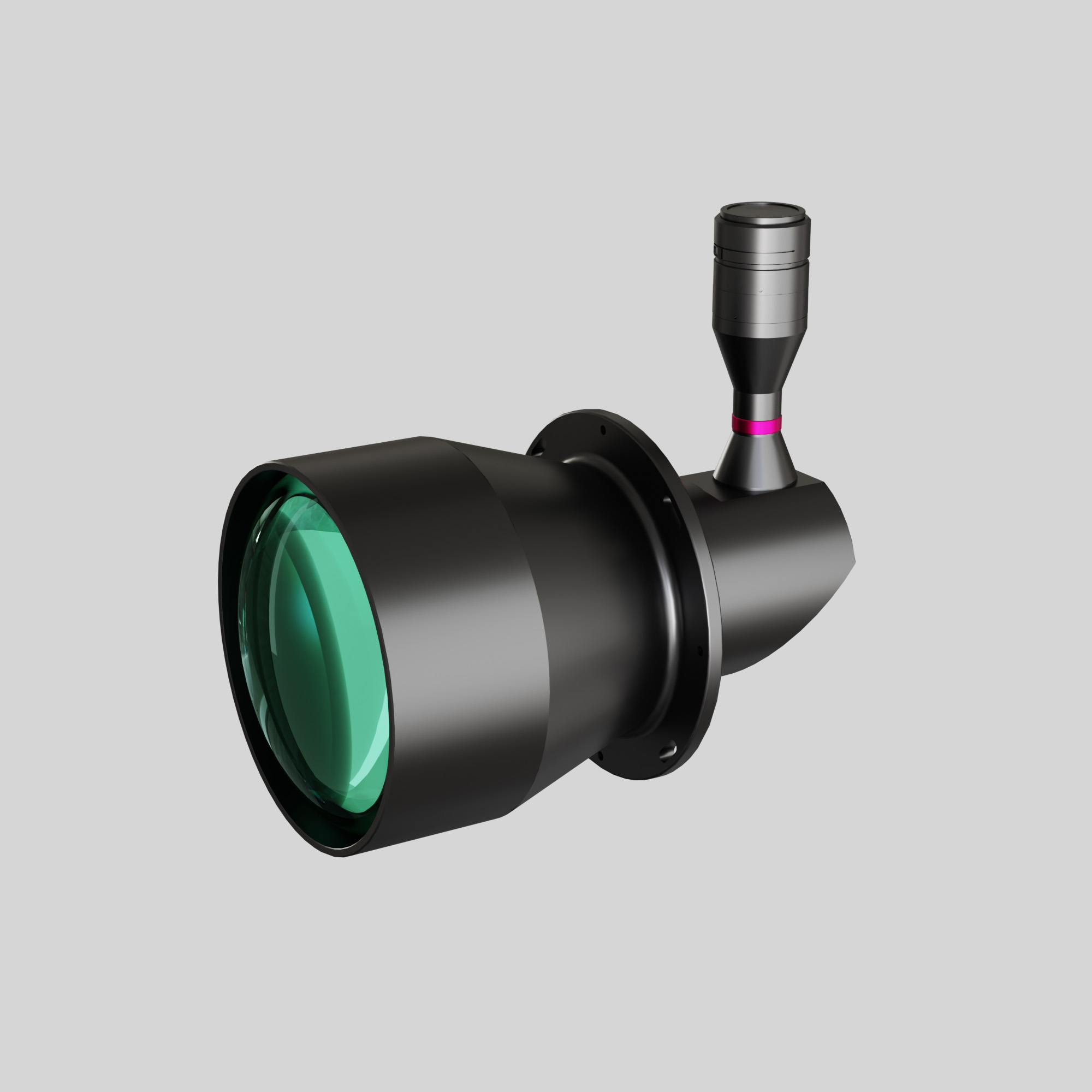

39mm 0.181X 90° Matrix Bi-Telecentric Lenses | DTCM71M-216-T90-M58-AL COOLENS®

Model NO.    :

DTCM71M-216-T90-M58-AL

Image Circle: 39mm
Magnification: 0.181X
FOV: 216mm
WD: 372±5mm
NA: 0.01388
Mount: M58
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM71M-216-T90-M58-AL Magnification(x) 0.181
Object Field of View (Φmm) 216 Working Distance (mm) 372±5
Image Circle Diameter (Φmm) 39 Best Aperture (F/#) 6.9
Telecentricity typical (max) (deg) <0.1 Distortion typical (max) (%) <0.1
MTF30 (lp/mm) >135 Depth of Field (mm) ±13.4@F11
Length of I/O (mm) 996±5
Mechanical Specifications
Mount M58
Length (mm) 245
