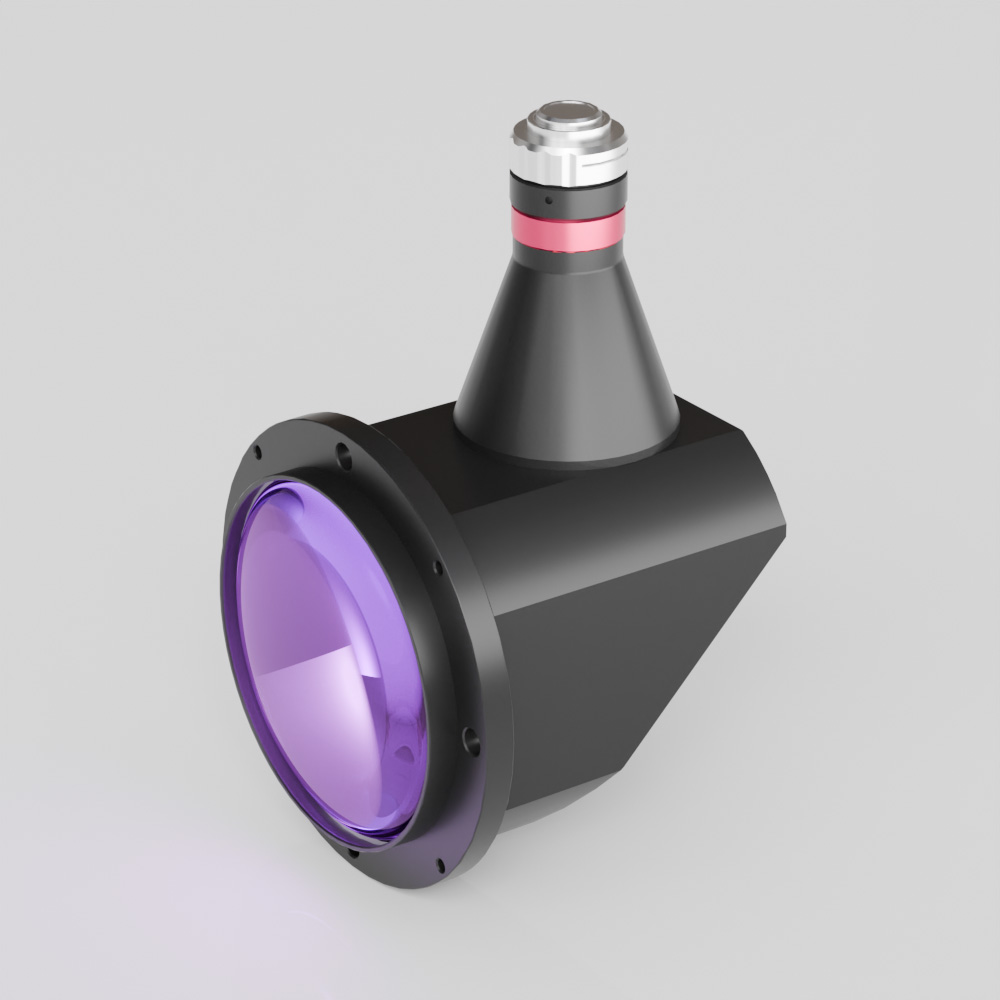

7.2(1/2.5″)mm 0.072X 90° Matrix Bi-Telecentric Lenses | DTCM125-100H-T90-AL COOLENS®

Model NO.    :

DTCM125-100H-T90-AL

Image Circle: 7.2(1/2.5″)mm
Magnification: 0.072X
FOV: 100mm
WD: 238±4mm
NA: 0.072
Mount: C
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM125-100H-T90-AL Object Field of View(Φmm) 100
Image Circle Diameter (Φmm) 7.2(1/2.5") Best Aperture(f/#) 4.2
Magnification(x) 0.072 MTF30 (lp/mm) >210
Working Distance(mm) 238±4 Depth of Field(mm) ±84.8@F11
NA 0.072 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 501±4
Mechanical Specifications
Mount C
Length (mm) 229

Dimensions
