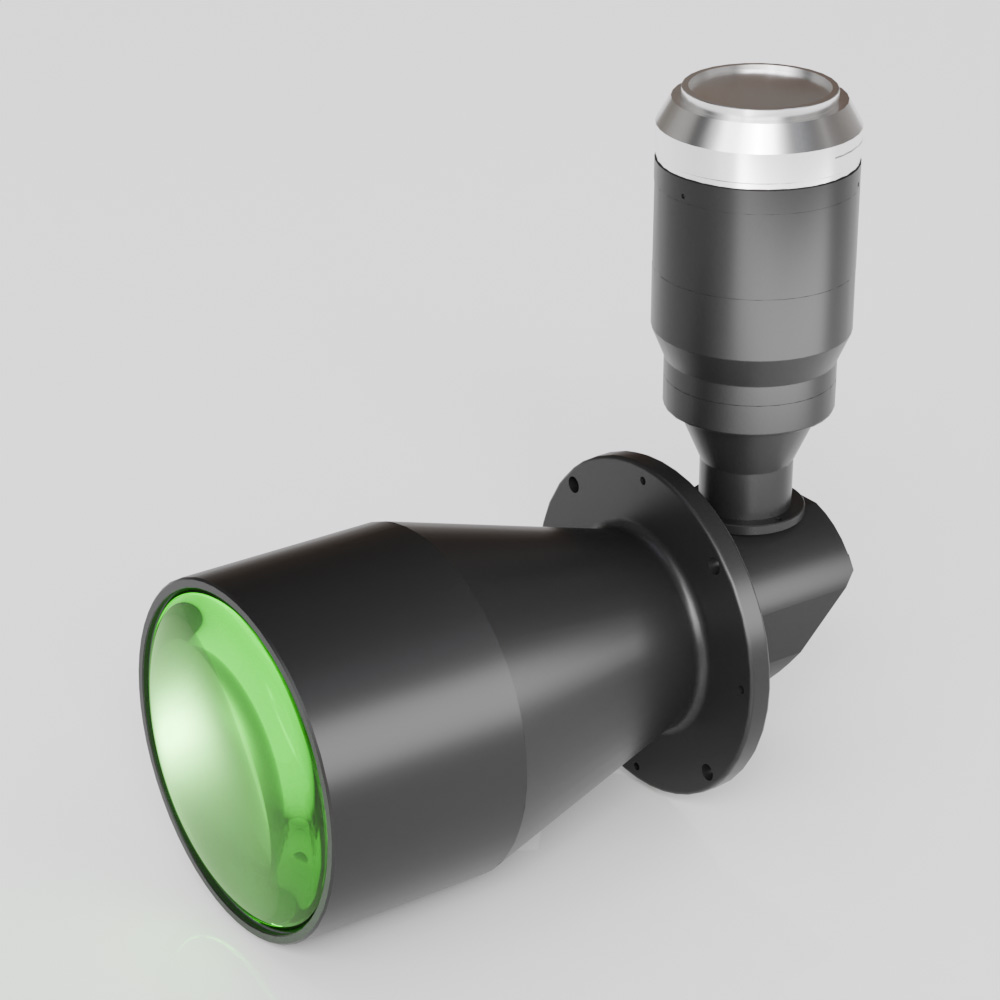

67.6mm 0.497X 90° Matrix Bi-Telecentric Lenses | DTCM150M-136-T90-AL COOLENS®

Model NO.    :

DTCM150M-136-T90-AL

Image Circle: 67.6mm
Magnification: 0.497X
FOV: 136mm
WD: 288±5mm
NA: 0.02032
Mount: M72(19.5)
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM150M-136-T90-AL Object Field of View(Φmm) 136
Image Circle Diameter (Φmm) 67.6 Best Aperture(f/#) 12.2
Magnification(x) 0.497 MTF30 (lp/mm) >70
Working Distance(mm) 288±5 Depth of Field(mm) ±3.2@F20
NA 0.02032 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 850±5
Mechanical Specifications
Mount M72(19.5)
Length (mm) 323.6

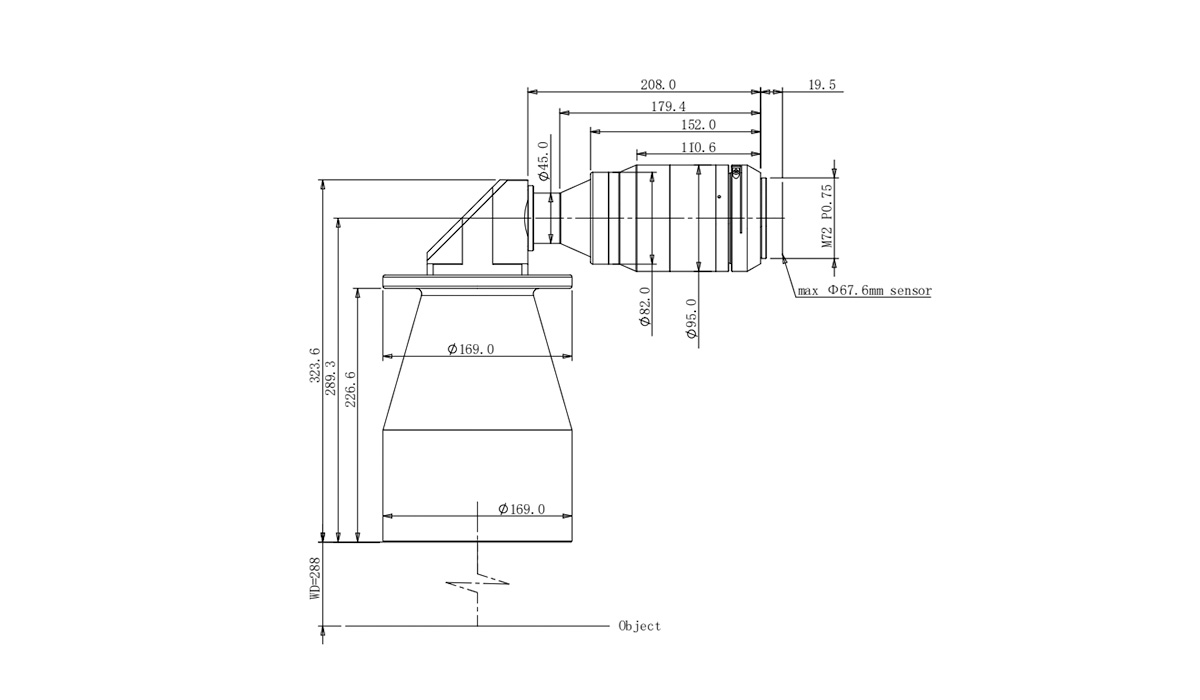

Dimensions
