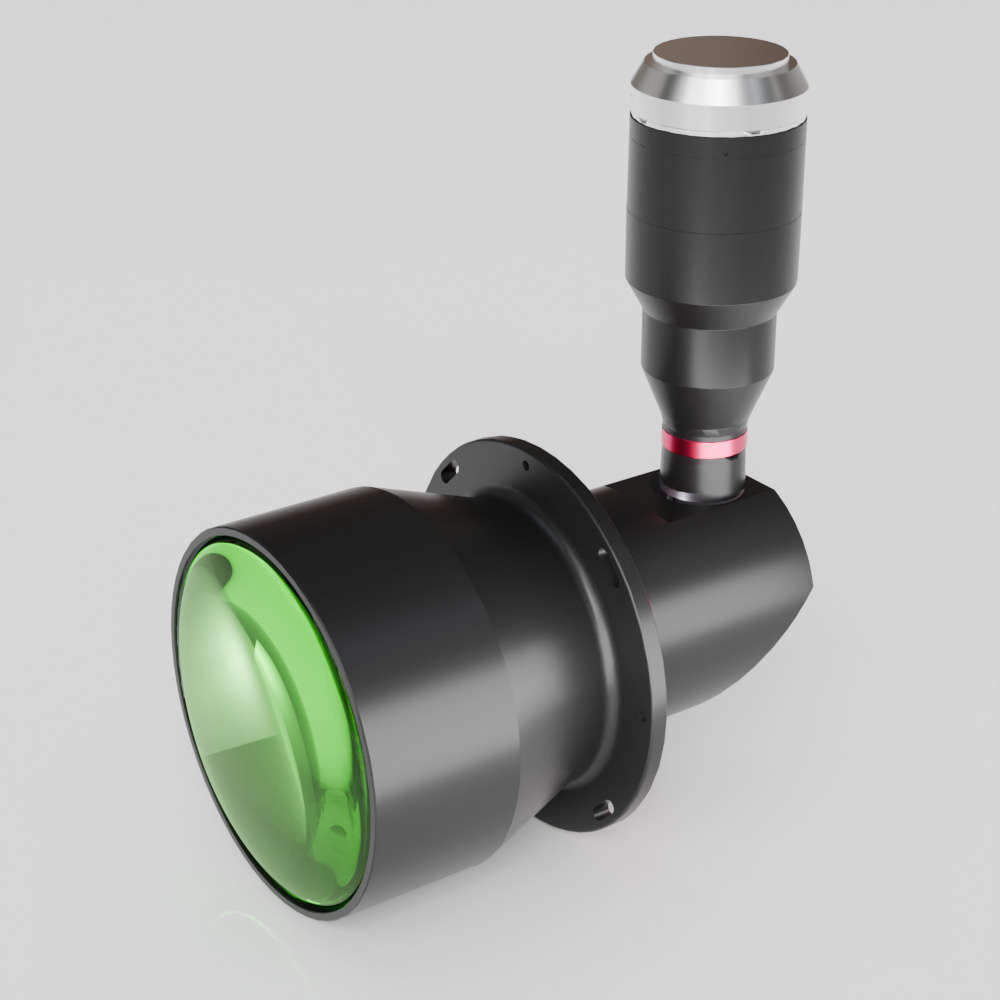

67.6mm 0.398X 90° Matrix Bi-Telecentric Lenses | DTCM150M-170-T90-AL COOLENS®

Model NO.    :

DTCM150M-170-T90-AL

Image Circle: 67.6mm
Magnification: 0.398X
FOV: 170mm
WD: 318±5mm
NA: 0.02125
Mount: M72(19.5)
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM150M-170-T90-AL Object Field of View(Φmm) 170
Image Circle Diameter (Φmm) 67.6 Best Aperture(f/#) 9.4
Magnification(x) 0.398 MTF30 (lp/mm) >88
Working Distance(mm) 318±5 Depth of Field(mm) ±2.4@F9.4
NA 0.02125 Distortion Typical(% max) <0.05
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.05
Length of I/O(mm) 911±5
Mechanical Specifications
Mount M72(19.5)
Length (mm) 296

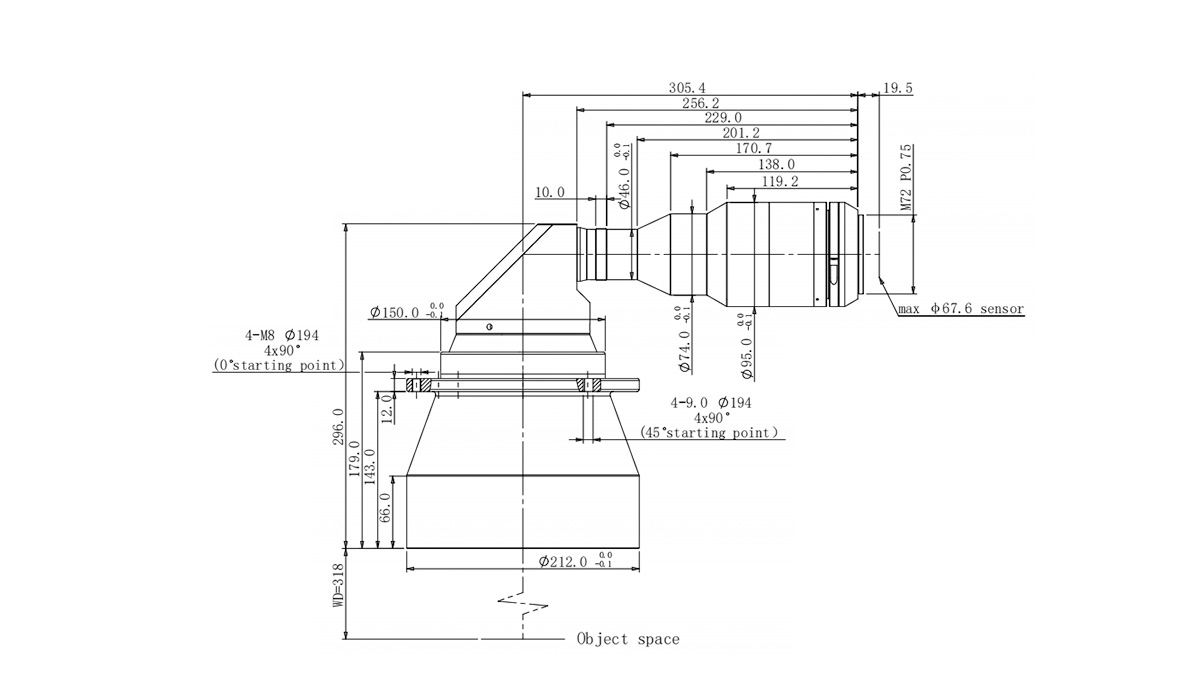

Dimensions
