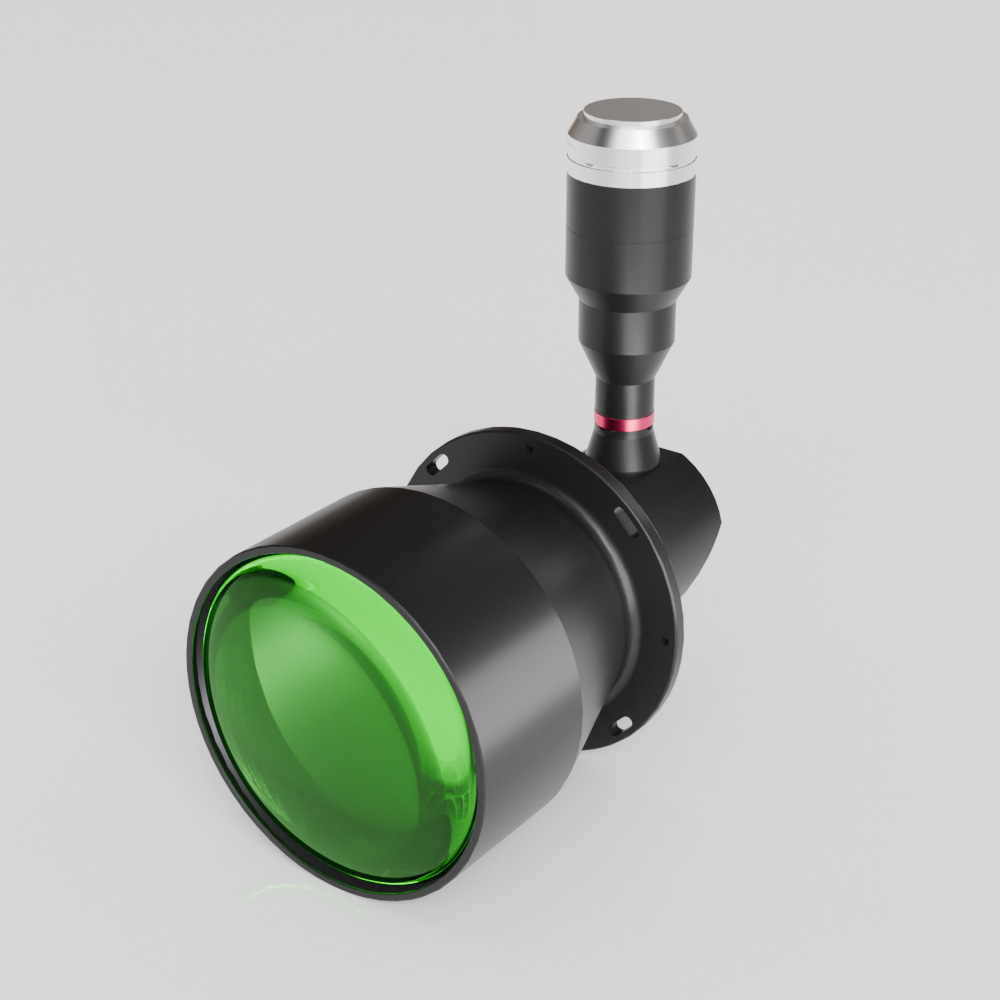

67.6mm 0.313X 90° Matrix Bi-Telecentric Lenses | DTCM150M-216-T90-AL COOLENS®

Model NO.    :

DTCM150M-216-T90-AL

Image Circle: 67.6mm
Magnification: 0.313X
FOV: 216mm
WD: 372±5mm
NA: 0.01968
Mount: M72(19.5)
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM150M-216-T90-AL Object Field of View(Φmm) 216
Image Circle Diameter (Φmm) 67.6 Best Aperture(f/#) 7.9
Magnification(x) 0.313 MTF30 (lp/mm) >100
Working Distance(mm) 372±5 Depth of Field(mm) ±6.5@F16
NA 0.01968 Distortion Typical(% max) <0.03
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.05
Length of I/O(mm) 1088±5
Mechanical Specifications
Mount M72(19.5)
Length (mm) 420.3

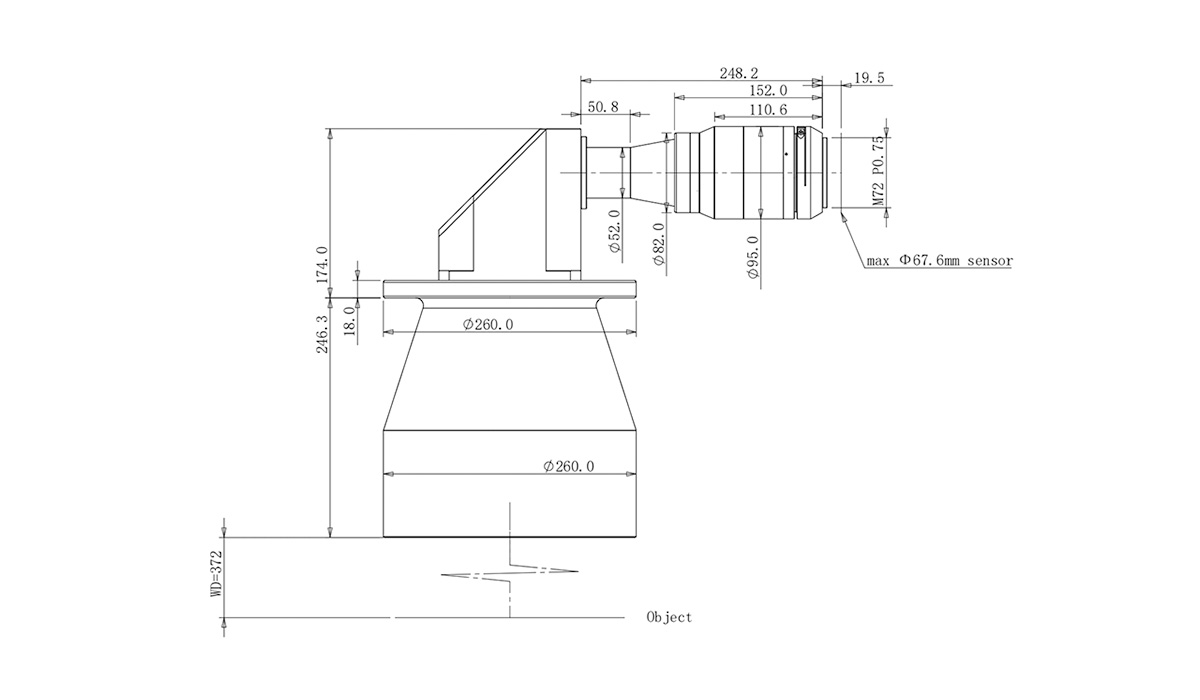

Dimensions
