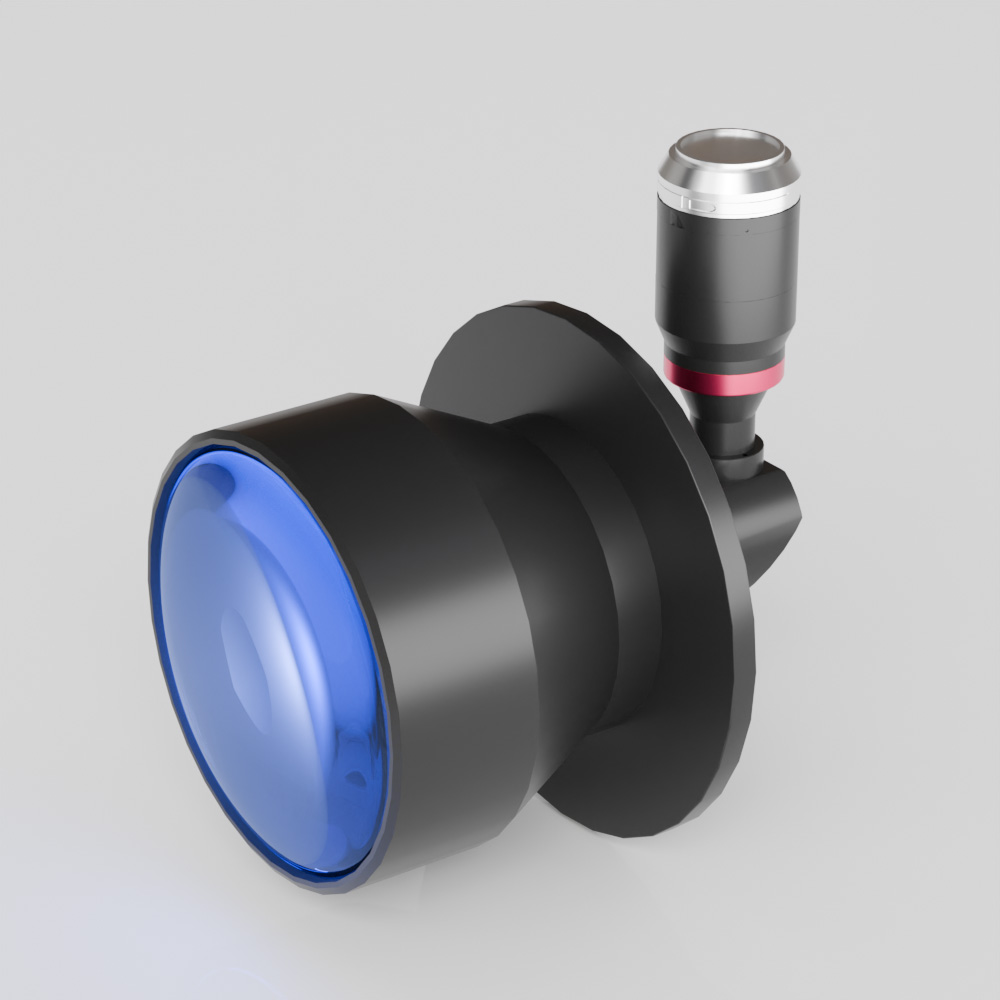

67.6mm 0.262X 90° Matrix Bi-Telecentric Lenses | DTCM150M-258-T90-AL COOLENS®

Model NO.    :

DTCM150M-258-T90-AL

Image Circle: 67.6mm
Magnification: 0.262X
FOV: 258mm
WD: 338±5mm
NA: 0.01483
Mount: M72(19.5)
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM150M-258-T90-AL Object Field of View(Φmm) 258
Image Circle Diameter (Φmm) 67.6 Best Aperture(f/#) 8.8
Magnification(x) 0.262 MTF30 (lp/mm) >95
Working Distance(mm) 338±5 Depth of Field(mm) ±5.1@F8.8
NA 0.01483 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.05
Length of I/O(mm) 897±5
Mechanical Specifications
Mount M72(19.5)
Length (mm) 385.7

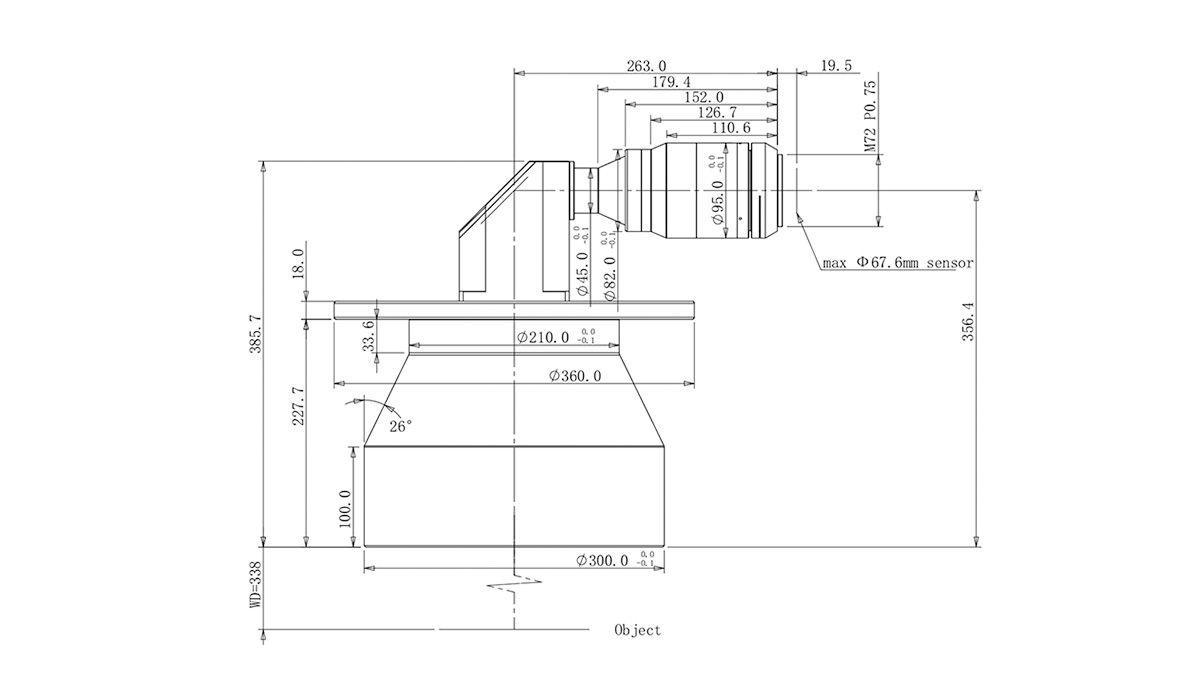

Dimensions
