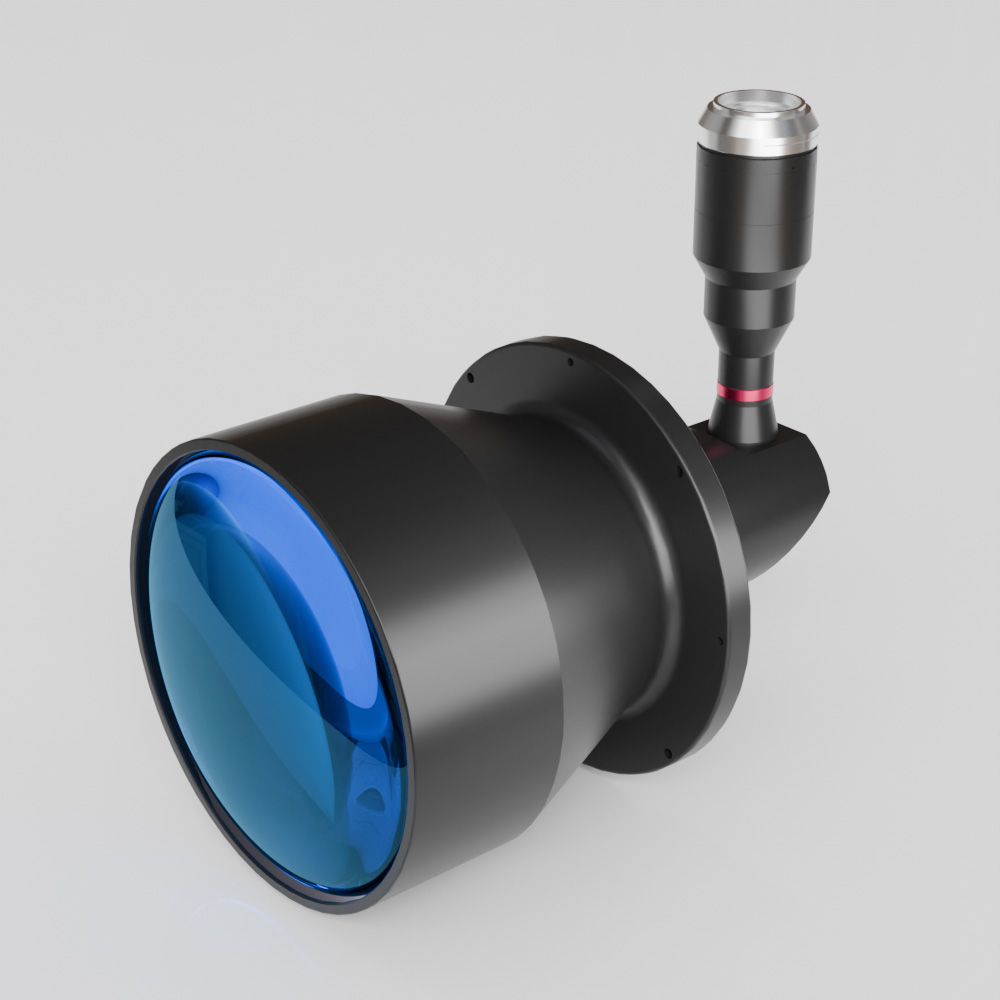

67.6mm 0.225X 90° Matrix Bi-Telecentric Lenses | DTCM150M-300S-T90-M72-19.5-AL COOLENS®

Model NO.    :

DTCM150M-300S-T90-M72-19.5-AL

Image Circle: 67.6mm
Magnification: 0.225X
FOV: 300mm
WD: 465±6mm
NA: 0.01091
Mount: M72(19.5)
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM150M-300S-T90-M72-19.5-AL Object Field of View(Φmm) 300
Image Circle Diameter (Φmm) 67.6 Best Aperture(f/#) 6.6
Magnification(x) 0.225 MTF30 (lp/mm) >98
Working Distance(mm) 465±6 Depth of Field(mm) ±5.2@F6.6
NA 0.01091 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 1305±6
Mechanical Specifications
Mount M72(19.5)
Length (mm) 523.3

Dimensions
