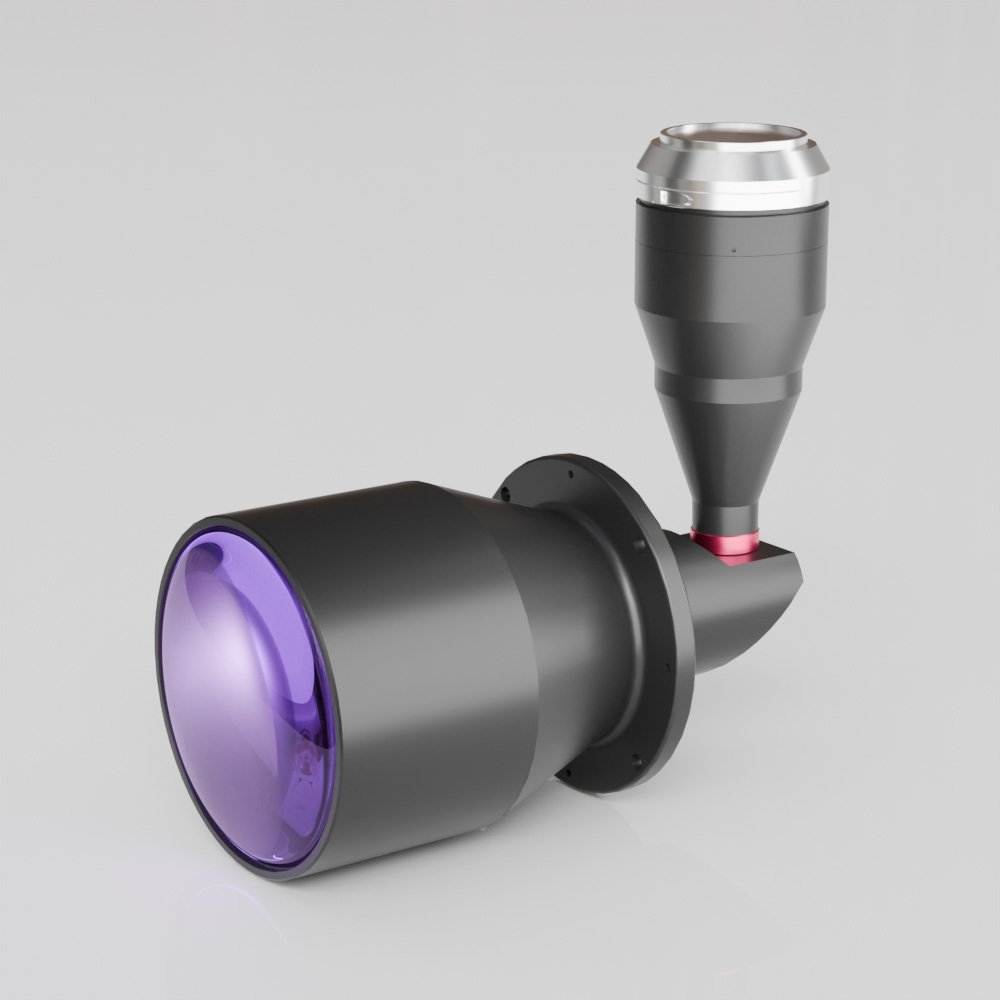

59mm 0.434X 90° Matrix Bi-Telecentric Lenses | DTCM16K-136-T90-AL COOLENS®

Model NO.    :

DTCM16K-136-T90-AL

Image Circle: 59mm
Magnification: 0.434X
FOV: 136mm
WD: 288±5mm
NA: 0.02125
Mount: M72(12)
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM16K-136-T90-AL Object Field of View(Φmm) 136
Image Circle Diameter (Φmm) 59 Best Aperture(f/#) 10.7
Magnification(x) 0.434 MTF30 (lp/mm) >80
Working Distance(mm) 288±5 Depth of Field(mm) ±4.2@F20
NA 0.02125 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 813±5
Mechanical Specifications
Mount M72(12)
Length (mm) 304.7

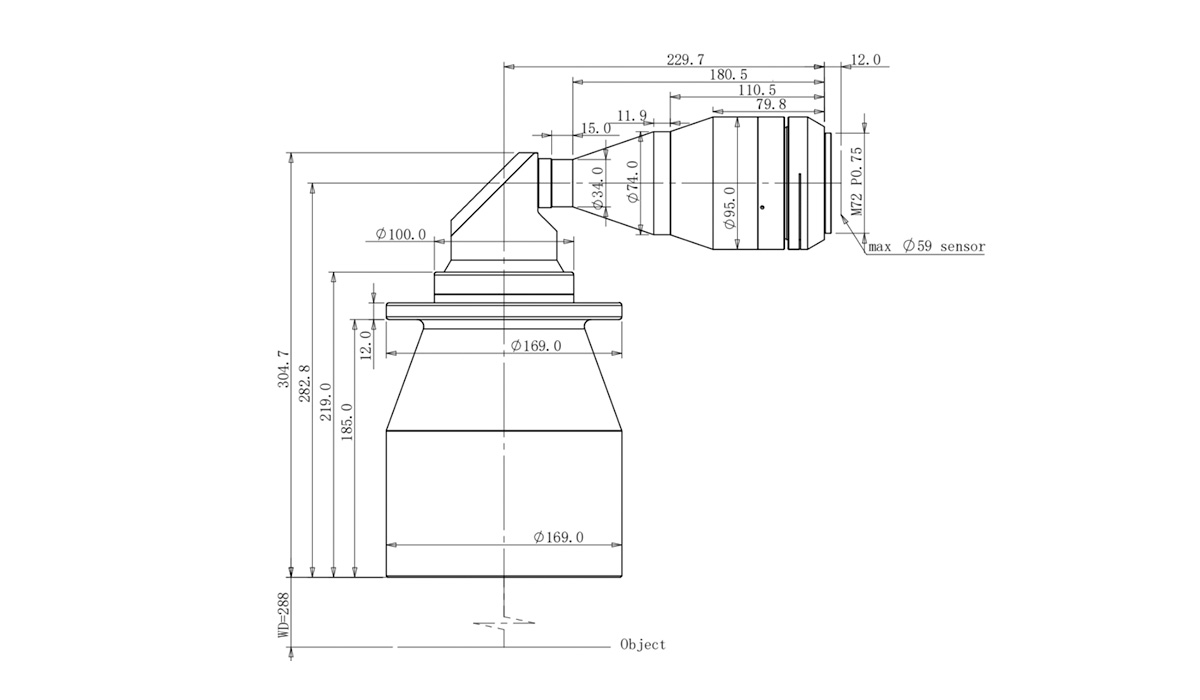

Dimensions
