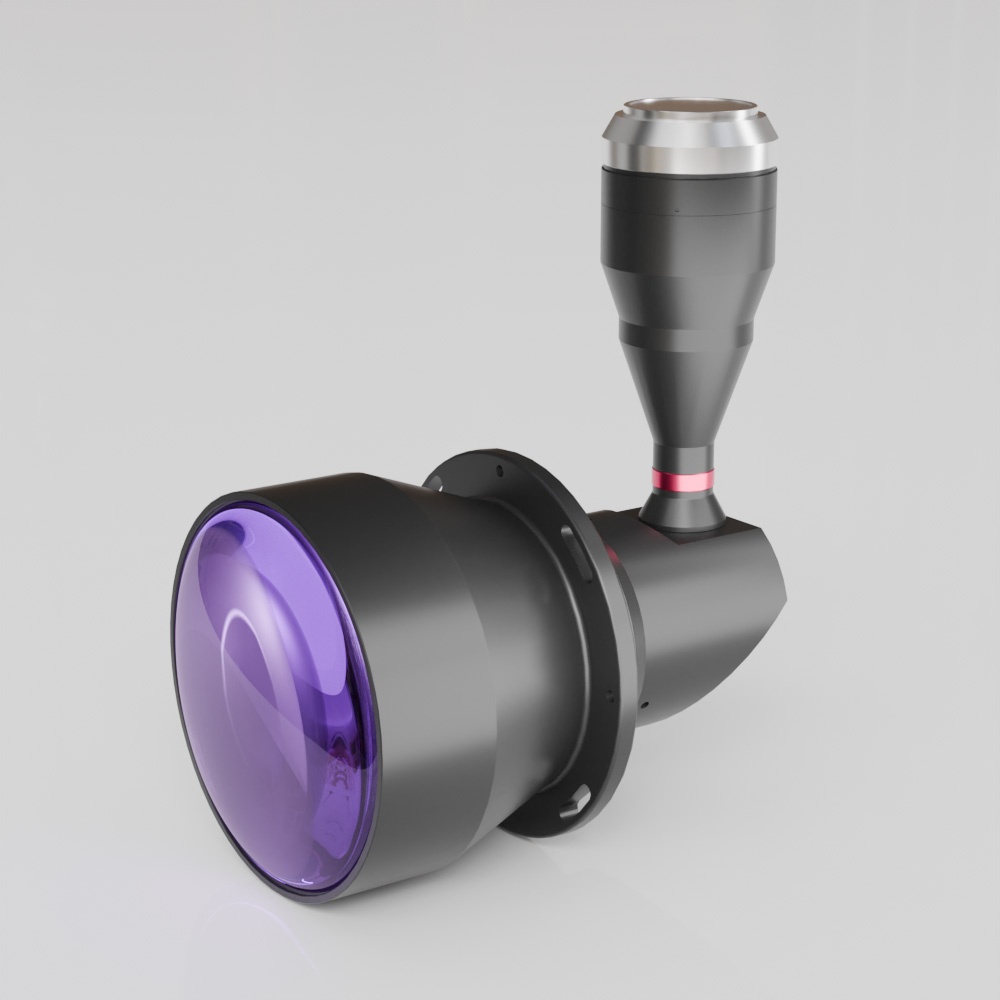

59mm 0.347X 90° Matrix Bi-Telecentric Lenses | DTCM16K-170-T90-M72-AL COOLENS®
Model NO. :
DTCM16K-170-T90-M72-AL
Image Circle: 59mm
Magnification: 0.347X
FOV: 170mm
WD: 318±5mm
NA: 0.02032
Mount: M72(12)
Type: 90° Matrix Bi-Telecentric Lenses
Model No. | DTCM16K-170-T90-M72-AL | Object Field of View(Φmm) | 170 | ||||
Image Circle Diameter (Φmm) | 59 | Best Aperture(f/#) | 8.7 | ||||
Magnification(x) | 0.347 | MTF30 (lp/mm) | >90 | ||||
Working Distance(mm) | 318±5 | Depth of Field(mm) | ±5.3@F16 | ||||
NA | 0.02032 | Distortion Typical(% max) | <0.1 | ||||
Type | 90° Matrix Bi-Telecentric Lenses | Telecentricity Typical (°max) | <0.1 | ||||
Length of I/O(mm) | 874±5 | ||||||

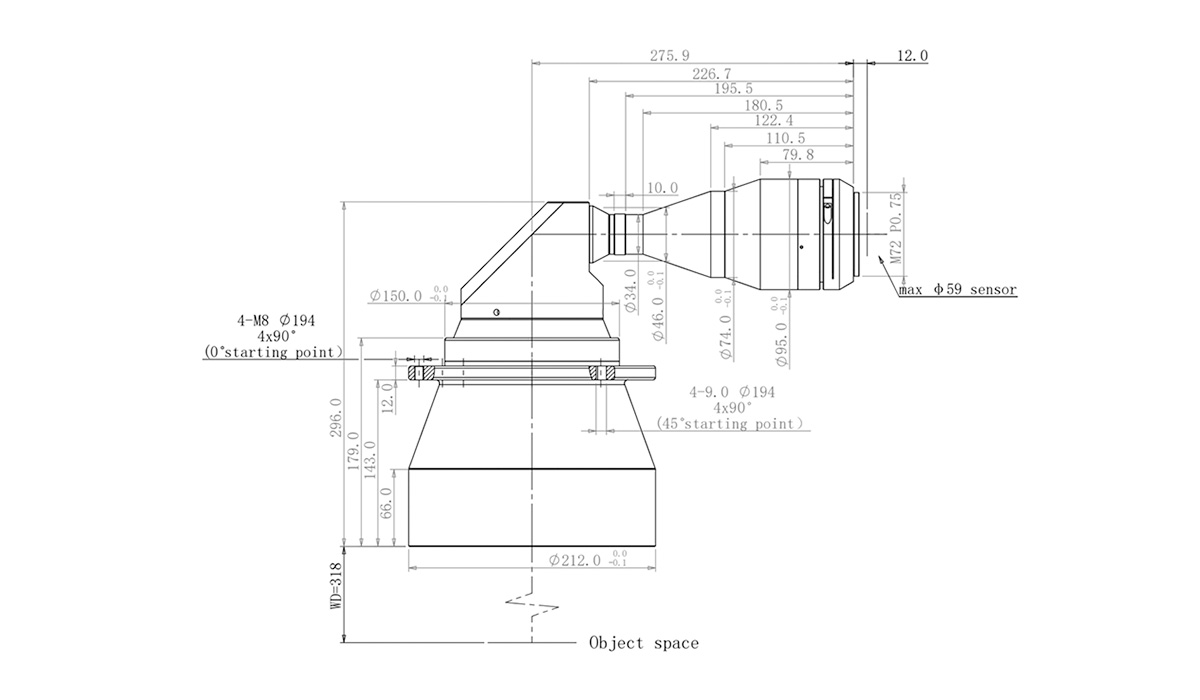

Mechanical Specifications | |||||||
Mount | M72(12) | ||||||
Length (mm) | 296 |
