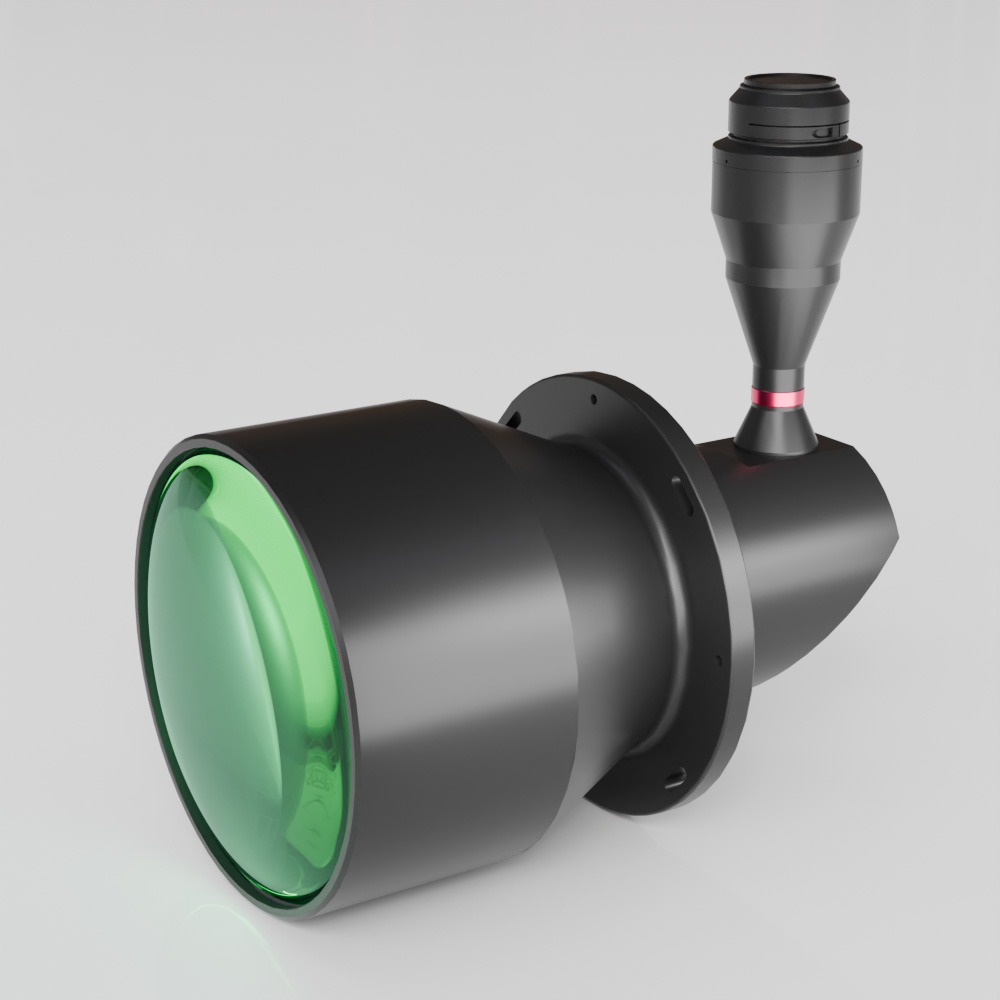

59mm 0.246X 90° Matrix Bi-Telecentric Lenses | DTCM16K-240H-T90-M58-AL COOLENS®
Model NO. :
DTCM16K-240H-T90-M58-AL
Image Circle: 59mm
Magnification: 0.246X
FOV: 240mm
WD: 410±6mm
NA: 0.01417
Mount: M72(12)
Type: 90° Matrix Bi-Telecentric Lenses
Model No. | DTCM16K-240H-T90-M58-AL | Object Field of View(Φmm) | 240 | ||||
Image Circle Diameter (Φmm) | 59 | Best Aperture(f/#) | 8.7 | ||||
Magnification(x) | 0.246 | MTF30 (lp/mm) | >100 | ||||
Working Distance(mm) | 410±6 | Depth of Field(mm) | ±14.6@F22 | ||||
NA | 0.01417 | Distortion Typical(% max) | <0.1 | ||||
Type | 90° Matrix Bi-Telecentric Lenses | Telecentricity Typical (°max) | <0.1 | ||||
Length of I/O(mm) | 1135±6 | ||||||

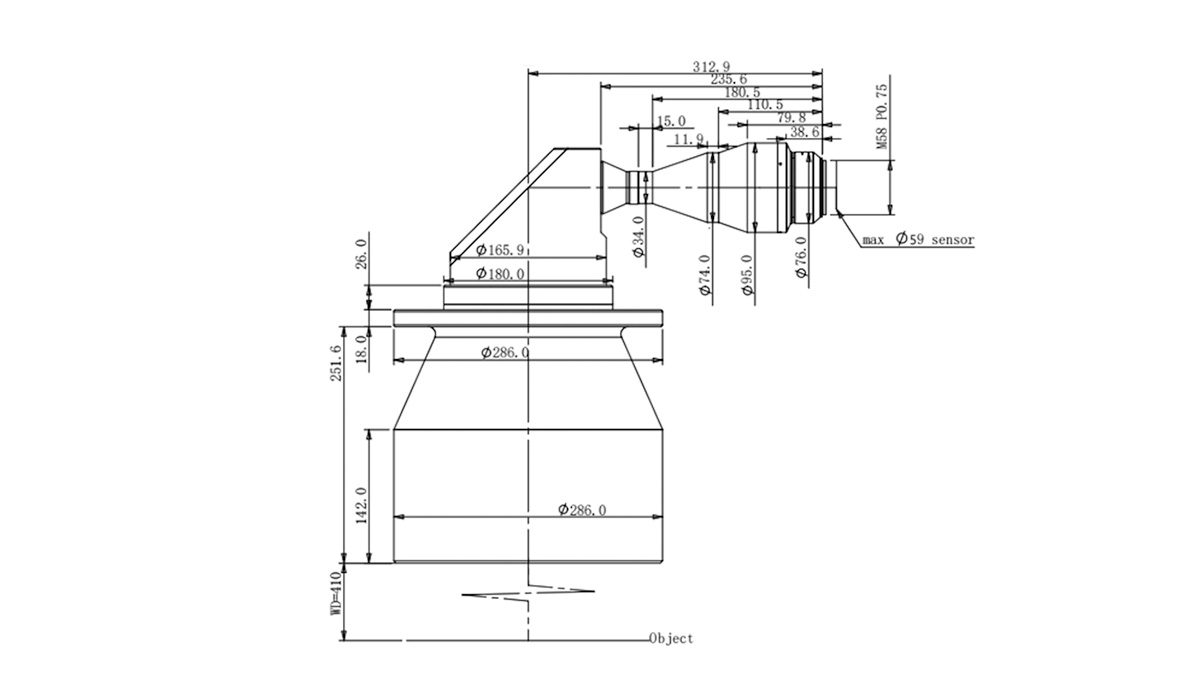

Mechanical Specifications | |||||||
Mount | M72(12) | ||||||
Length (mm) | 455.9 |
