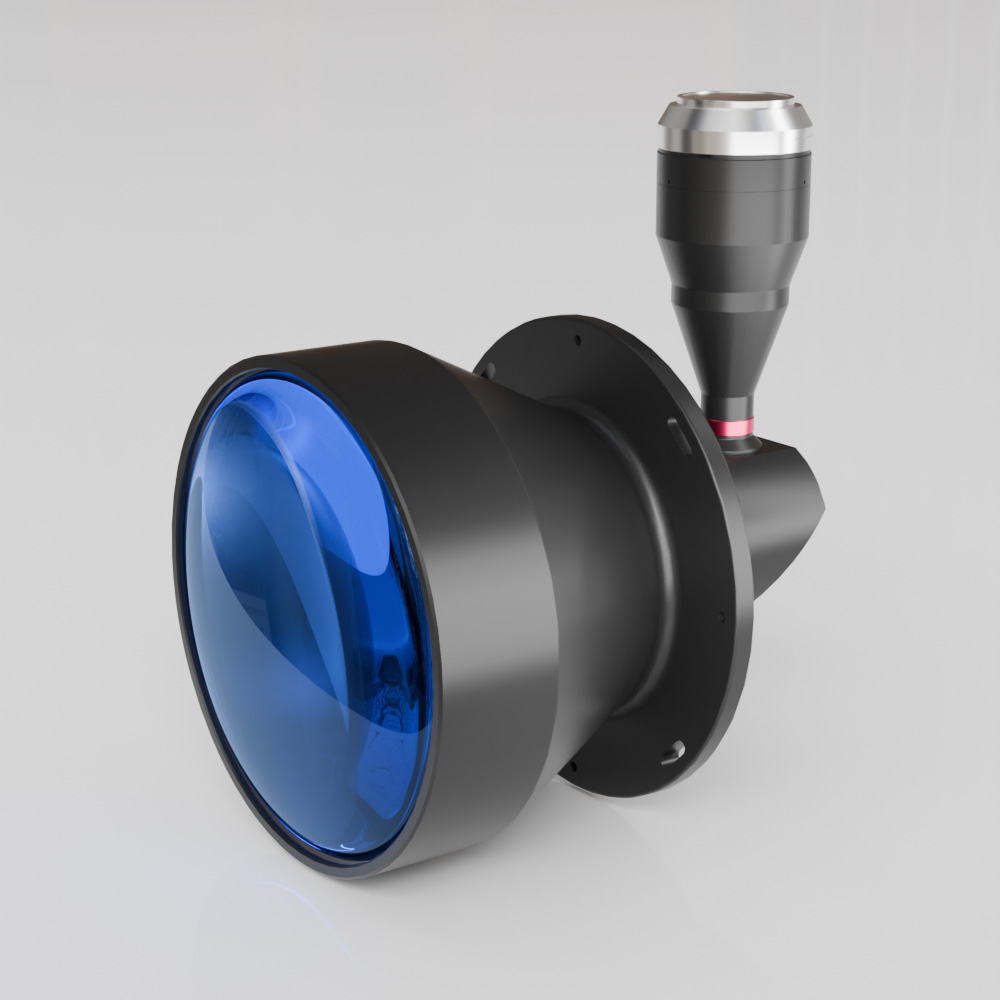

59mm 0.229X 90° Matrix Bi-Telecentric Lenses | DTCM16K-258-T90-AL COOLENS®

Model NO.    :

DTCM16K-258-T90-AL

Image Circle: 59mm
Magnification: 0.229X
FOV: 258mm
WD: 338±5mm
NA: 0.01318
Mount: M72(12)
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM16K-258-T90-AL Object Field of View(Φmm) 258
Image Circle Diameter (Φmm) 59 Best Aperture(f/#) 8.7
Magnification(x) 0.229 MTF30 (lp/mm) >100
Working Distance(mm) 338±5 Depth of Field(mm) ±12.2@F16
NA 0.01318 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 940±5
Mechanical Specifications
Mount M72(12)
Length (mm) 420.2

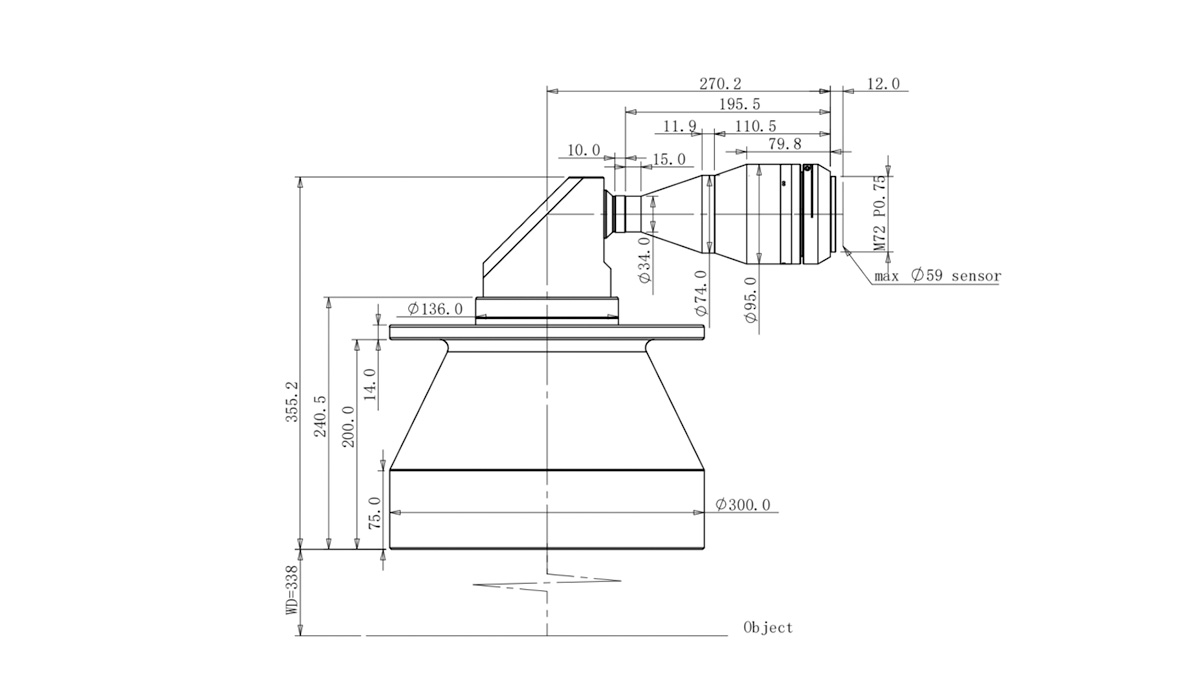

Dimensions

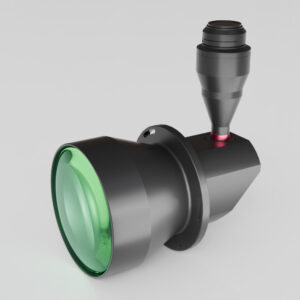

Recently Viewed Products
