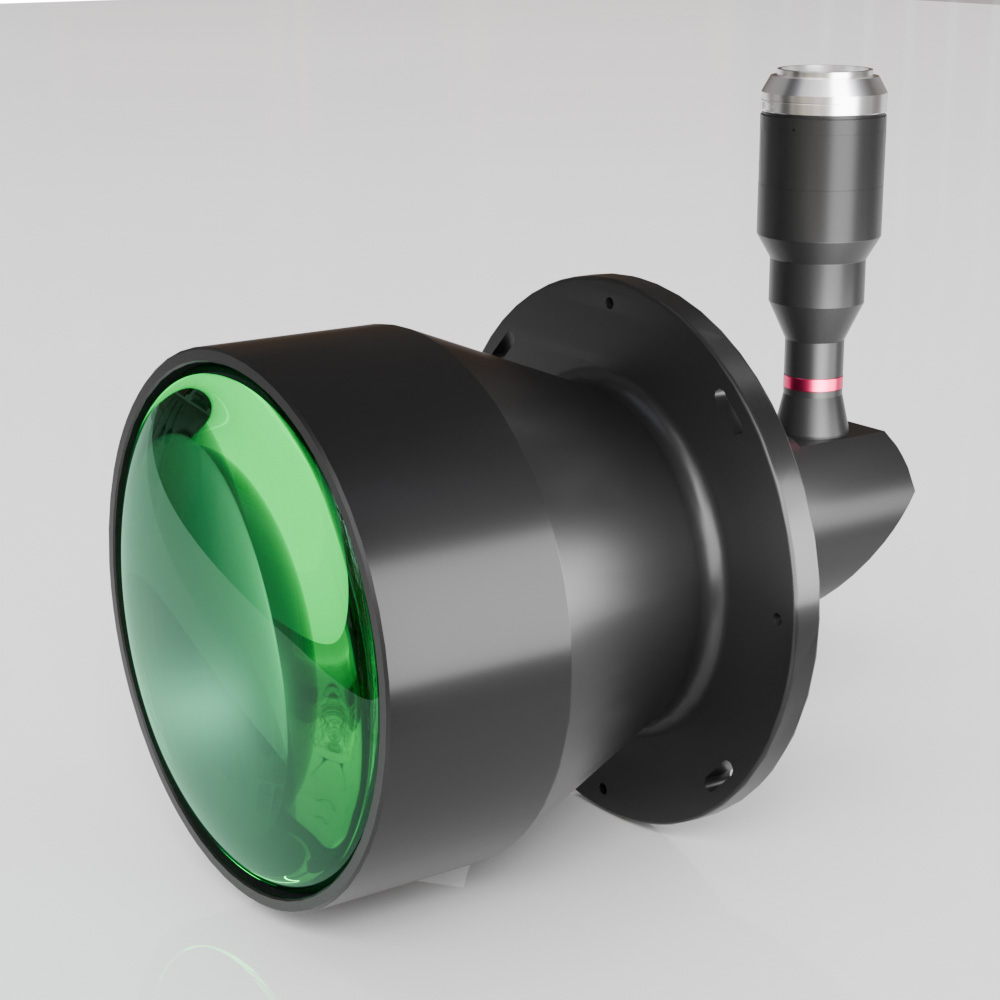

59mm 0.197X 90° Matrix Bi-Telecentric Lenses | DTCM16K-300S-T90-M72-AL COOLENS®

Model NO.    :

DTCM16K-300S-T90-M72-AL

Image Circle: 59mm
Magnification: 0.197X
FOV: 300mm
WD: 465±6mm
NA: 0.01091
Mount: M72(12)
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM16K-300S-T90-M72-AL Object Field of View(Φmm) 300
Image Circle Diameter (Φmm) 59 Best Aperture(f/#) 9
Magnification(x) 0.197 MTF30 (lp/mm) >95
Working Distance(mm) 465±6 Depth of Field(mm) ±20.6@F20
NA 0.01091 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 1268±6
Mechanical Specifications
Mount M72(12)
Length (mm) 523.3

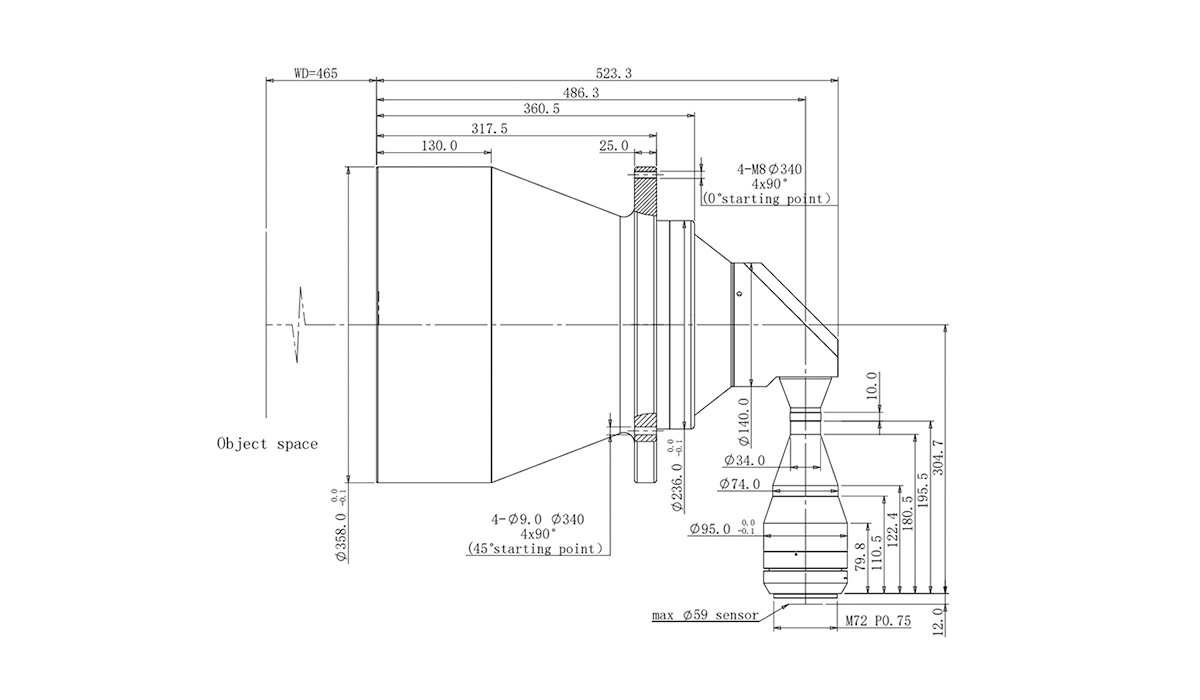

Dimensions
