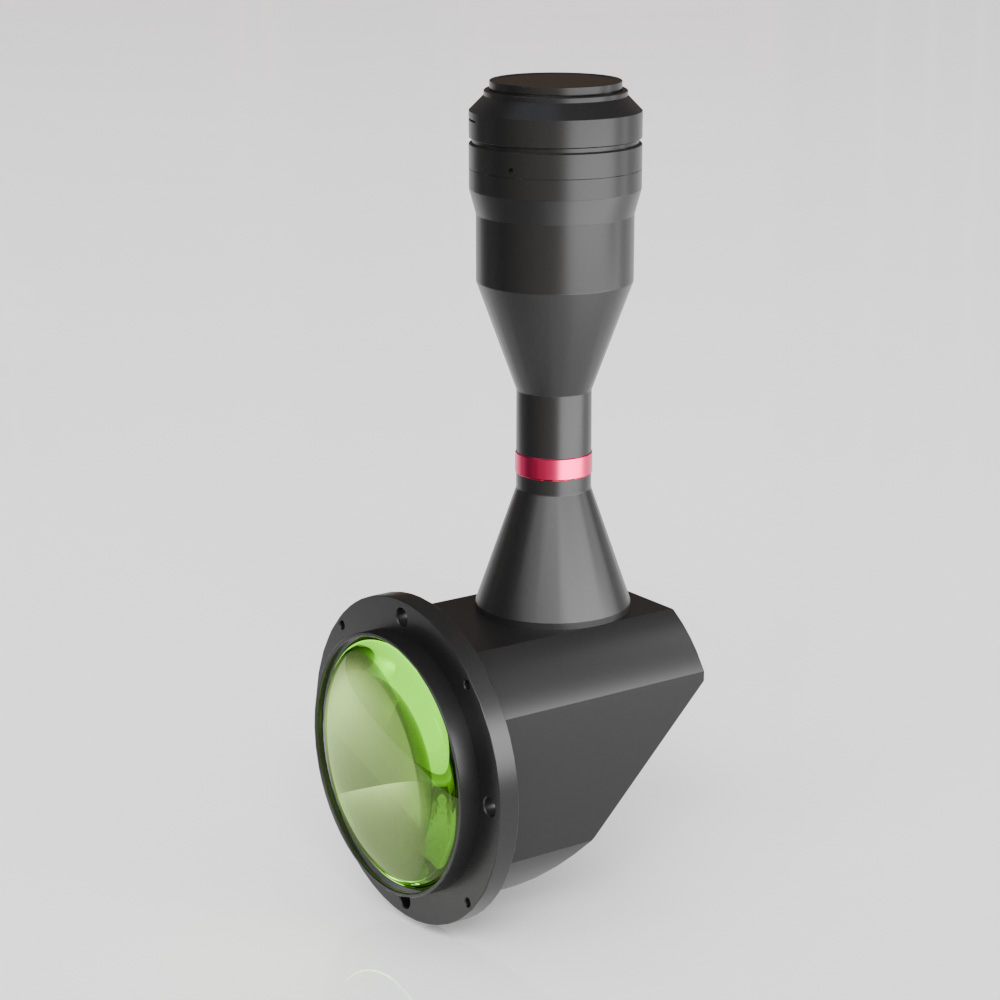

43.6(35mm Full)mm 0.436X 90° Matrix Bi-Telecentric Lenses | DTCM35FH-100H-T90-M58-AL COOLENS®

Model NO.    :

DTCM35FH-100H-T90-M58-AL

Image Circle: 43.6(35mm Full)mm
Magnification: 0.436X
FOV: 100mm
WD: 238±4mm
NA: 0.436
Mount: M58
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM35FH-100H-T90-M58-AL Object Field of View(Φmm) 100
Image Circle Diameter (Φmm) 43.6(35mm Full) Best Aperture(f/#) 10.3
Magnification(x) 0.436 MTF30 (lp/mm) >91
Working Distance(mm) 238±4 Depth of Field(mm) ±4.2@F20
NA 0.436 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 634±4
Mechanical Specifications
Mount M58
Length (mm) 330.3

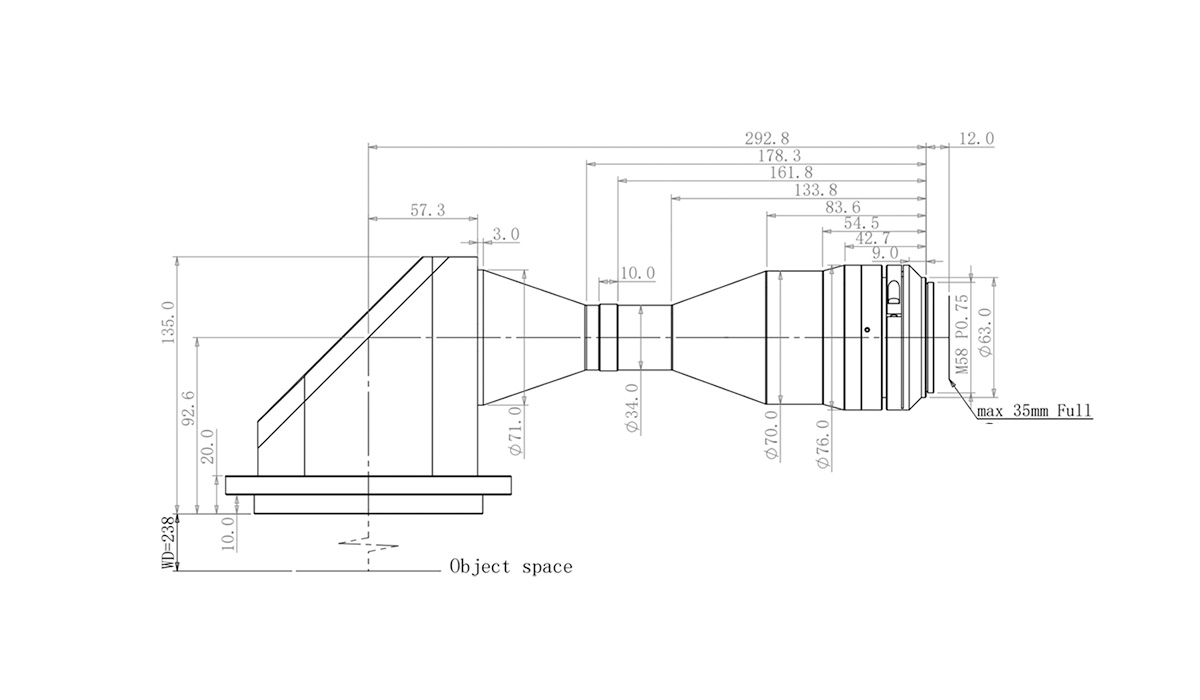

Dimensions
