43.6(35mm Full)mm 0.3235X 90° Matrix Bi-Telecentric Lenses | DTCM35FH-136H-T90-M58-AL COOLENS®

Model NO.    :

DTCM35FH-136H-T90-M58-AL

Image Circle: 43.6(35mm Full)mm
Magnification: 0.3235X
FOV: 136mm
WD: 682±5mm
NA: 0.3235
Mount: M58
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM35FH-136H-T90-M58-AL Object Field of View(Φmm) 136
Image Circle Diameter (Φmm) 43.6(35mm Full) Best Aperture(f/#) 10.3
Magnification(x) 0.3235 MTF30 (lp/mm) 80
Working Distance(mm) 682±5 Depth of Field(mm) ±4@F10.3
NA 0.3235 Distortion Typical(% max) ≤0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) ≤0.1
Length of I/O(mm) 1136.3±5
Mechanical Specifications
Mount M58
Length (mm) 252.6

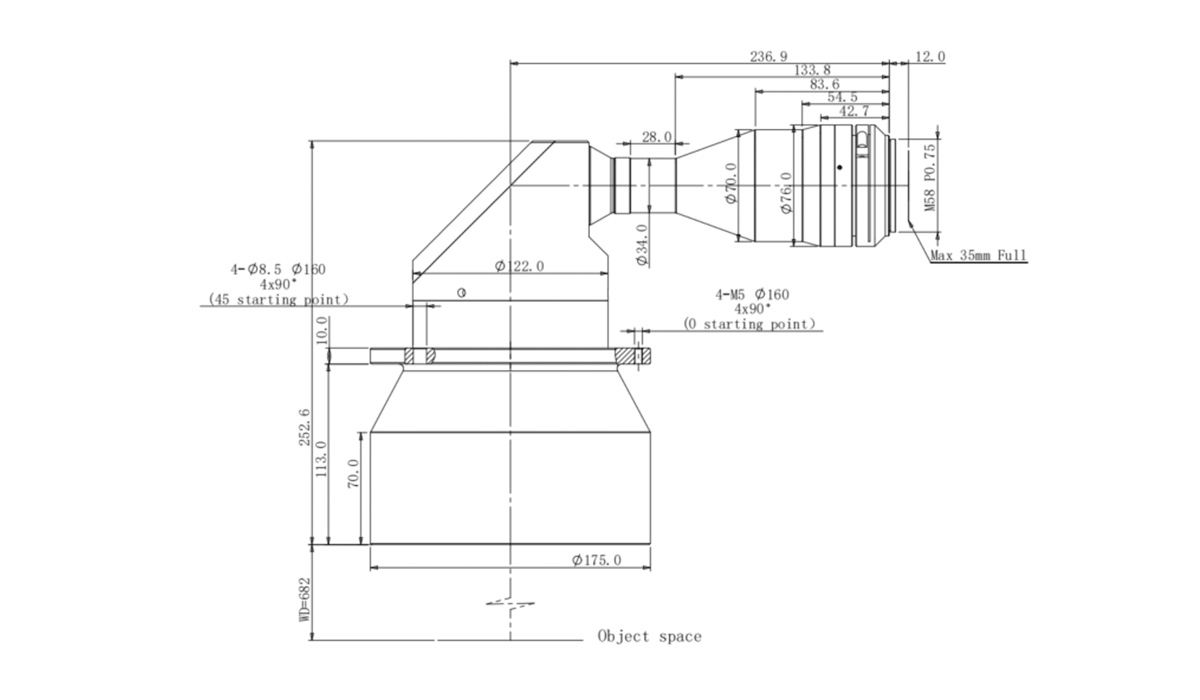

Dimensions
