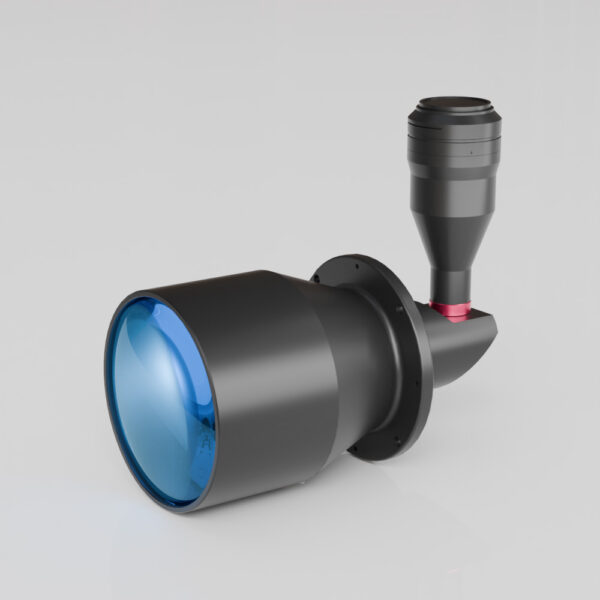

43.6(35mm Full)mm 0.321X 90° Matrix Bi-Telecentric Lenses | DTCM35FH-136-T90-M58-AL COOLENS®
Model NO. :
DTCM35FH-136-T90-M58-AL
Image Circle: 43.6(35mm Full)mm
Magnification: 0.321X
FOV: 136mm
WD: 288±5mm
NA: 0.321
Mount: M58
Type: 90° Matrix Bi-Telecentric Lenses
Model No. | DTCM35FH-136H-T90-M58-AL | Object Field of View(Φmm) | 136 | ||||
Image Circle Diameter (Φmm) | 43.6(35mm Full) | Best Aperture(f/#) | 10.3 | ||||
Magnification(x) | 0.3235 | MTF30 (lp/mm) | 80 | ||||
Working Distance(mm) | 682±5 | Depth of Field(mm) | ±4@F10.3 | ||||
NA | 0.3235 | Distortion Typical(% max) | ≤0.1 | ||||
Type | 90° Matrix Bi-Telecentric Lenses | Telecentricity Typical (°max) | ≤0.1 | ||||
Length of I/O(mm) | 1136.3±5 | ||||||
Mechanical Specifications | |||||||
Mount | M58 | ||||||
Length (mm) | 252.6 |
