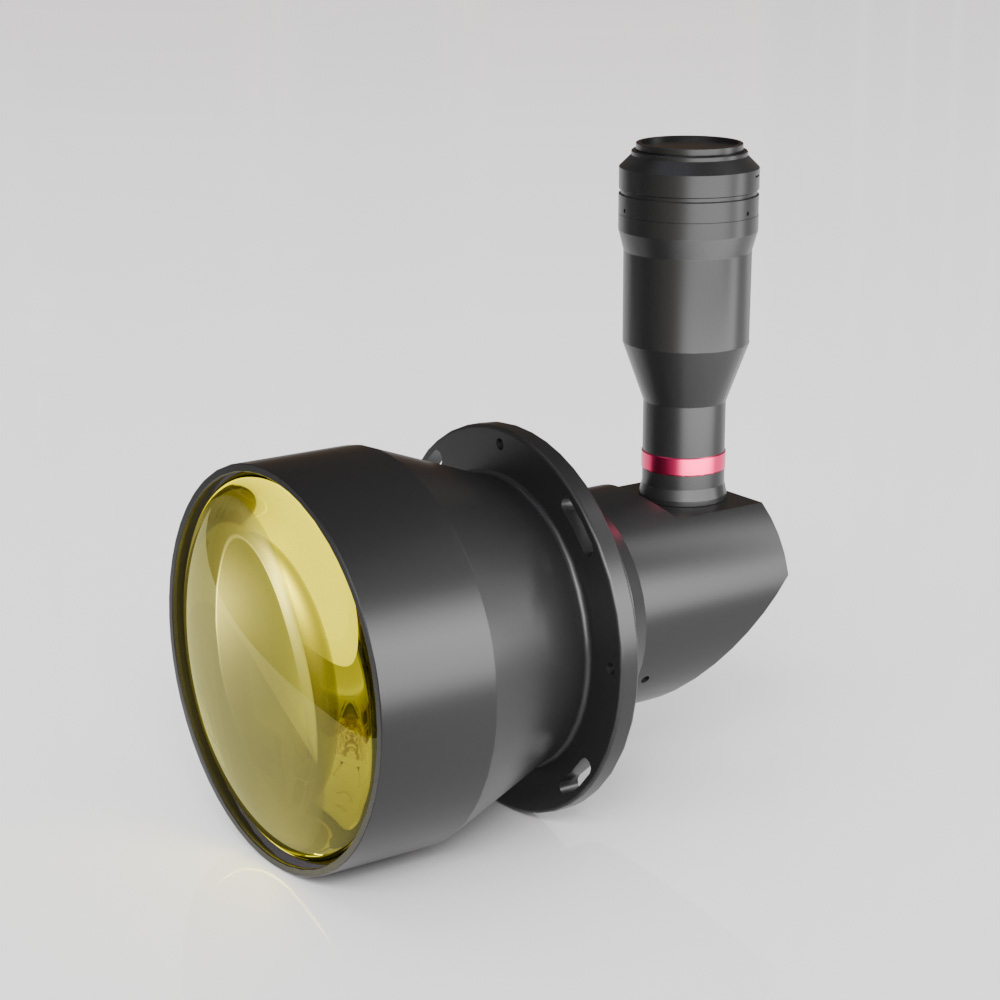

43.6(35mm Full)mm 0.256X 90° Matrix Bi-Telecentric Lenses | DTCM35FH-170-T90-M58-AL COOLENS®

Model NO.    :

DTCM35FH-170-T90-M58-AL

Image Circle: 43.6(35mm Full)mm
Magnification: 0.256X
FOV: 170mm
WD: 318±5mm
NA: 0.256
Mount: M58
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM35FH-170-T90-M58-AL Object Field of View(Φmm) 170
Image Circle Diameter (Φmm) 43.6(35mm Full) Best Aperture(f/#) 6
Magnification(x) 0.256 MTF30 (lp/mm) >130
Working Distance(mm) 318±5 Depth of Field(mm) ±6.7@F11
NA 0.256 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 840±5
Mechanical Specifications
Mount M58
Length (mm) 296

Dimensions
