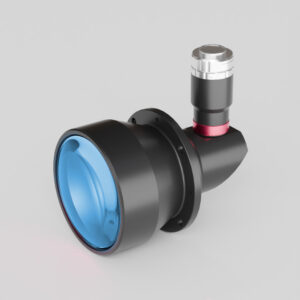

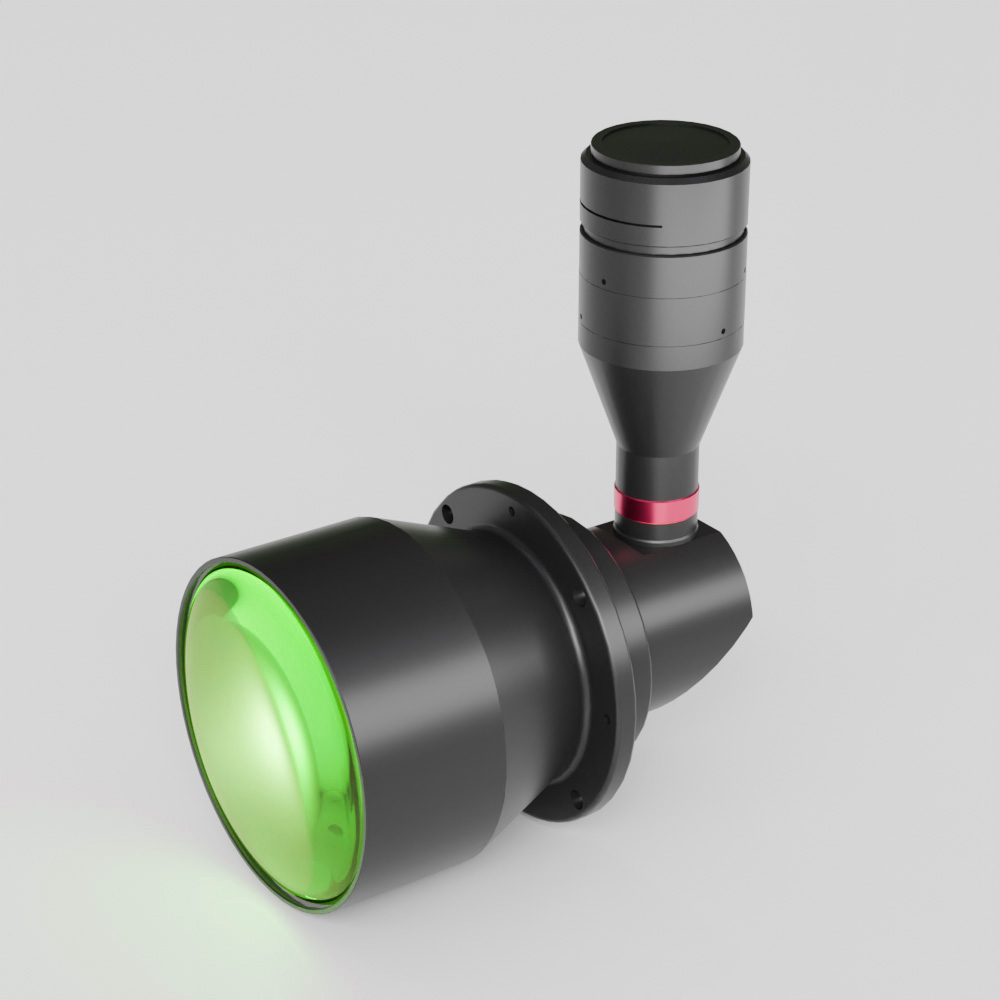

39mm 0.325X 90° Matrix Bi-Telecentric Lenses | DTCM71M-120H-T90-M58-AL COOLENS®

Model NO.    :

DTCM71M-120H-T90-M58-AL

Image Circle: 39mm
Magnification: 0.325X
FOV: 120mm
WD: 273±5mm
NA: 0.325
Mount: M58
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM71M-120H-T90-M58-AL Object Field of View(Φmm) 120
Image Circle Diameter (Φmm) 39 Best Aperture(f/#) 7.6
Magnification(x) 0.325 MTF30 (lp/mm) >115
Working Distance(mm) 273±5 Depth of Field(mm) ±6.1@F16
NA 0.325 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 670±5
Mechanical Specifications
Mount M58
Length (mm) 208.4

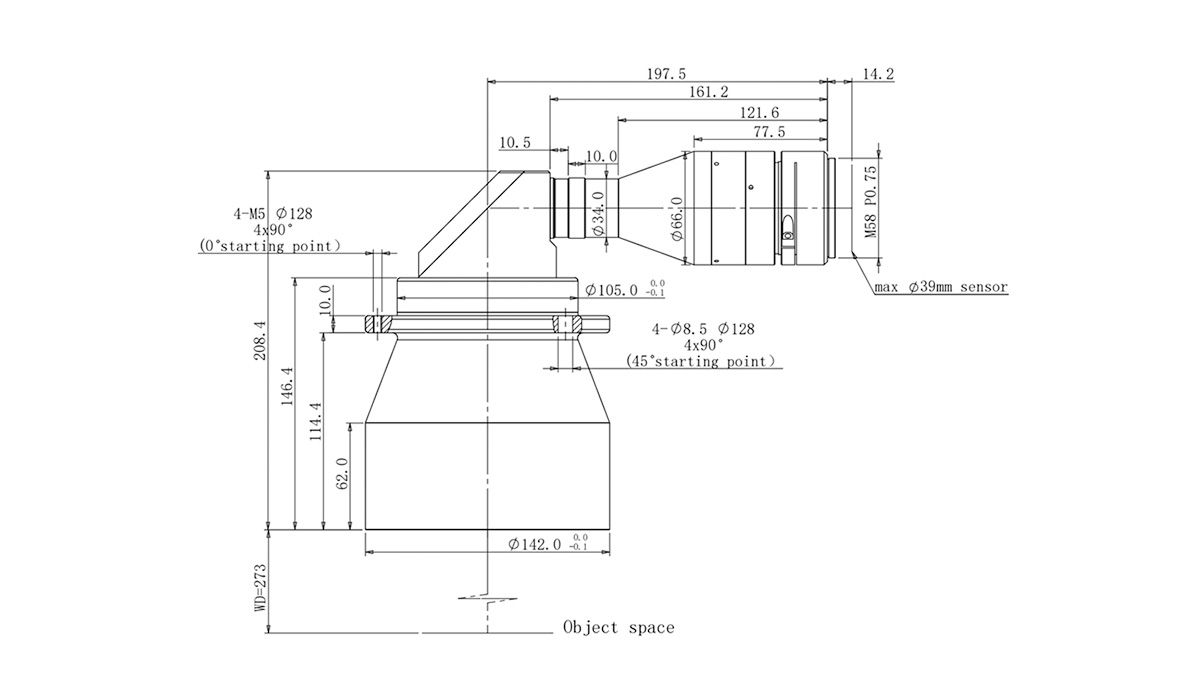

Dimensions
