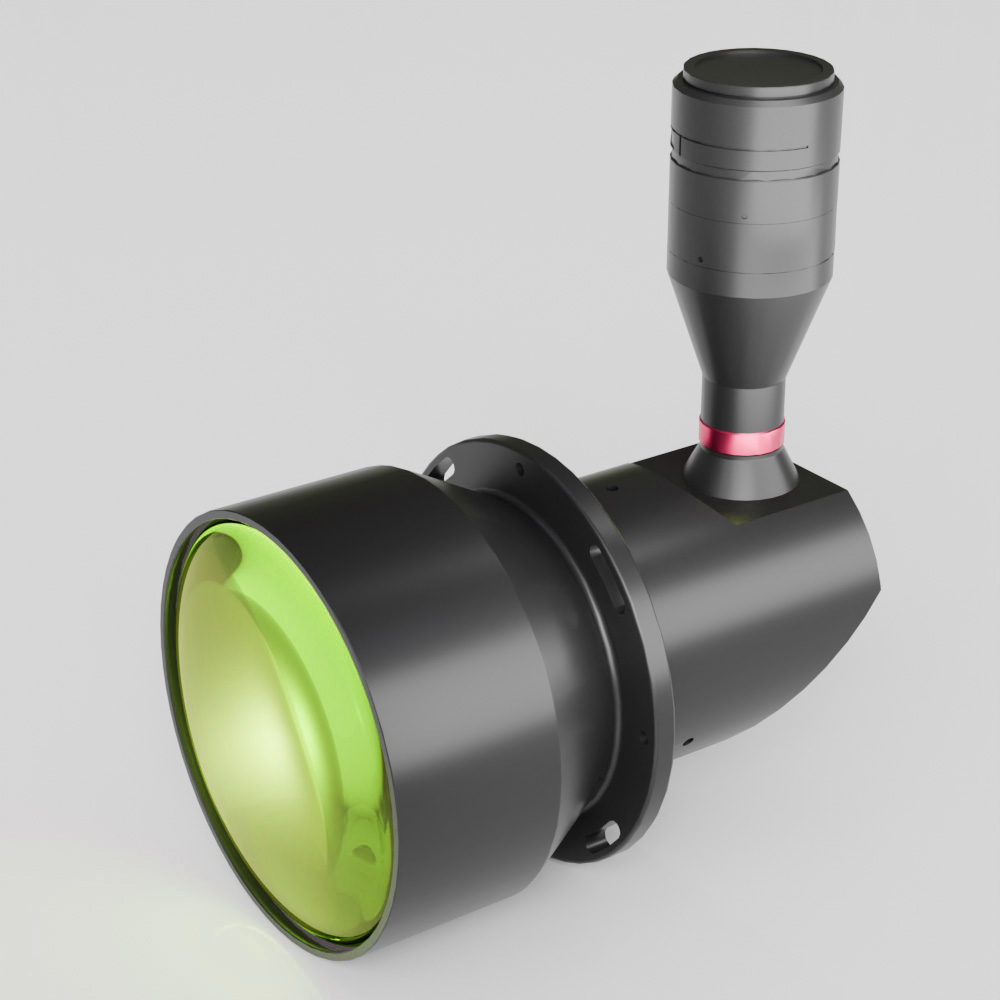

39mm 0.287X 90° Matrix Bi-Telecentric Lenses | DTCM71M-136-T90-M58-AL COOLENS®

Model NO.    :

DTCM71M-136-T90-M58-AL

Image Circle: 39mm
Magnification: 0.287X
FOV: 136mm
WD: 288±5mm
NA: 0.287
Mount: M58
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM71M-136-T90-M58-AL Object Field of View(Φmm) 136
Image Circle Diameter (Φmm) 39 Best Aperture(f/#) 7.1
Magnification(x) 0.287 MTF30 (lp/mm) >120
Working Distance(mm) 288±5 Depth of Field(mm) ±7.8@F16
NA 0.287 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 758±5
Mechanical Specifications
Mount M58
Length (mm) 252.6

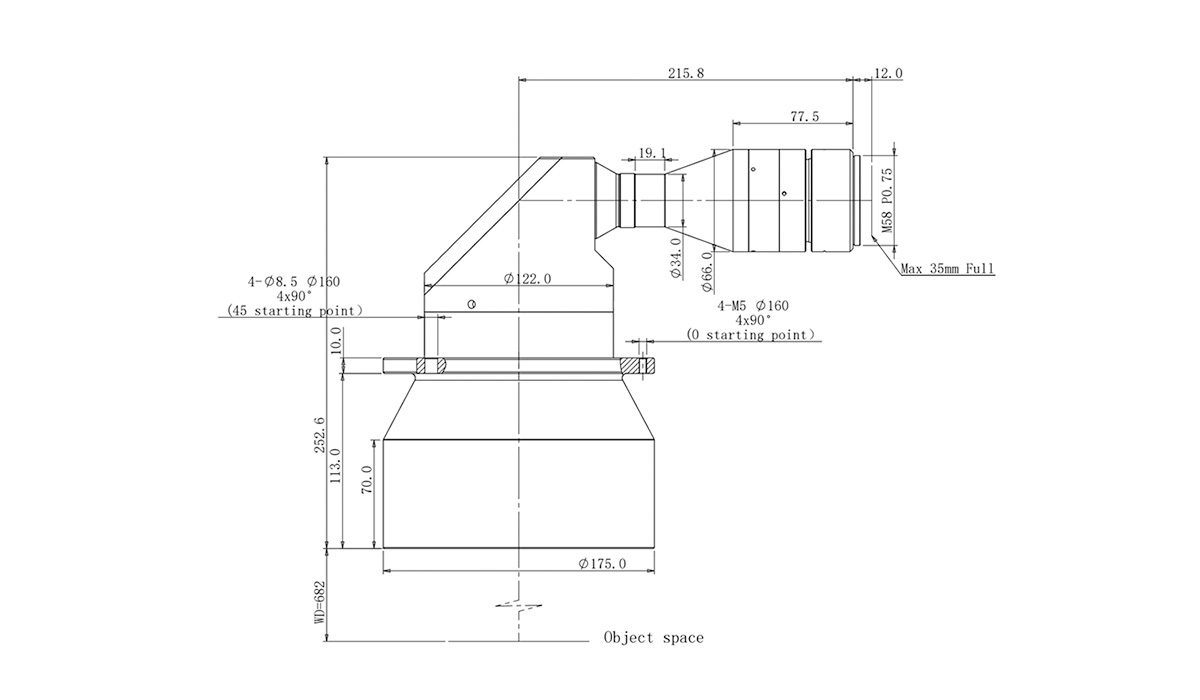

Dimensions
