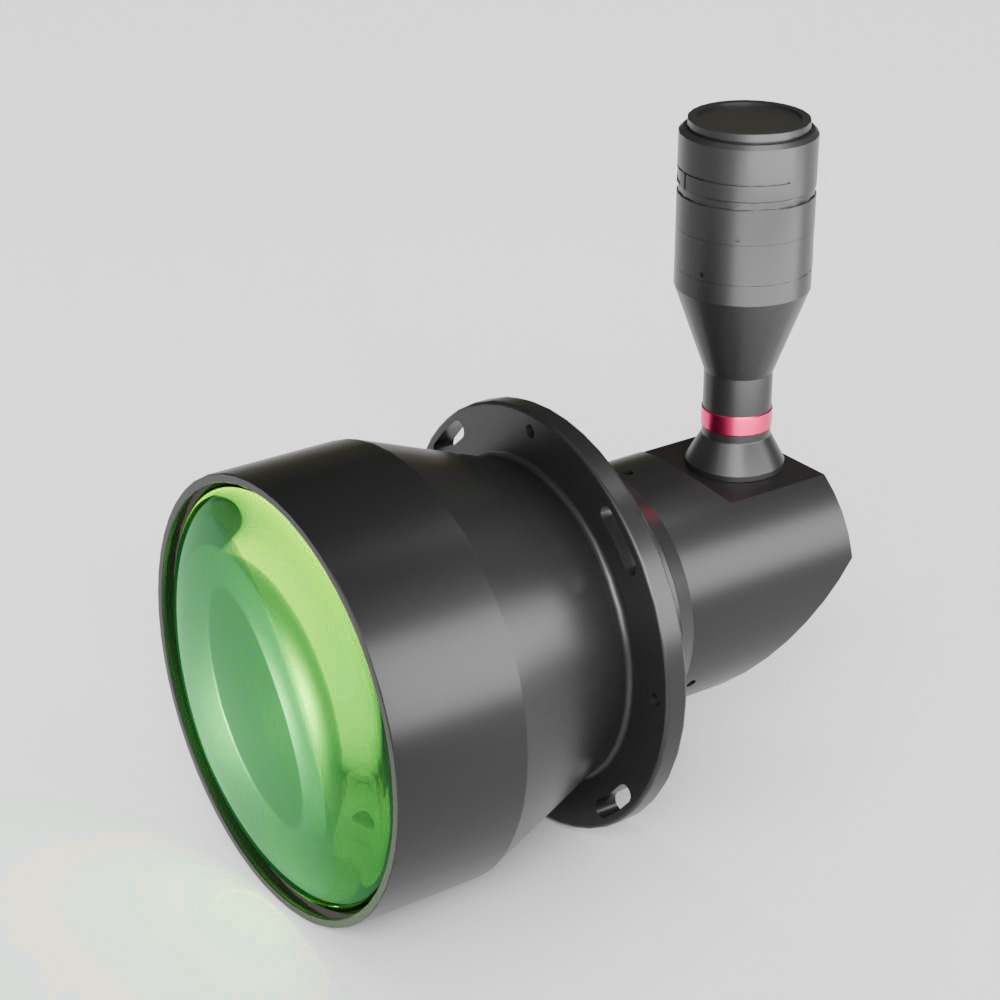

39mm 0.229X 90° Matrix Bi-Telecentric Lenses | DTCM71M-170-T90-M58-AL COOLENS®

Model NO.    :

DTCM71M-170-T90-M58-AL

Image Circle: 39mm
Magnification: 0.229X
FOV: 170mm
WD: 318±5mm
NA: 0.229
Mount: M58
Type: 90° Matrix Bi-Telecentric Lenses

Model No. DTCM71M-170-T90-M58-AL Object Field of View(Φmm) 170
Image Circle Diameter (Φmm) 39 Best Aperture(f/#) 6.5
Magnification(x) 0.229 MTF30 (lp/mm) >125
Working Distance(mm) 318±5 Depth of Field(mm) ±8.4@F11
NA 0.229 Distortion Typical(% max) <0.1
Type 90° Matrix Bi-Telecentric Lenses Telecentricity Typical (°max) <0.1
Length of I/O(mm) 819±5
Mechanical Specifications
Mount M58
Length (mm) 296

Dimensions
