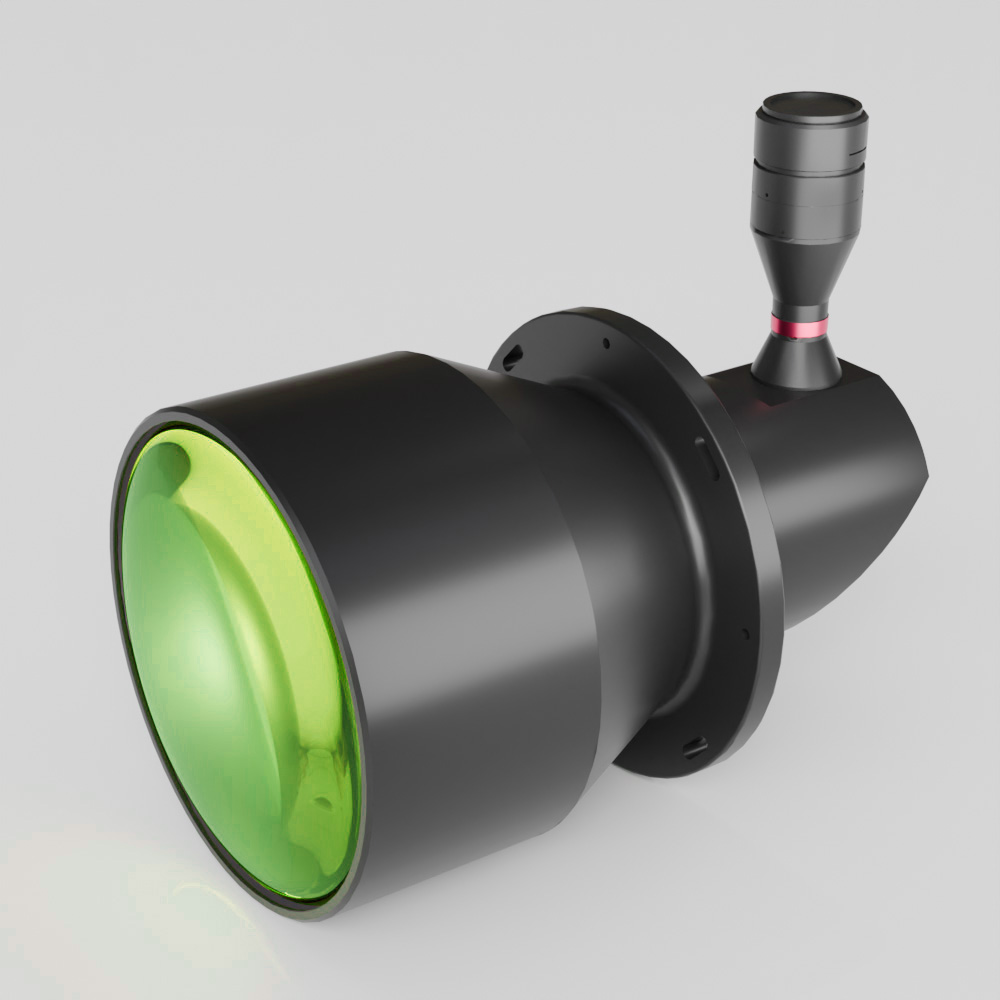

39mm 0.163X 90° Matrix Bi-Telecentric Lenses | DTCM71M-240H-T90-M58-AL COOLENS®
Model NO. :
DTCM71M-240H-T90-M58-AL
Image Circle: 39mm
Magnification: 0.163X
FOV: 240mm
WD: 410±6mm
NA: 0.163
Mount: M58
Type: 90° Matrix Bi-Telecentric Lenses
Model No. | DTCM71M-240H-T90-M58-AL | Object Field of View(Φmm) | 240 | ||||
Image Circle Diameter (Φmm) | 39 | Best Aperture(f/#) | 7.5 | ||||
Magnification(x) | 0.163 | MTF30 (lp/mm) | >130 | ||||
Working Distance(mm) | 410±6 | Depth of Field(mm) | ±24.3@F16 | ||||
NA | 0.163 | Distortion Typical(% max) | <0.1 | ||||
Type | 90° Matrix Bi-Telecentric Lenses | Telecentricity Typical (°max) | <0.1 | ||||
Length of I/O(mm) | 1080±6 | ||||||

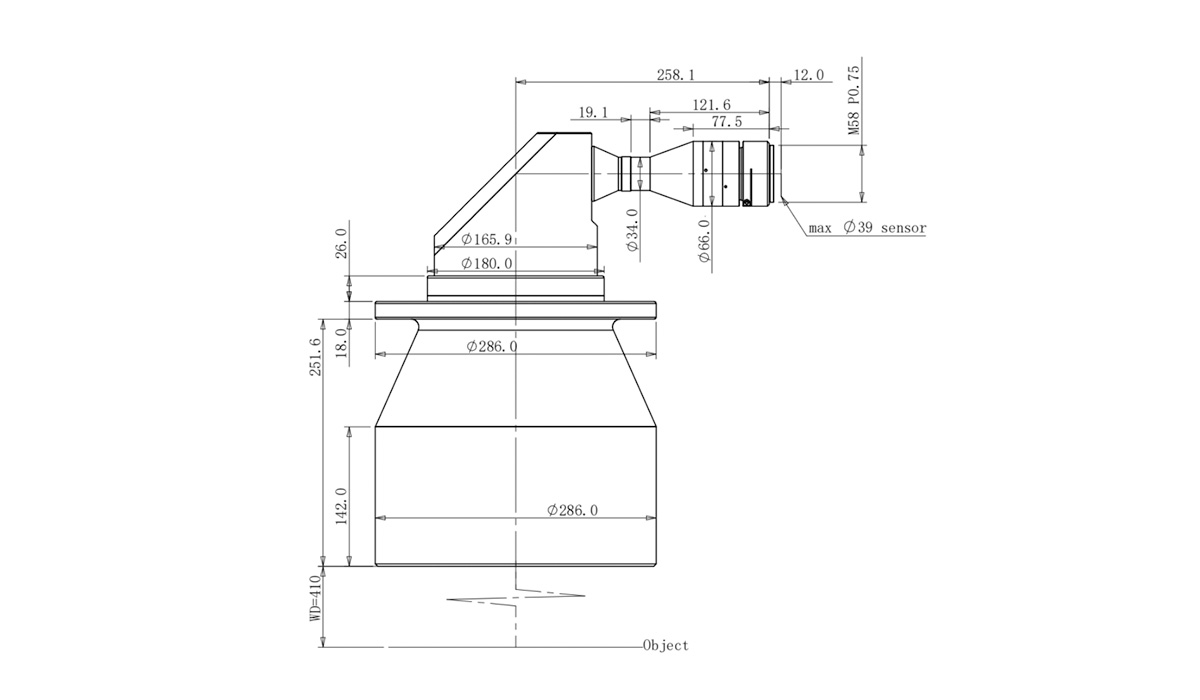

Mechanical Specifications | |||||||
Mount | M58 | ||||||
Length (mm) | 384.9 |
